2.3 Motherboard rear and audio connections

2.3.1 Rear I/O connection

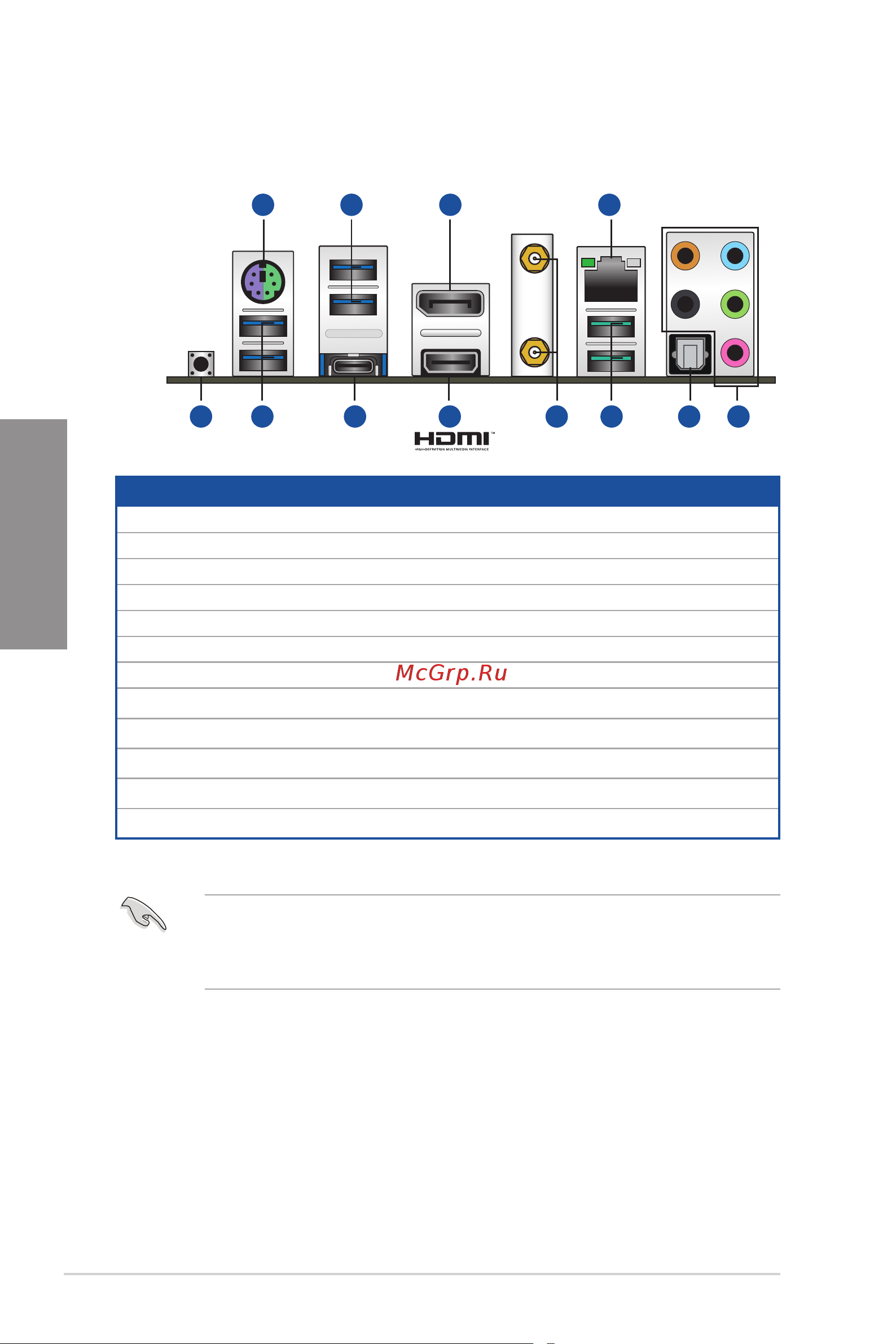

* and ** : Refer to the tables on the next page for LAN port LEDs, and audio port definitions.

Rear panel connectors

1. PS/2 mouse/keyboard combo port

2. USB 3.2 Gen 1 Type-A ports 34

3. DisplayPort

4. Intel

I225-V 2.5Gb Ethernet port*

5. BIOS FlashBack

button

6. USB 3.2 Gen 1 Type-A ports 56

7. USB Type-C

port

8. HDMI™ port

9. Wi-Fi 802.11 a/b/g/n/ac/ax, Bluetooth V5.1

10. USB 3.2 Gen 2 Type-A ports 12

11. Optical S/PDIF OUT port

12. Audio jacks**

We strongly recommend that you connect your devices to ports with matching data

transfer rate. Please connect your USB 3.2 Gen 1 devices to USB 3.2 Gen 1 ports and

your USB 3.2 Gen 2 devices to USB 3.2 Gen 2 ports for faster and better performance for

your devices.

1 2 3 4

1211106 9875
