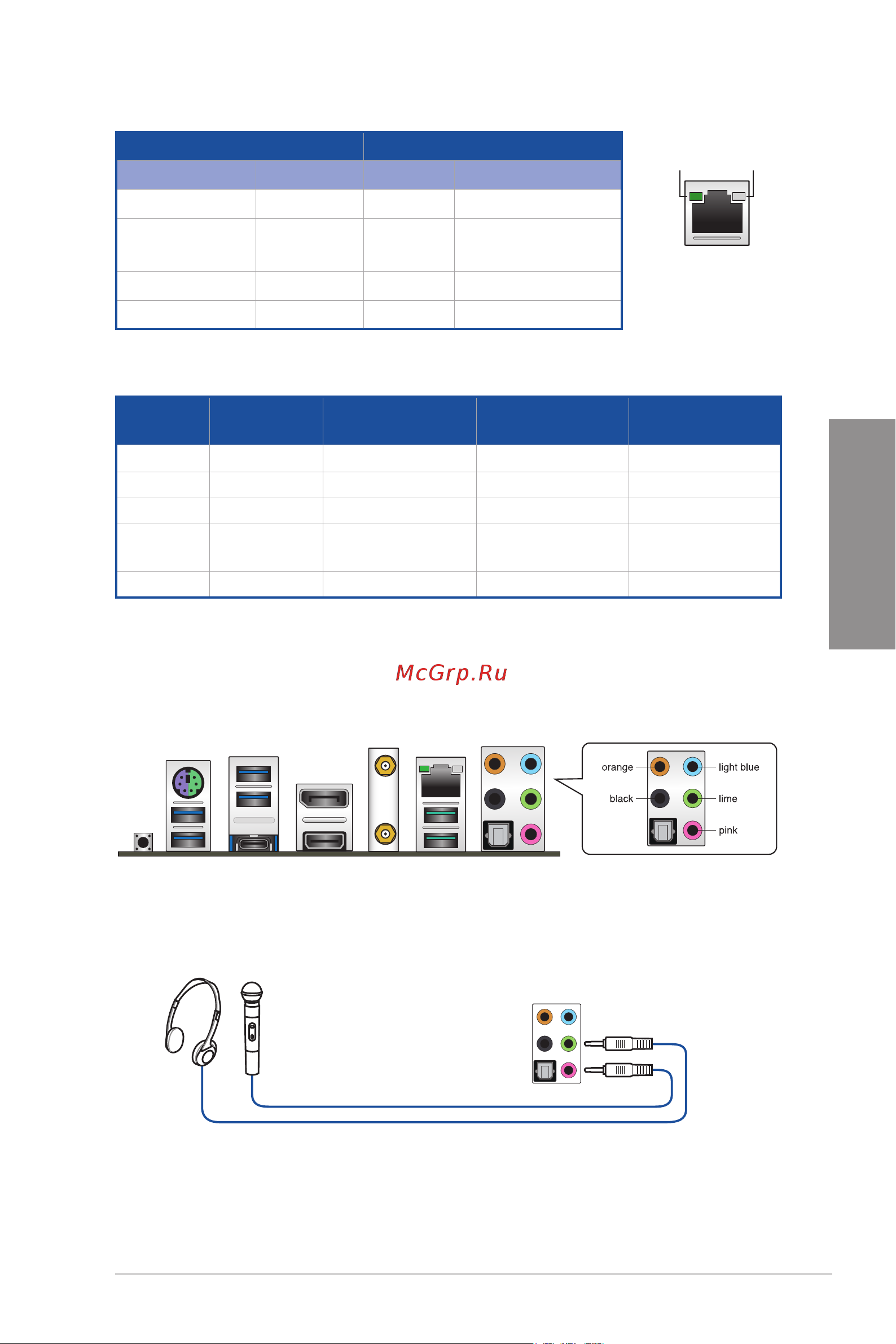

TUF GAMING X570-PRO (WI-FI)
2-17
Chapter 2
** Audio 2, 4, 5.1 or 7.1-channel configuration
Port
Headset
2-channel
4-channel 5.1-channel 7.1-channel
Light Blue Line In Line In Line In Side Speaker Out
Lime Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Mic In Mic In
Orange – – Center/Sub
woofer
Center/Sub
woofer
Black – Rear Speaker Out Rear Speaker Out Rear Speaker Out
* Ethernet port LED indications
2.3.2 Audio I/O connections
Audio I/O ports
Connect to Headphone and Mic
ACT/LINK
LED
SPEED
LED
LAN port
Activity Link LED Speed LED
Status Description Status Description
OFF No link OFF
No link
GREEN Blinking Data activity OFF
100 Mbps / 10 Mbps
connection
GREEN Blinking Data activity GREEN
2.5 Gbps connection
GREEN Blinking Data activity ORANGE
1 Gbps connection
