Aten CS1922M [18/64] Cs1922m rear view

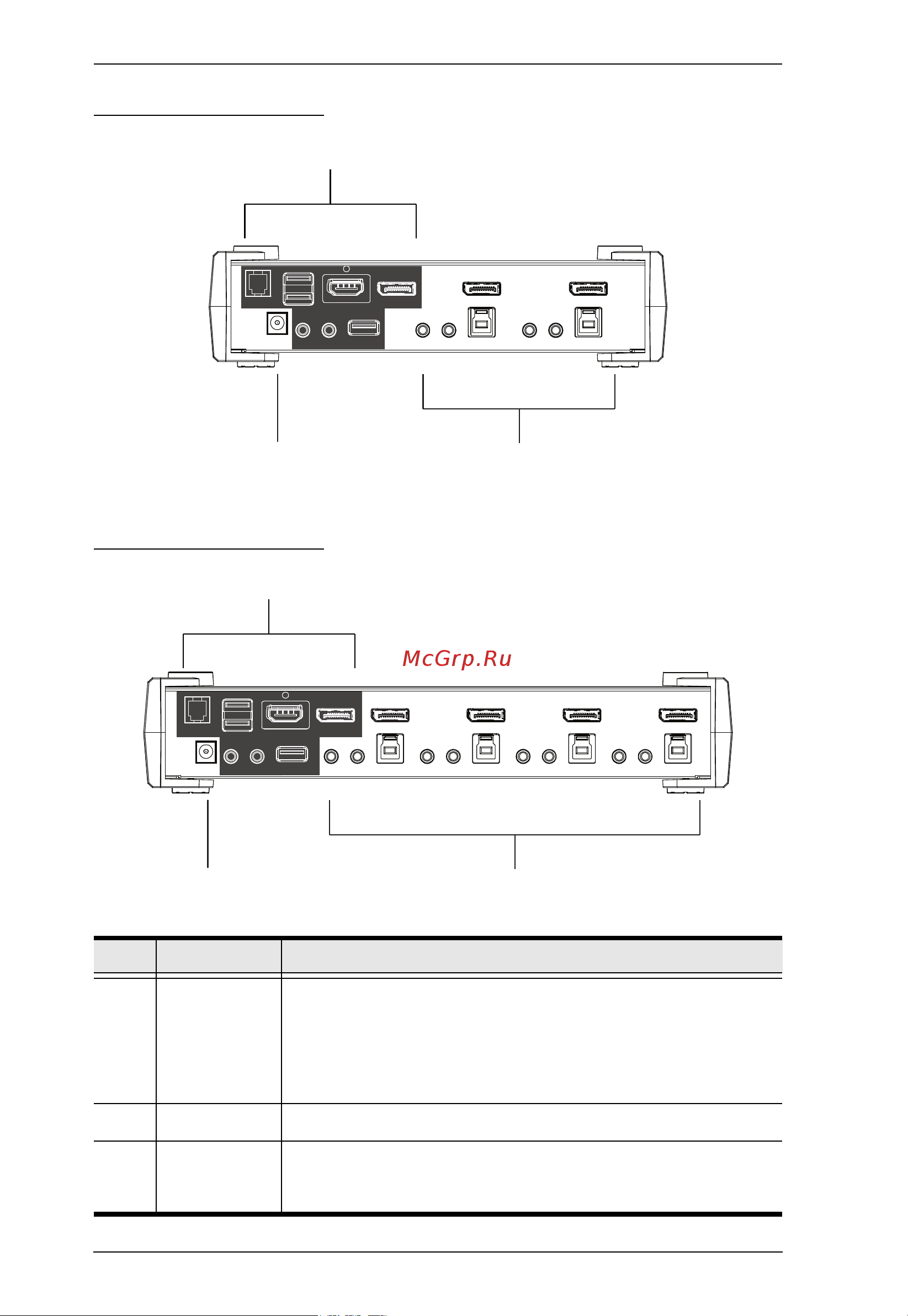

CS1922M / CS1924M User Manual

CS1922M Rear View

CS1924M Rear View

No. Component Description

1 console ports The cables from your DisplayPort monitor, HDMI monitor, USB

keyboard, USB mouse, speakers, microphone, and USB peripherals*

plug in here. In addition, there is an RJ-11 port for serial control. Each

connector is marked with an appropriate icon to indicate its use.

Note: This USB 3.1 Gen 1 port features 5 Gbps data transfer rates for

compatible USB peripherals.

2 power jack The power adapter cable plugs into this jack.

3 KVM ports The cables that link the switch to your computers plug in here. Each

KVM port section is comprised of a microphone jack, speaker jack,

USB Type-B socket and a DisplayPort connector.
