Chapter 3. Basic Operation

Splitter Mode

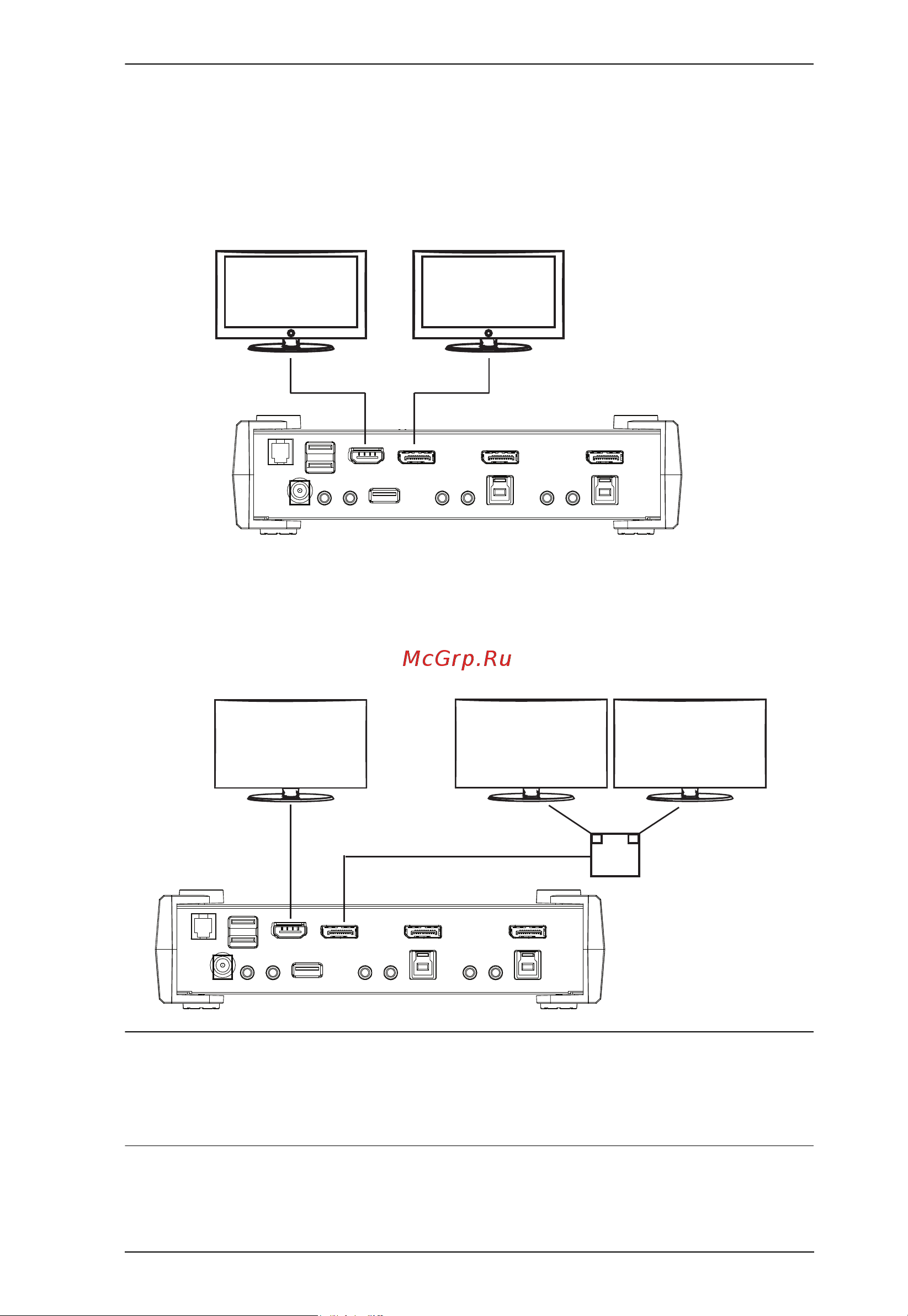

Splitter mode displays the same video content on two monitors allowing the

source to be duplicated.

With an external MST hub (not included) you can copy video content to one

HDMI and two DisplayPort monitors, as shown below.

Note: In Splitter mode, the optimum resolution for each output is 4K DCI @

60 Hz. If you connect an external MST hub to the CS1922M / CS1924M's

DisplayPort port, the video resolution for the two monitors depends on the

bandwidth shared between the displays.

Multi Stream

Transport Hub
