Aten CN8600 [103/167] Admin utility gui

Chapter 5. The Client Viewer

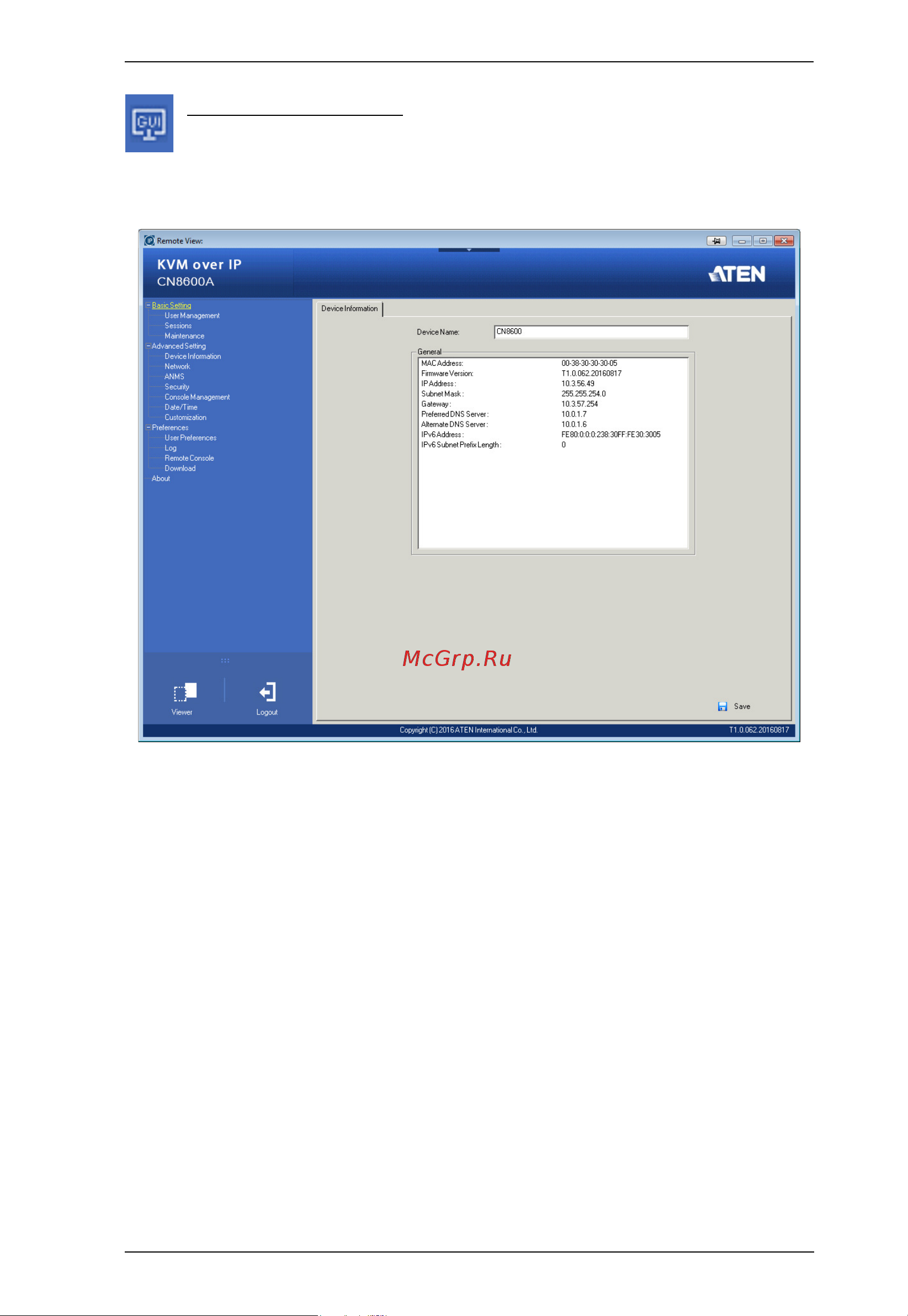

Admin Utility (GUI)

Clicking the Admin Utility icon brings up a window that allows you to

configure the CN8600 via Viewer based GUI with the web browser

administrative functionalities:

The sidebar menu items available on this page are based upon the user’s

permissions. For information on how to use these functions, see Configuration,

page 19 for details.
