CN8600 User Manual
8
Components

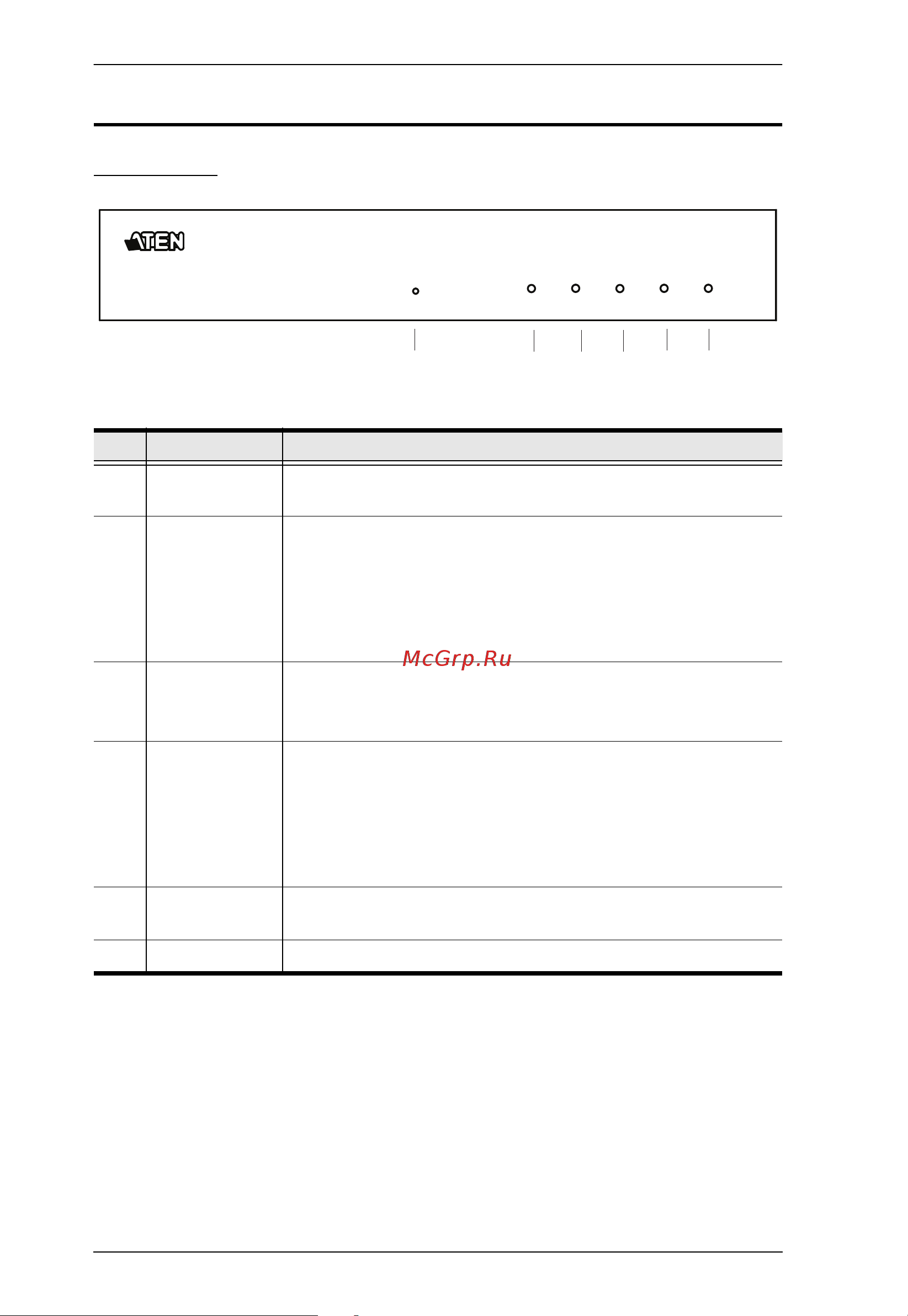

Front View
No. Component Description
1 reset button Press the reset button for more than three (3) seconds to
revert to factory settings.
2 LAN 2 10/100/
1000 LED
Lights ORANGE to indicate that the CN8600 is transmitting at
10 Mbps on this port.
Lights ORANGE + GREEN to indicate that the CN8600 is
transmitting at 100 Mbps on this port.
Lights GREEN to indicate that the CN8600 is transmitting at
1000 Mbps on this port.
3 remote login
LED
Lights are off when there is no active remote connection.
Flashes GREEN at steady intervals to indicate that a Client
program has logged into the CN8600 from the remote console.
4 LAN 1 10/100/
1000 LED
Lights ORANGE to indicate that the CN8600 is transmitting at
10 Mbps on this port.
Lights ORANGE + GREEN to indicate that the CN8600 is
transmitting at 100 Mbps on this port.
Lights GREEN to indicate that the CN8600 is transmitting at
1000 Mbps on this port.
5 console lock
LED
Lights steady GREEN to indicate that another access mode is
operating, depending on the active configuration.
6 power LED Lights GREEN when the CN8600 is powered up.
1
4 5
32
6
