Aten CN8600 [163/167] Sun linux

Appendix

149

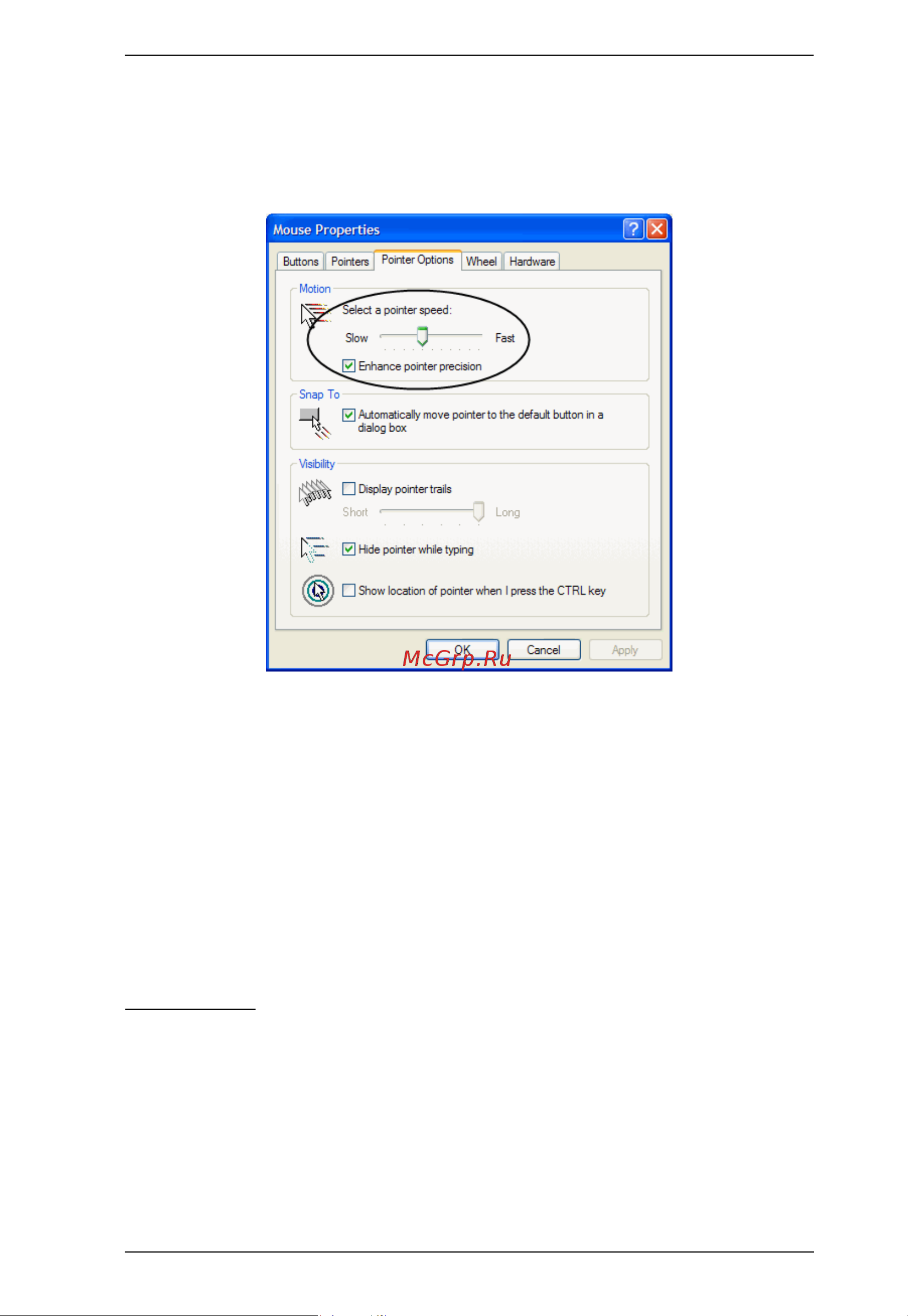

b) Click the Pointer Options tab

c) Set the mouse speed to the middle position (6 units in from the left)

d) Disable Enhance Pointer Precision

3. Windows ME:

Set the mouse speed to the middle position; disable mouse acceleration

(click Advanced to get the dialog box for this).

4. Windows NT / Windows 98 / Windows 95:

Set the mouse speed to the slowest position.

Sun / Linux

Open a terminal session and issue the following command:

Sun: xset m 1

Linux: xset m 0

xset m 1

(If one does not help, try the other.)
