Chapter 1. Introduction
9

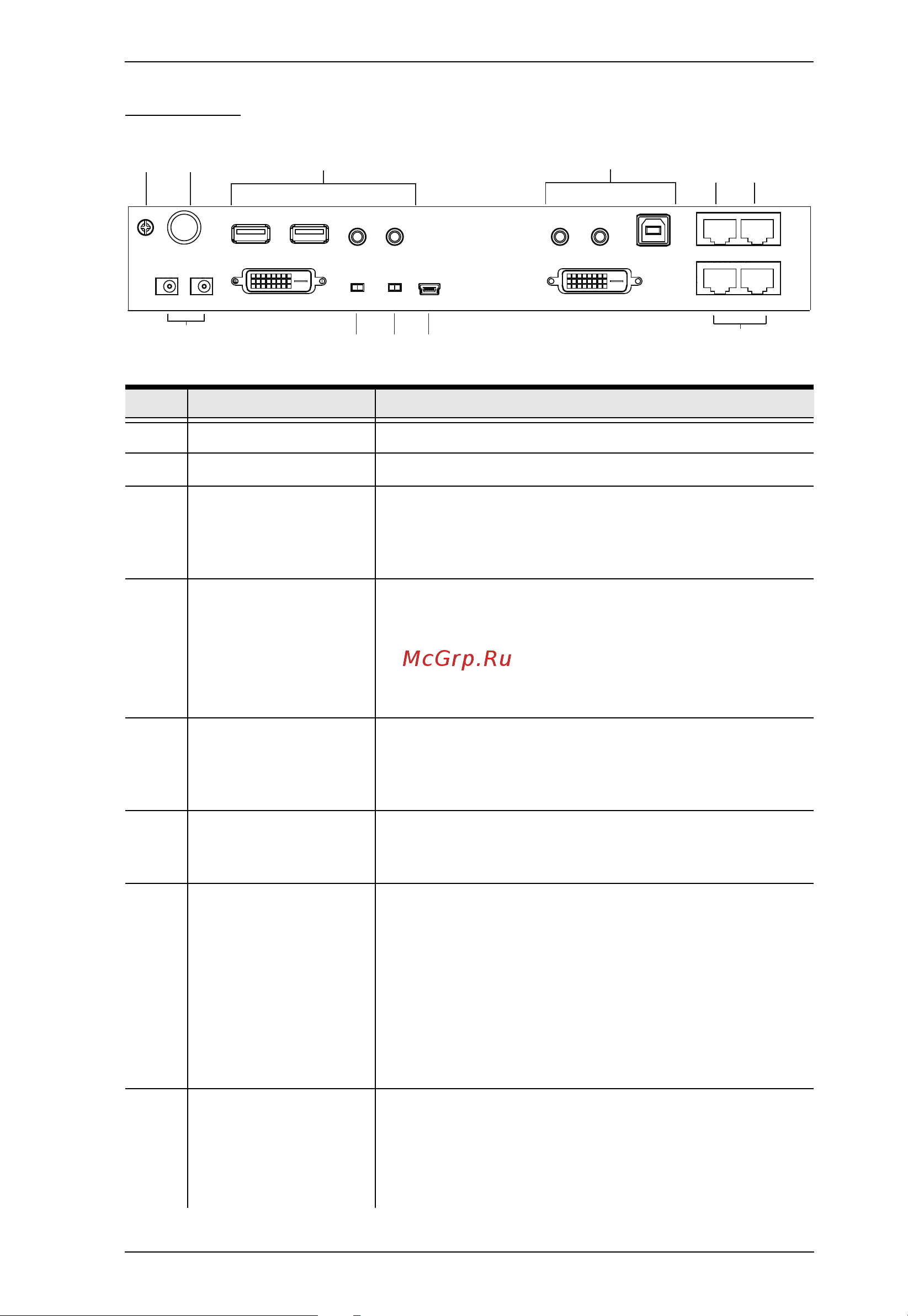

Rear View
No. Component Description
1 grounding terminal The wire used to ground the unit connects here.
2 control port Reserved.
3 local console port Connect the cable for the local console (USB
keyboard, DVI monitor, USB mouse, microphone and
speakers) to this port. Each connector is color coded
and marked with an appropriate icon.
4 PC/KVM port Use the KVM cable provided with this package that
links the CN8600 to your PC / Server for this port.
Connect the DVI video display, keyboard/mouse,
microphone and speakers to the server or KVM switch
that you are installing. Each connector is color coded
and marked with an appropriate icon.
5 PON port Use a Cat 5 cable to connect this port directly to the
PON port of an ATEN PDU. A RJ45-to-Serial adapter
(SA0142) is required if the PON port is a DB-9 type
port.
6 serial port Use a Cat 5 cable to connect this port to another
network device, such as a modem. Refer to Serial Port
Pin Assignment on page 136 for the pin definition.
7 power jacks Plug the power adapter provided with this package into
an AC power source, then plug the power adapter
cable into any power jack.
Plug another power adapter into an AC power source,
then plug the power cable into the other CN8600
power jack.
Note: Dual power operation is optional – the second
power source is for back-up; a second power adapter
requires a separate purchase.
8 console lock switch Use this switch to lock the console so that remote
access is disabled (view only) and only the local
console can operate the CN8600.
When set to unlock, the CN8600 grants access
depending on the configuration stored.
7
8
6
3
4
2
5
9
1
11
10
