Aten CN8600 [41/167] Ping host

Chapter 4. Configuration

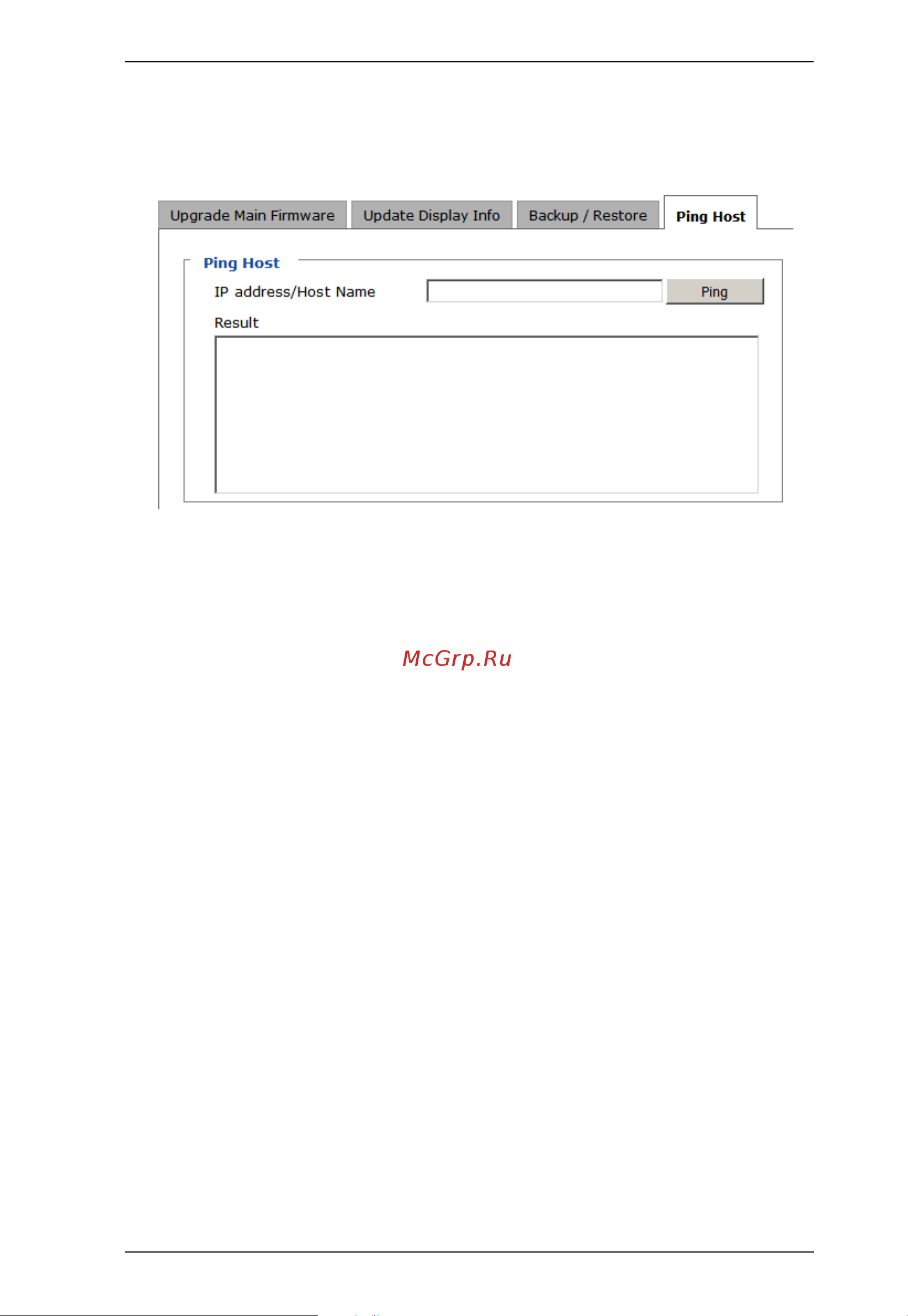

Ping Host

The Ping Host section enables you to ping an IP address. Enter the IP address/

Hostname then click Ping.

You can also enter Commands in the IP address/Host Name text bar.

Command: tc help

Result: Receive help information for commands.

Command: tc get

Result: Get current configuration.

Command: tc enablesslv2 [options]

Result:

0 - disable SSLv2

1 - enable SSLv2

Command: tc enablerc4 [options]

Result:

0 - disable RC4 cipher

1 - enable RC4 cipher

Command: tc setsslcipher [options]

0 - uses LOW, MEDIUM and HIGH ciphers

1 - uses MEDIUM and HIGH ciphers

2 - uses HIGH ciphers only
