CN8600 User Manual
92
The Windows Client Connection Screen

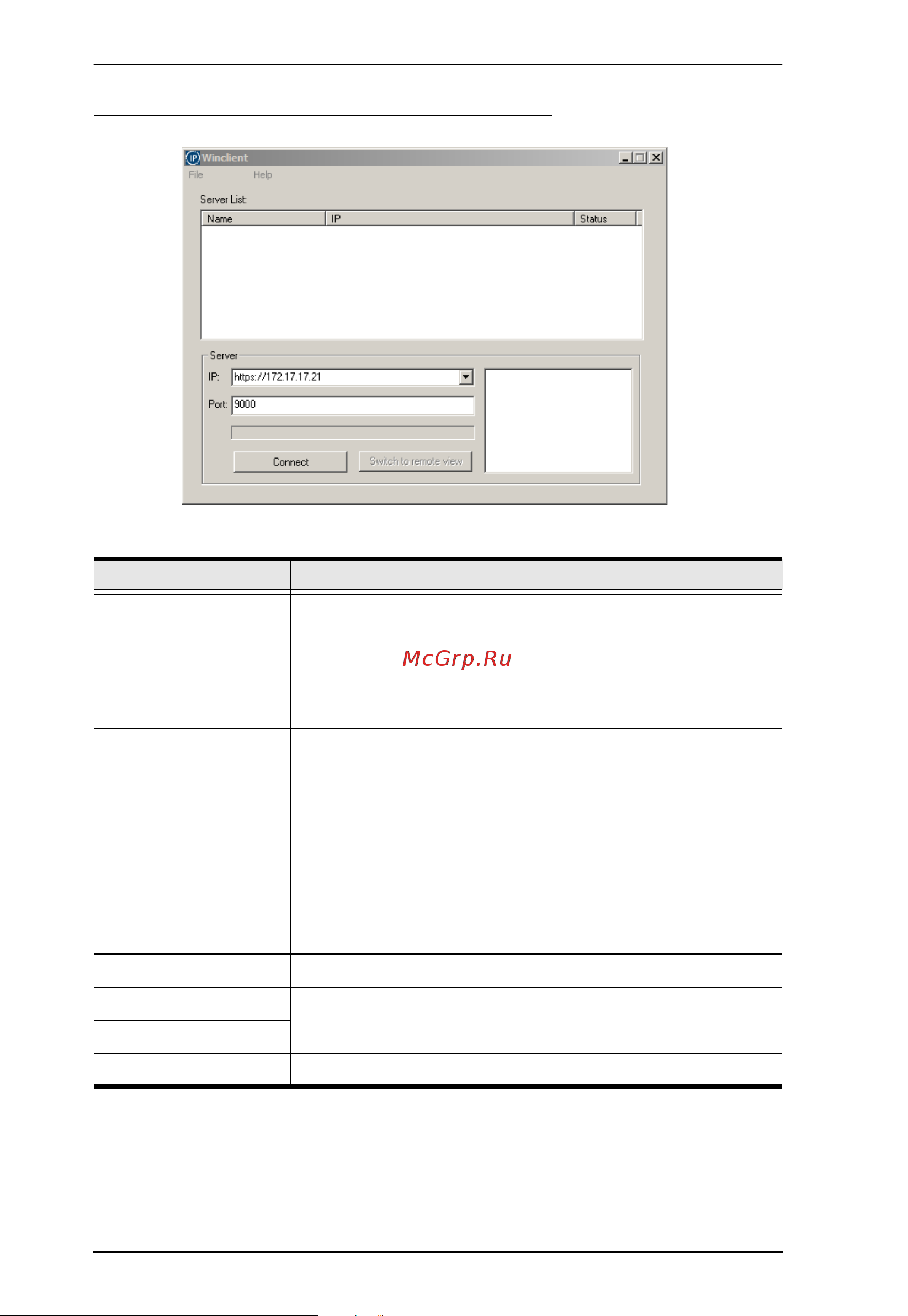

A description of the Connection Screen is given in the following table:
Item Description
Server List
Each time the CN8600 Windows Client program is run, it
searches the user's local LAN segment for CN8600 units, and
lists whichever ones it finds in this box. If you want to connect
to one of these units, select it, then click Login. When you
have finished with your session, Click Logout to end the
connection.
Server This area is used when you want to connect to a CN8600 at a
remote location. If the IP address that appears is not the one
you want, or if there is no entry at all, key in the IP address
you want.
Next, key in the Port number in the Port field. If you don't
know the Port number, contact the Administrator.
When the IP address and Port number for the unit you wish to
connect to have been specified, click Login to start the
connection. When you have finished with your session, Click
Logout to end the connection.
Login Starts the connection to the CN8600.
Logout These buttons become active once you log into the CN8600.
See page 93 for details.
Remote View
Message List This shows the current status of the server connection.
