ATEN Control System User Manual
118

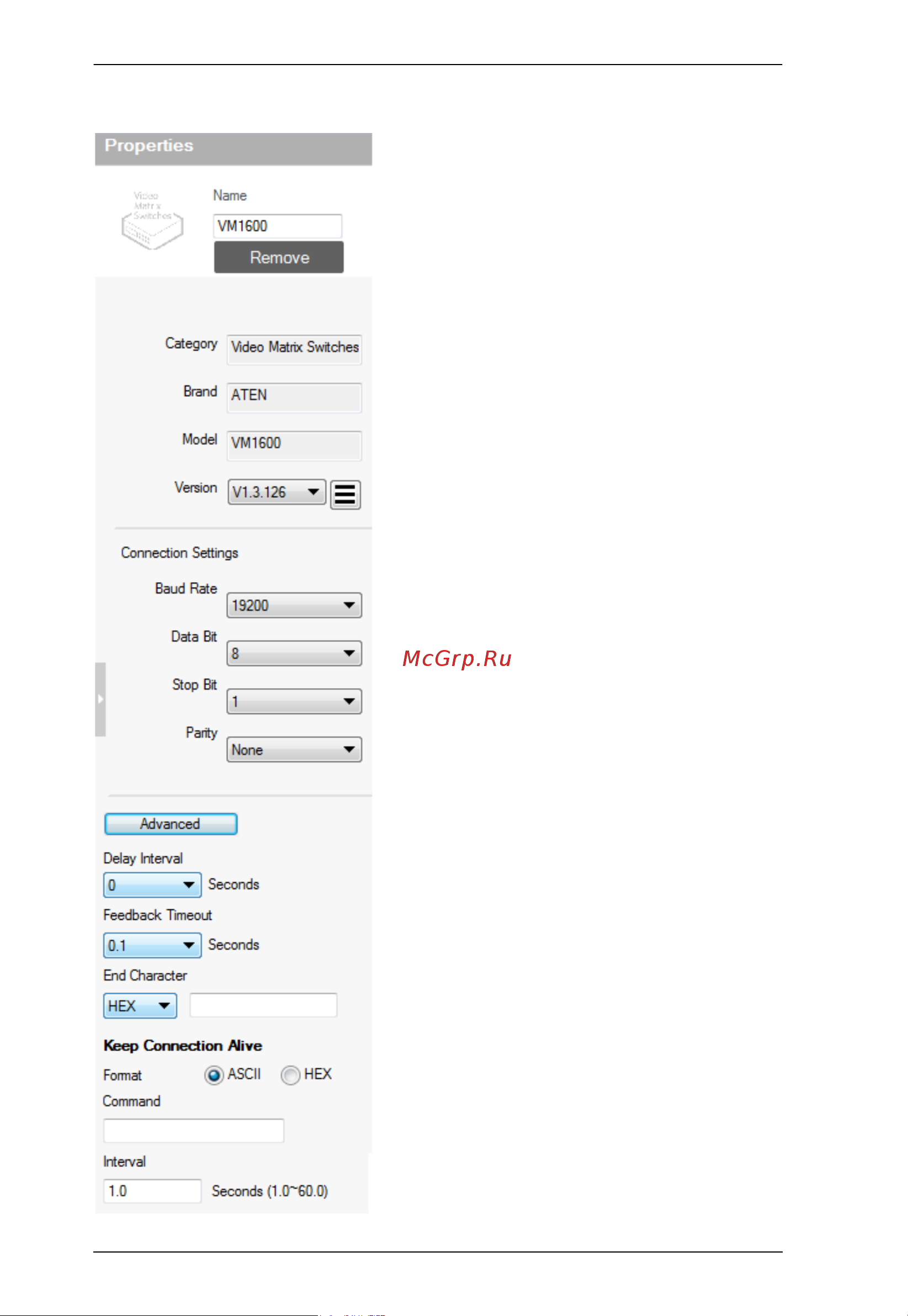

Serial Device Properties
Click a serial device from the Device
Configuration list to configure its properties.
Name: Displays the device model.
Add Device: Use this button to add
devices. For details, see Adding Non-KNX-
Compliant Devices to ATEN Configurator,
page 112.
Category: Displays the category of the
selected device.
Brand: Displays the brand of the selected
device.
Model: Displays the model of the selected
device.
Version: Shows the firmware version
selected for the device. Use the drop-down
menu to select a different firmware version.
Click the menu box next to the version
number to open a PDF with the version
history. The version history and different
versions for a device can be manually
added/updated via the Database Generator
(see step 3 of Editing / Adding a New
Device, page 248).
Connection Settings: Click the drop-
down lists to configure the baud rate, data
bit, stop bit, parity settings, and flow control
for the selected serial device.
Advance Settings: Click Advanced to
display the following settings.
Delay Interval: Sets a time delay for each
command before they are sent to the device.
Feedback Timeout: Sets the maximum
interval that the controller allows in between
parts of a feedback message. The controller
uses this value to identify the end of a
message.
