Chapter 5. ATEN Database Generator

269

ATEN Library

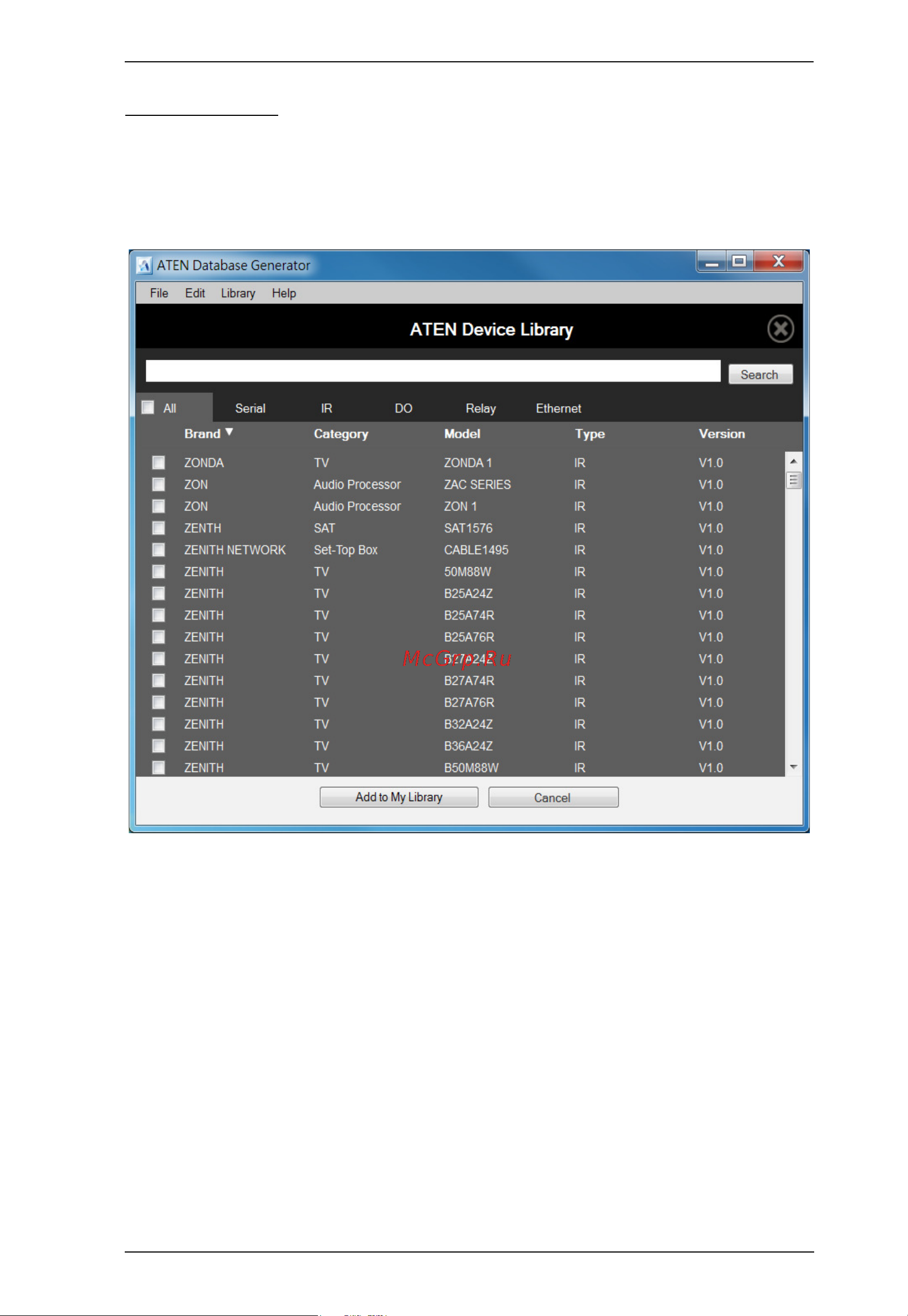

The ATEN Library can be accessed fromthe project bar and provides the

complete list of hardware devices available in the database. The You can add

any device in the ATEN Library to My Library. Once a device is added to My

Library, the device settings can be edited as needed.

 Use the check boxes to select devices to add to My Library. Check All to

select all devices in the list.

 Key in word strings then click Search to find a device.

 Click All, Serial, DO, IR, Relay or Ethernet to filter the device list by

type.

 Click Brand, Category, Model, Type or Version to sort the devices.

 Click Add to My Library to add the selected devices to My Library.

 Click Cancel to return to My Library.
