ATEN Control System User Manual
122

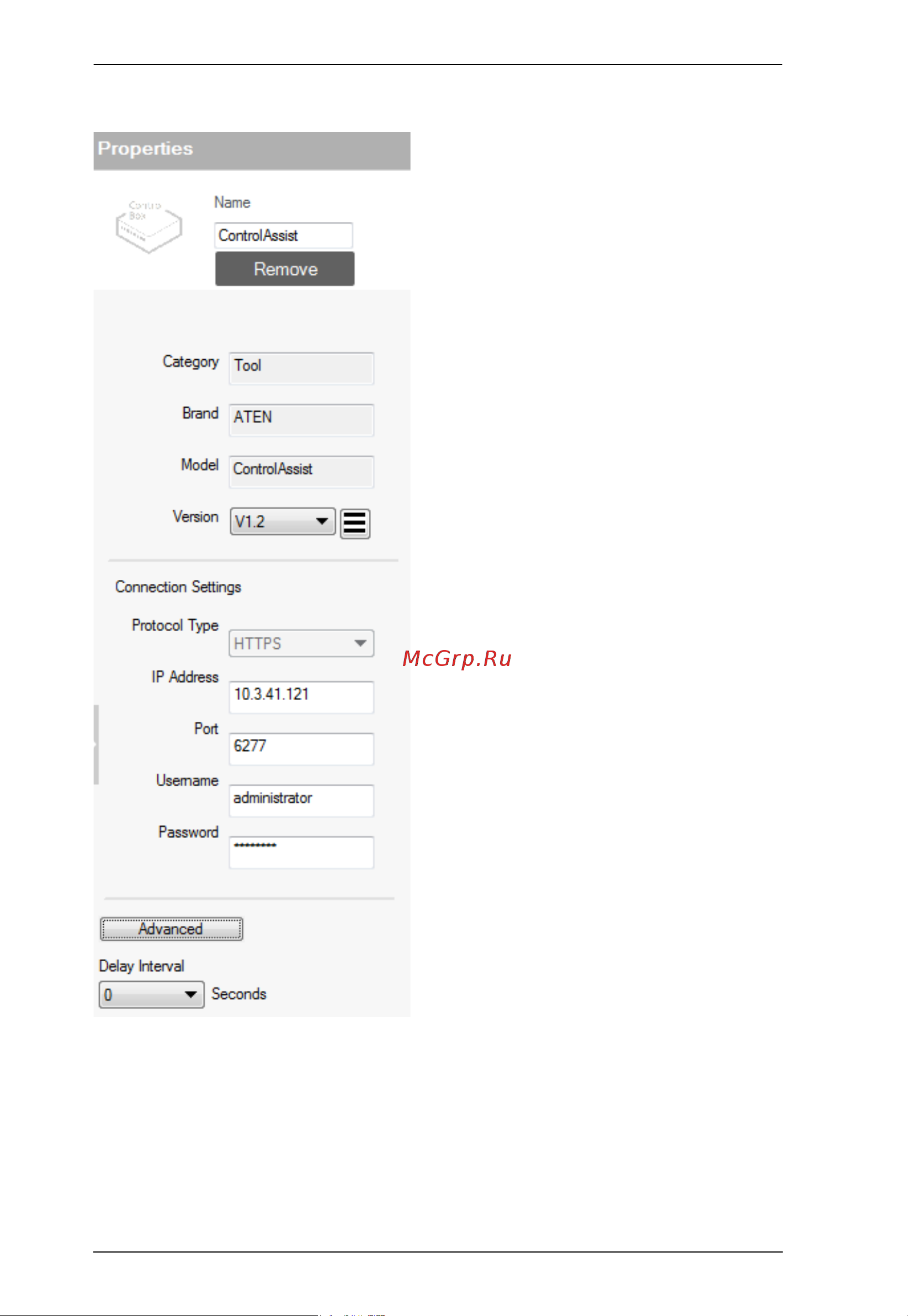

Ethernet Device Properties
Click an Ethernet device to configure its
properties.
Name: Displays the device model.
Add Device: Use this button to add
devices. For details, see Adding Non-
KNX-Compliant Devices to ATEN
Configurator, page 112.
Category: Displays the category of the
selected device.
Brand: Displays the brand of the
selected device.
Model: Displays the model of the
selected device.
Version: Shows the firmware version
selected for the device. Use the drop-
down menu to select a different firmware
version. Click the menu box next to the
version number to open a PDF with the
version history. The version history and
different versions for a device can be
manually added/updated via the
Database Generator (see step 3 of
Editing / Adding a New Device,
page 248).
