Chapter 2. Hardware Setup and Panel Oper-

ATEN Expansion Box

ATEN Expansion Boxes (sold separately) provide additional ports for a

flexible expansion of the ATEN Control System. This allows you to add and

control additional devices in an environment when more devices are required.

With the advantage of an Ethernet-based connection, the expansion boxes are

easily connected to the ATEN controller via a LAN connection from a variety

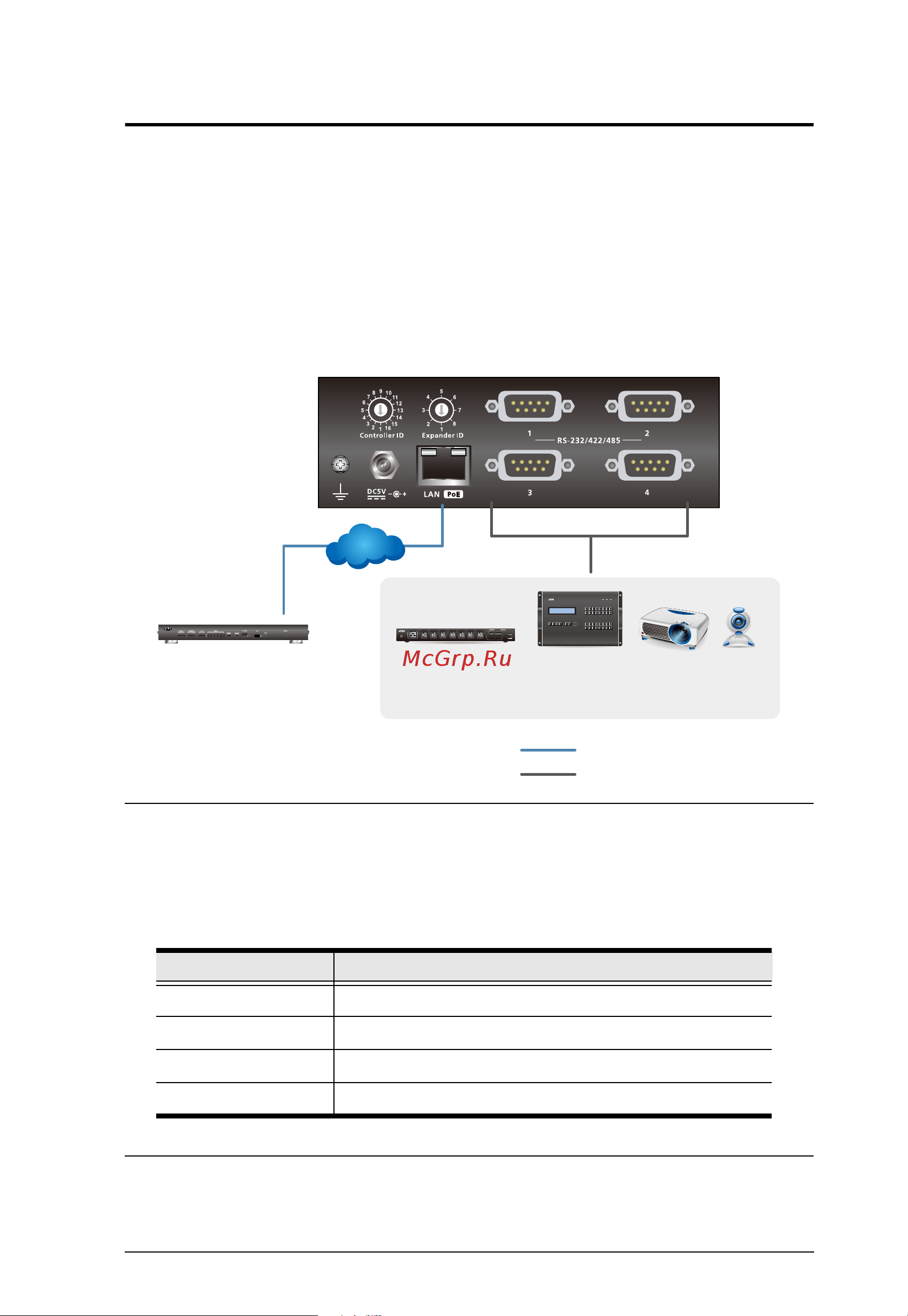

of locations across a network. The diagram below provides a setup example

using the VK224, a 4-Port Serial Expansion Box.

Note:

 To add and configure ATEN Expansion Boxes, see Left Sidebar, page 109

and Expansion Box (Expander), page 117.

 The available Expansion Box models include:

Model Description

VK224 4-Port Serial Expansion

VK236 6-Port IR/Serial Expansion Box

VK248 8-Channel Relay Expansion Box

VK258 8-Channel Digital I/O Expansion Box

Control Box

Serial Devices

Network

SELECT

PDU

CURRENT

OUTLET

CURRENT

ADDRESS

SENSOR

OUTLET STATUS

Ethernet

Serial

VK224 (Rear)

Power Distribution

Unit

Video Matrix Projector Camera
