ATEN Control System User Manual
156
Images
The Properties for an image provide options to change and import images to
the page. Images can be layered with other objects so that they can be placed
as a background or as highlights for buttons (see Layering Images, page 157).
You can Group, Order, Align, Make Same Size or Space Evenly from the
Object menu.
Note: For imported images, make sure the file names contain English alphabets
and/or numerals only.

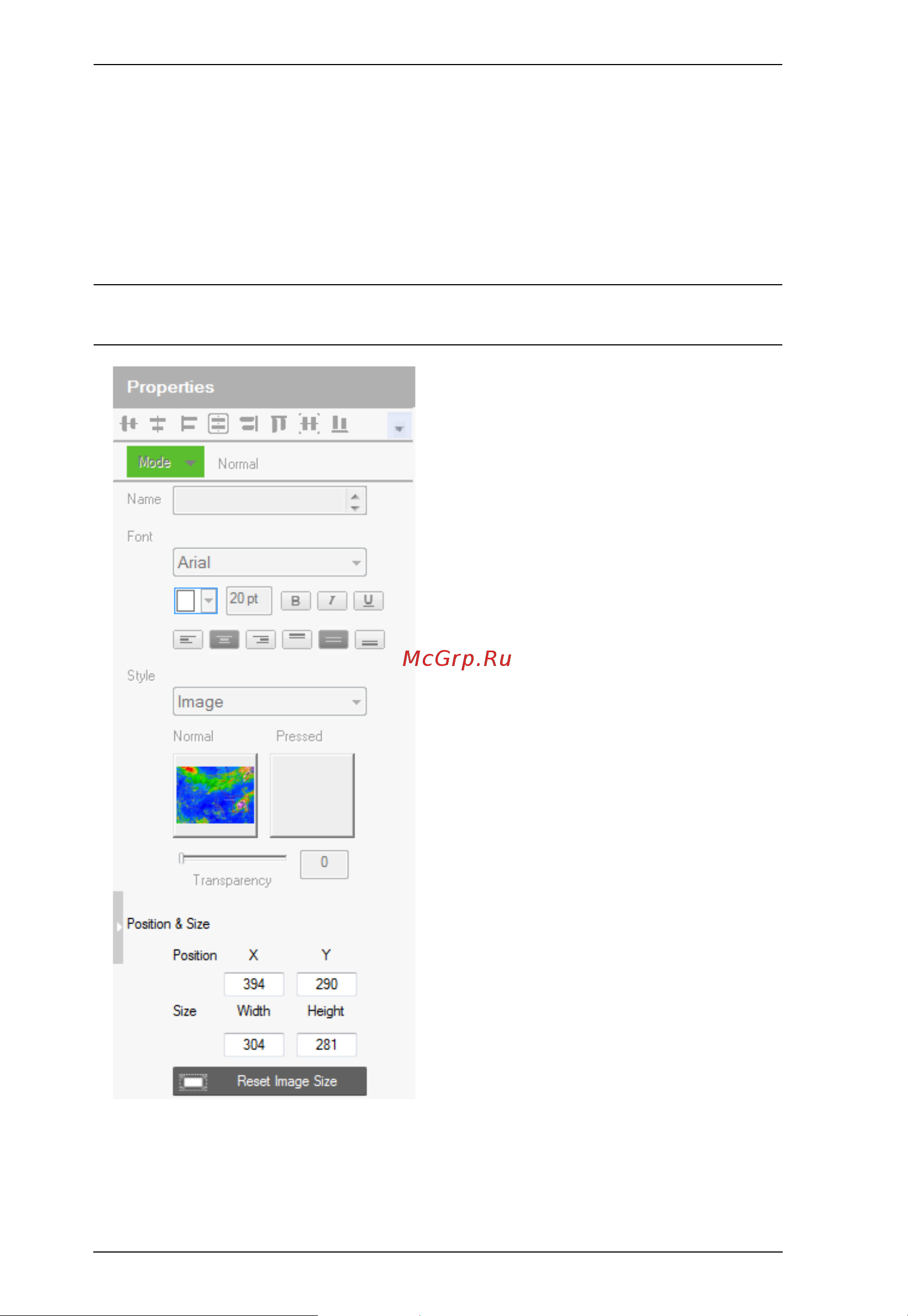

Style – shows the image selected.
Click inside the box to import an
image (*.png,*.jpg,*.jpeg,*.bmp) to
the page.
Transparency – enter a number (0-
100) or use the slider-bar to set the
transparency of the image selected.
Position and Size – X and Y position
the image at the coordinates entered.
Width and Height set the size of the
image.
Reset Image Size – resets the image
size.
