User Instructions
©American DJ® - www.americandj.com - Duo Scan RG Instruction Manual Page 2
Unpacking: Thank you for purchasing the Duo Scan RG by Ameri-
can DJ®. Every Duo Scan RG has been thoroughly tested and has
been shipped in perfect operating condition. Carefully check the ship-
ping carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your xture for any
damage and be sure all equipment necessary to operate the unit has
arrived intact. In the event damage has been found or parts are miss-
ing, please contact our toll free customer support number for further
instructions. Please do not return this unit to your dealer without con-
tacting customer support rst.

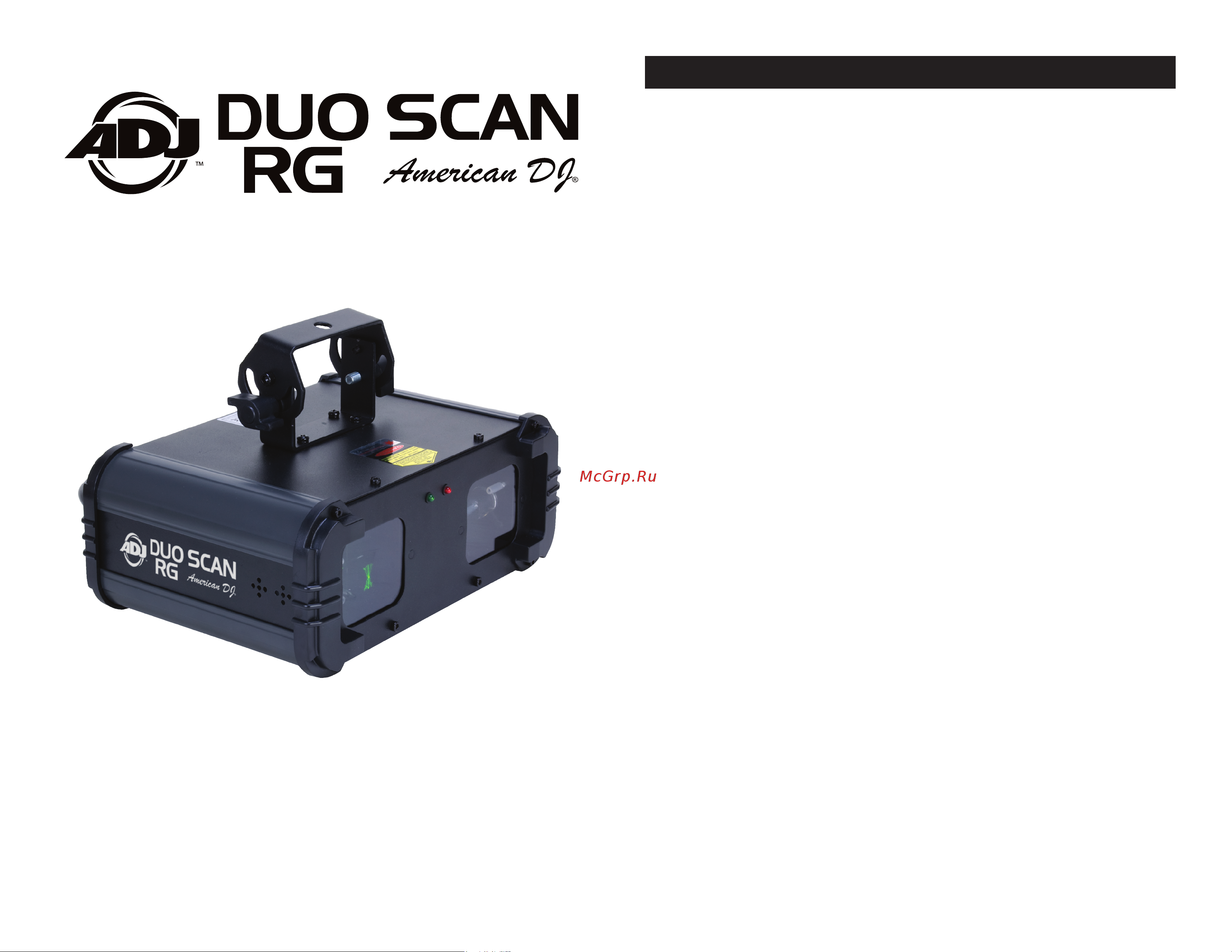

Introduction: The Duo Scan RG is an incredible ten channel DMX
intelligent, green and red laser fixture. The red and green lasers create
an incredible laser show. The Duo Scan RG can operate as a stand
alone fixture, or in a Master/Slave configuration. The Duo Scan RG has
three operating modes; sound active mode, show mode, or it can be
controlled via DMX. For best results use fog or special effects smoke
to enhance the beams projections.
Customer Support: American DJ® provides a toll free customer sup-
port line, to provide set up help and to answer any question should
you encounter problems during your set up or initial operation. You
may also visit us on the web at www.americandj.com for any com-
ments or suggestions. For service related issue please contact Ameri-
can DJ®. Service Hours are Monday through Friday 8:00 a.m. to 4:30
p.m. Pacic Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2941
E-mail: support@americandj.com
To purchase parts online visit http://parts.americandj.com
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
American DJ customer support.
PLEASE recycle the shipping carton whenever possible.
Duo Scan RG General Introduction
5/11
