©American DJ® - www.americandj.com - Duo Scan RG Instruction Manual Page 12©American DJ® - www.americandj.com - Duo Scan RG Instruction Manual Page 11
System Menu: When conrming your setting press ENTER
and then hold MENU for at least 2-3 seconds, or you can
wait 1 minute for automatic setup. To exit without making
any adjustments press the MENU button.
ADDR - DMX Address Setting.
1. Press the MENU button until “ADDR” is displayed, press ENTER.
2. “X” will now be displayed, “X” represents the displayed address.
Press the UP or DOWN buttons to nd your desired address.
3. Press ENTER to conrm, then connect your DMX controller.
NOTE: If after you connect your DMX controller the unit does not
fall into DMX mode, press and hold the MENU button for at least 3
seconds.
SLND - This will let you set unit as a master or slave in a
master/slave conguration.
1. Press the MENU button until “SLND” is displayed, press ENTER.
Either “SL 1” or “SL 2” will be displayed.
2. Press the UP or DOWN buttons until your desired setting is dis-
played, press ENTER and then hold MENU for at least 2-3 seconds
to conm.
NOTE: In a Master/Slave conguration you can make one xture the
Master and then set the next xture to “SL 2”, the xtures will now
have contrast movement to each other.
SHND: SH 0 - SH5- Show modes 0-5 (Factory programs).
Show mode can run with or without sound active mode
on. With sound active mode on, the shows will tend to run
faster.
1. Press the MENU button until “SHND” is displayed, press ENTER.
2. “Sh X” will now be displayed, “X” representing a number between
0-5. Programs 1-5 are preprogrammed shows, while “Sh 0” is random
show mode. Press the UP or DOWN buttons to nd your desired show.

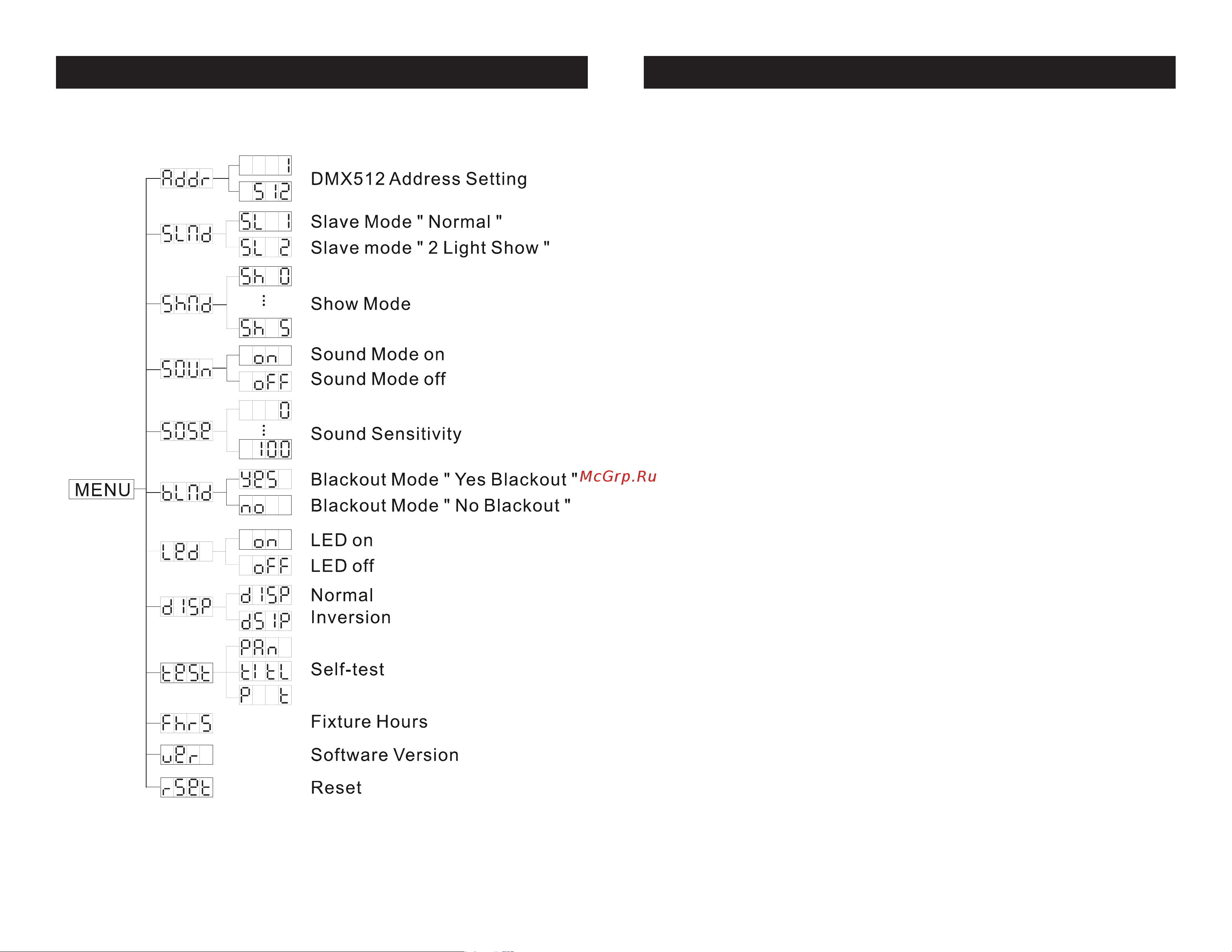

Duo Scan RG System Menu Duo Scan RG System Menu Chart
