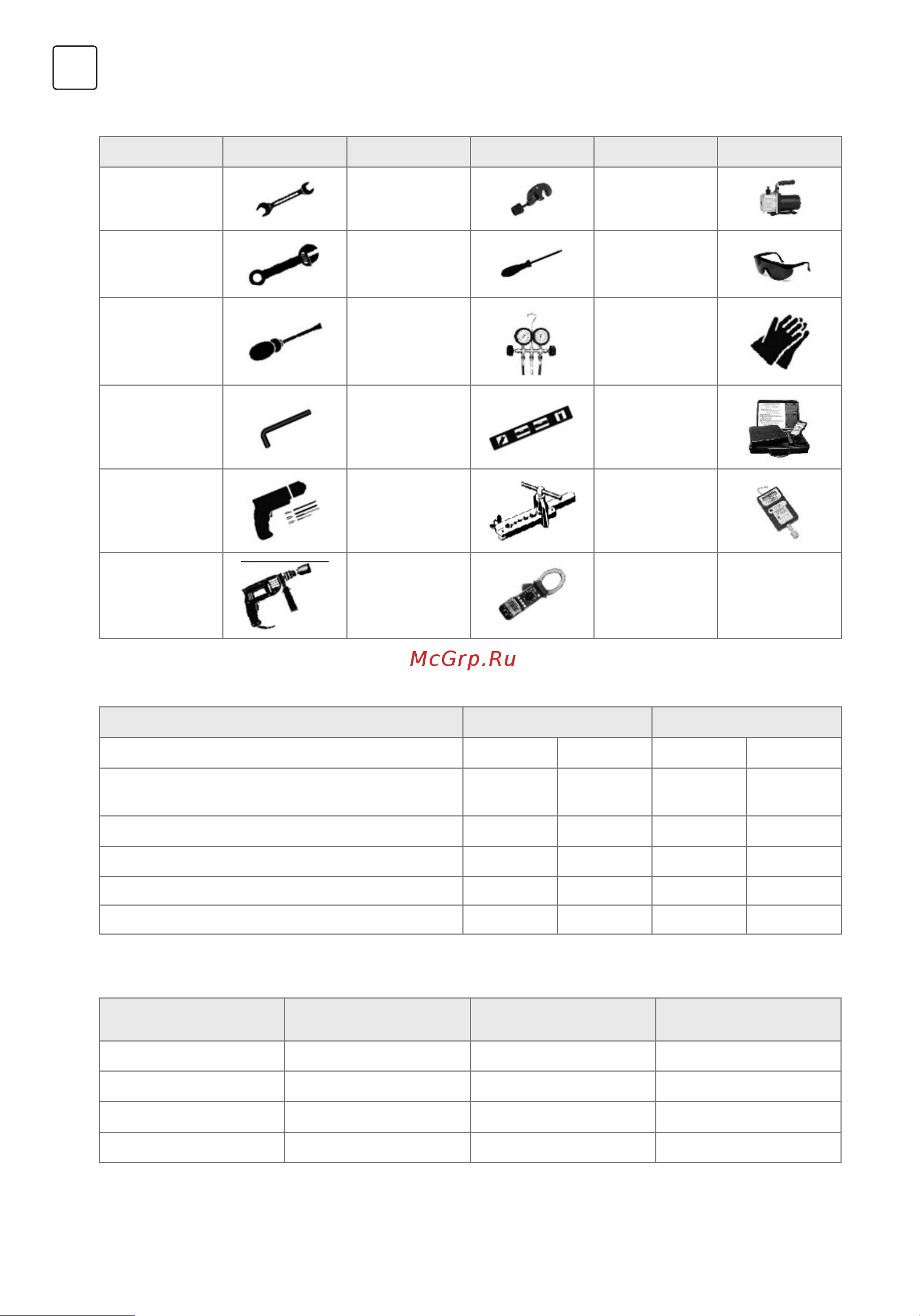

Suggested Tools

Tool Picture Tool Picture Tool Picture

Standard

Wrench

Pipe Cutter Vacuum Pump

Adjustable/

Crescent

Wrench

Screw drivers

(Phillips & Flat

blade)

Safety Glasses

Torque Wrench

Manifold and

Gauges

Work Gloves

Hex Keys or

Allen Wrenches

Level

Refrigerant

Scale

Drill & Drill Bits Flaring tool Micron Gauge

Hole Saw

Clamp on Amp

Meter

Inverter Models Capacity (Btu/h) 9K-12K 18K-36K

Lenght of pipe with standard charge 5m 5m 5m 5m

Lenght of pipe with standard charge (Like: North

American, etc.)

7.5m 7.5m 7.5m 7.5m

Maximum distance between indoor and outdoor unit 15m 25m 25m 25m

Additional refrigerant charge 20g/m 15g/m 30g/m 25g/m

Max. diff. in level between indoor and outdoor unit 10m 10m 10m 10m

Type of refrigerant R22/R410A R32 R22/R410A R32

Pipe Length and Additional Refrigerant

PIPE Newton meter [N x m] Pound-force foot (1bf-ft)

Kilogram-force meter

(kgf-m)

1/4" (ɸ6) 18 - 20 24.4 - 27.1 2.4 - 2.7

3/8” (ɸ9.52) 30 - 35 40.6 - 47.4 4.1 - 4.8

1/2” (ɸ12) 45 - 50 61.0 - 67.7 6.2 - 6.9

5/8” (ɸ15.88) 60 - 65 81.3 - 88.1 8.2 - 8.9

Torque Parameters
