Step1: Select Installation Location

(II) Hook the top of the indoor unit on the mounting plate without piping and wiring.

(III) Lift the indoor unit opposite the wall, unfold the bracket on the mounting plate, and use this bracket to prop up

the indoor unit, there will be a big space for operation.

(IV) Do the refrigerant piping, wiring, connect drainage hose, and wrap them as Step 4 to 7.

(V) Replace the bracket of mounting plate.

(VI) Push down the bottom of indoor unit to let the snaps onto the bottom hooks of the mounting plate, and make

sure it is hooked ﬁrmly.

(VII) Replace the bottom plate of the indoor unit.

Select a site that allows for the following:

1. Do not install the outdoor unit near sources of heat, steam or ﬂammable gas.

2. Do not install the unit in too windy or dusty places.

3. Do not install the unit where people often pass. Select a place where the air discharge and operating sound

will not disturb the neighbors.

4. Avoid installing the unit where it will be exposed to direct sunlight ( other wise use a protection, if necessary,

that should not interfere with the air ﬂow).

5. Reserve the spaces as shown in the picture for the air to circulate freely.

6. Install the outdoor unit in a safe and solid place.

7. If the outdoor unit is subject to vibration, place rubber blankets onto the feet of the unit.

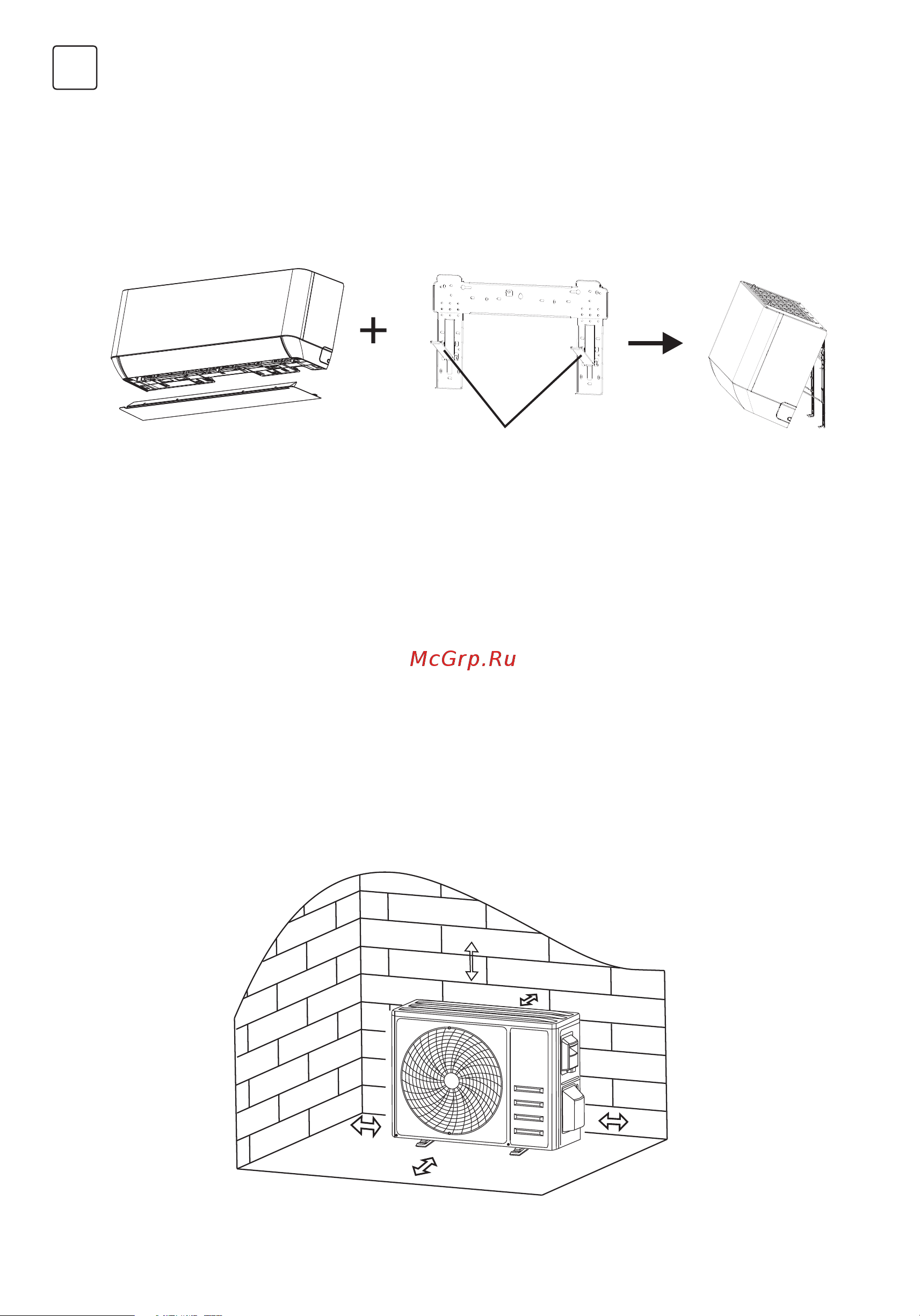

Take off the bottom plate Unfold the bracket on the mounting plate

OUTDOOR UNIT INSTALLATION

Over 30cm

Over 200cm

Over 50cm
