Step6: Connect Wiring

Step7: Wrap Piping and Cable

Step8: Mount Indoor Unit

1. Choose the right cables size determined by the maximum operating current on the nameplate.

(Check the cables size refer to section INSTALLATION PRECAUTIONS)

2. Open the front panel of indoor unit.

3. Use a screwdriver, open the electric control box cover, to reveal the terminal block.

4. Unscrew the cable clamp.

5. Insert one end of the cable into the position of control box from the back of the right end of the indoor unit.

6. Connect the wires to corresponding terminal according to the wiring diagram on the electric control box

cover. And make sure that they are well connected.

7. Screw the cable clamp to fasten the cables.

8. Reinstall the electric control box cover and front panel.

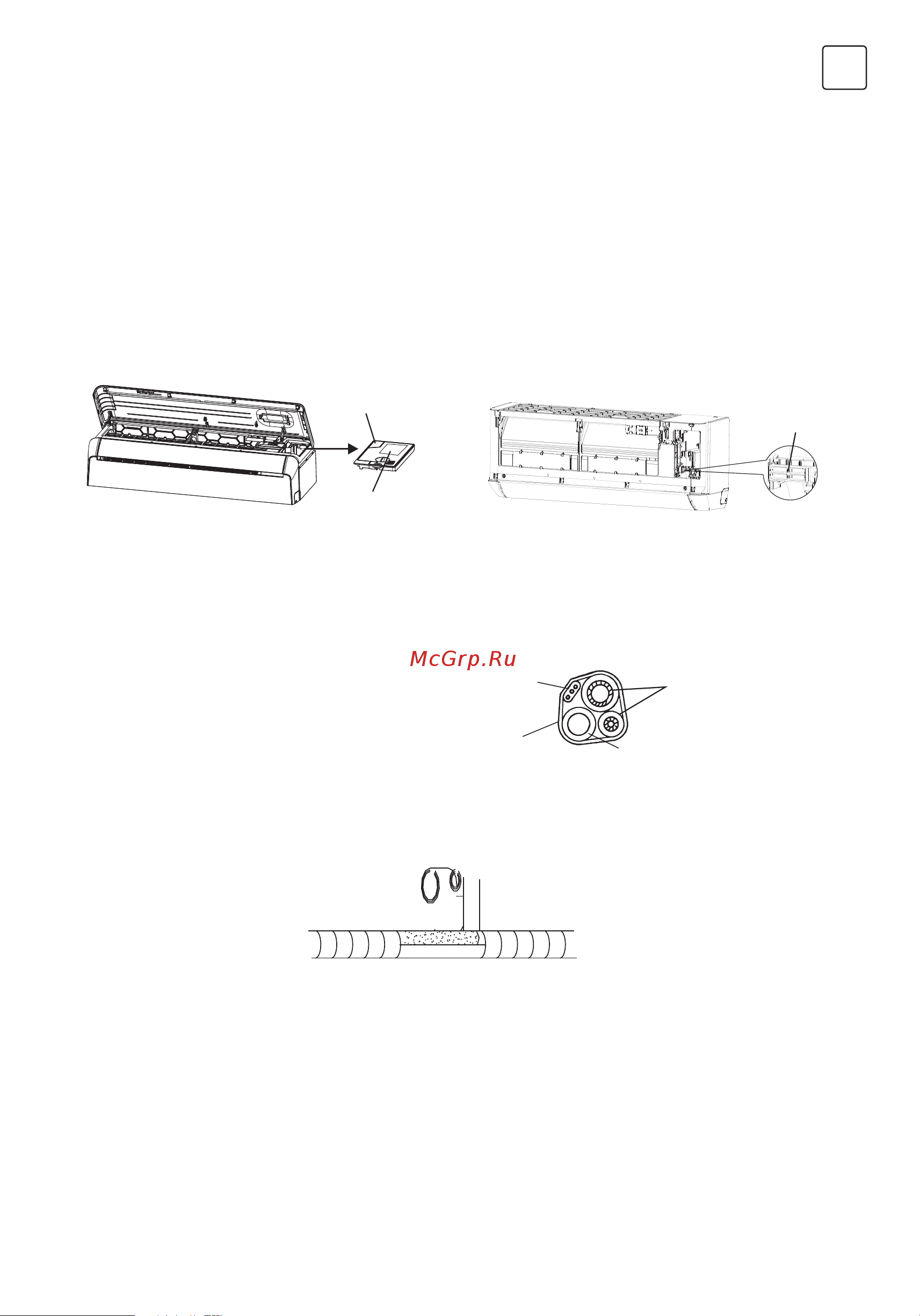

Control box cover

Wiring diagram

Cable clamp

After the refrigerant pipes, connecting wires and drainage hose are all installed, in order to save space, protect and

insulate them, it must be bundle with insulating tape before passing them through the wall hole.

1. Arrange the pipes ,cables and

drainage hose well as the following

picture.

2. Using the insulating tape wrap the refrigerant pipes, connecting wires and drainage hose together tightly.

1. Slowly pass the refrigerant pipes, connecting wires and drainage hose wrapped bundle through the wall hole.

2. Hook the top of indoor unit on the mounting plate.

3. Apply slight pressure to the left and right sides of the indoor unit, make sure the indoor unit is hooked ﬁrmly.

4. Push down the bottom of indoor unit to let the snaps onto the hooks of the mounting plate, and make sure it

is hooked ﬁrmly.

Sometimes, if the refrigerant pips were already embedded in the wall, or if you want to connecting the

pips and wires on the wall, do as below:

(I) Gab both ends of the bottom plate, apply a little outward force to take off the bottom plate.

Note: (I) Make sure the drainage hose is at the bottom.

(II) void crossing and bending of parts.

Refrigerant piping

Connecting wiring

Insulation tap

Drainage hose
