Step2: Install Drainage Hose

Step3: Fix Outdoor Unit

Step4: Install Wiring

1. This step only for heating pump models.

2. Insert the drainage joint to the hole at the bottom of the outdoor

unit.

3. Connect the drainage hose to the joint and make the connection

well enough.

1. According to the outdoor unit installation dimensions to mark the installation position for expansion bolts .

2. Drill holes and clean the concrete dust and place the bolts .

3. If applicable install 4 rubber blankets on the hole before place the outdoor unit (Optional). This will reduce

vibrations and noise.

4. Place the outdoor unit base on the bolts and pre-drilled holes.

5. Use wrench to ﬁx the outdoor unit ﬁrmly with bolts

1. Use a phillips screwdriver to unscrew wiring cover, grasp and press it down gently to take it down.

2. Unscrew the cable clamp and take it down.

3. According to the wiring diagram pasted inside the wiring cover, connect the connecting wires to the

corresponding terminals, and ensure all connections are ﬁrmly and securely.

4. Reinstall the cable clamp and wiring cover.

Note: When connecting the wires of indoor and outdoor units, the power should be cut off.

Note:

The outdoor unit can be ﬁxed on a wall-mounting bracket.

Follow the instruction of the wall-mounting bracket to ﬁx the

wall-mounting bracket on the wall, and then fasten the outdoor

unit on it and keep it horizontal.

The wall-mounting bracket must be able to support at least 4

times of the weight of outdoor unit.

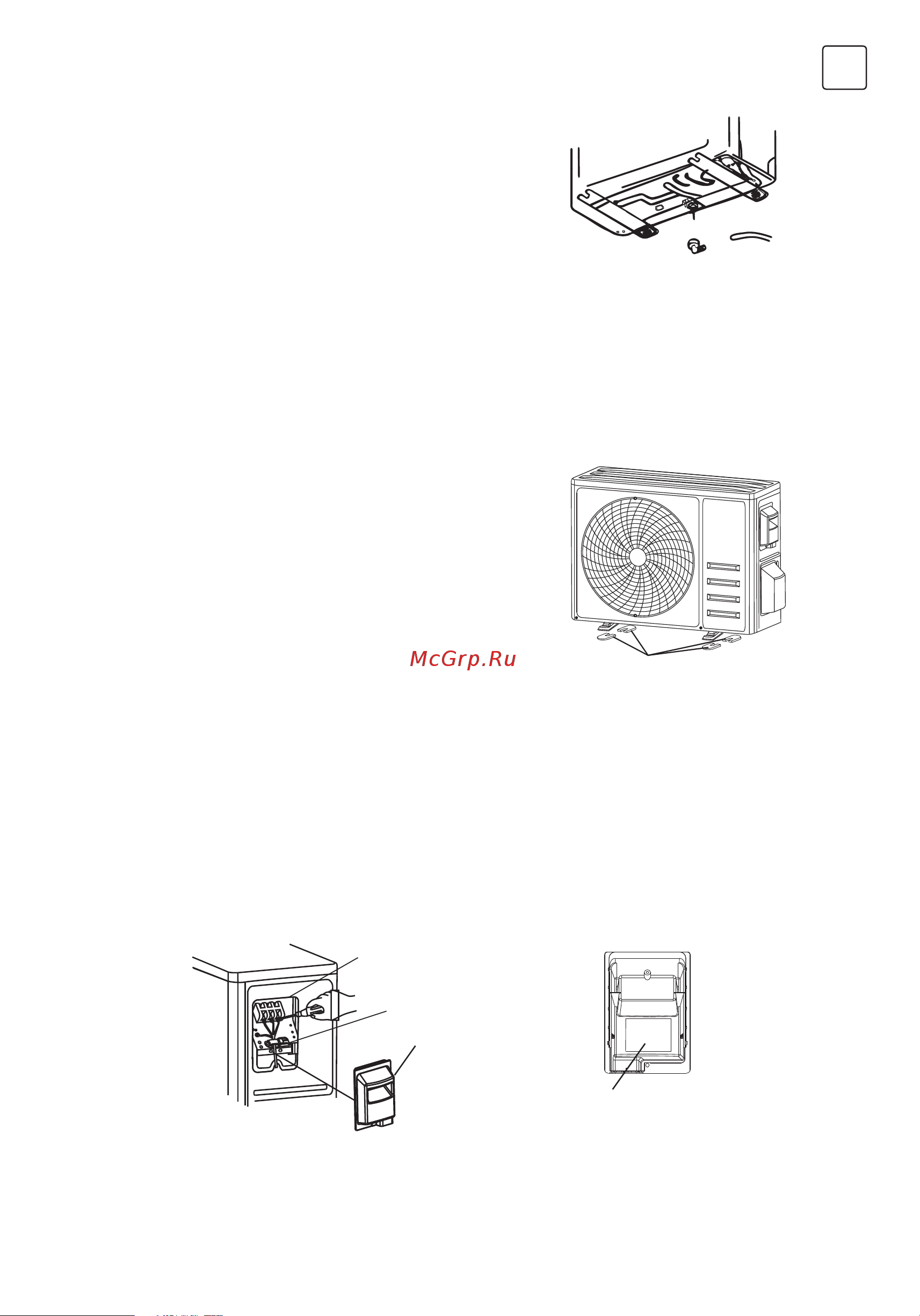

Drainage hoseDrainage joint

Install 4 rubber blankets (Optional)

Terminal block

Cable clamp

Wiring cover

Wiring diagram
