De Dietrich DHG577XP1 [10/48] Description of the appliance

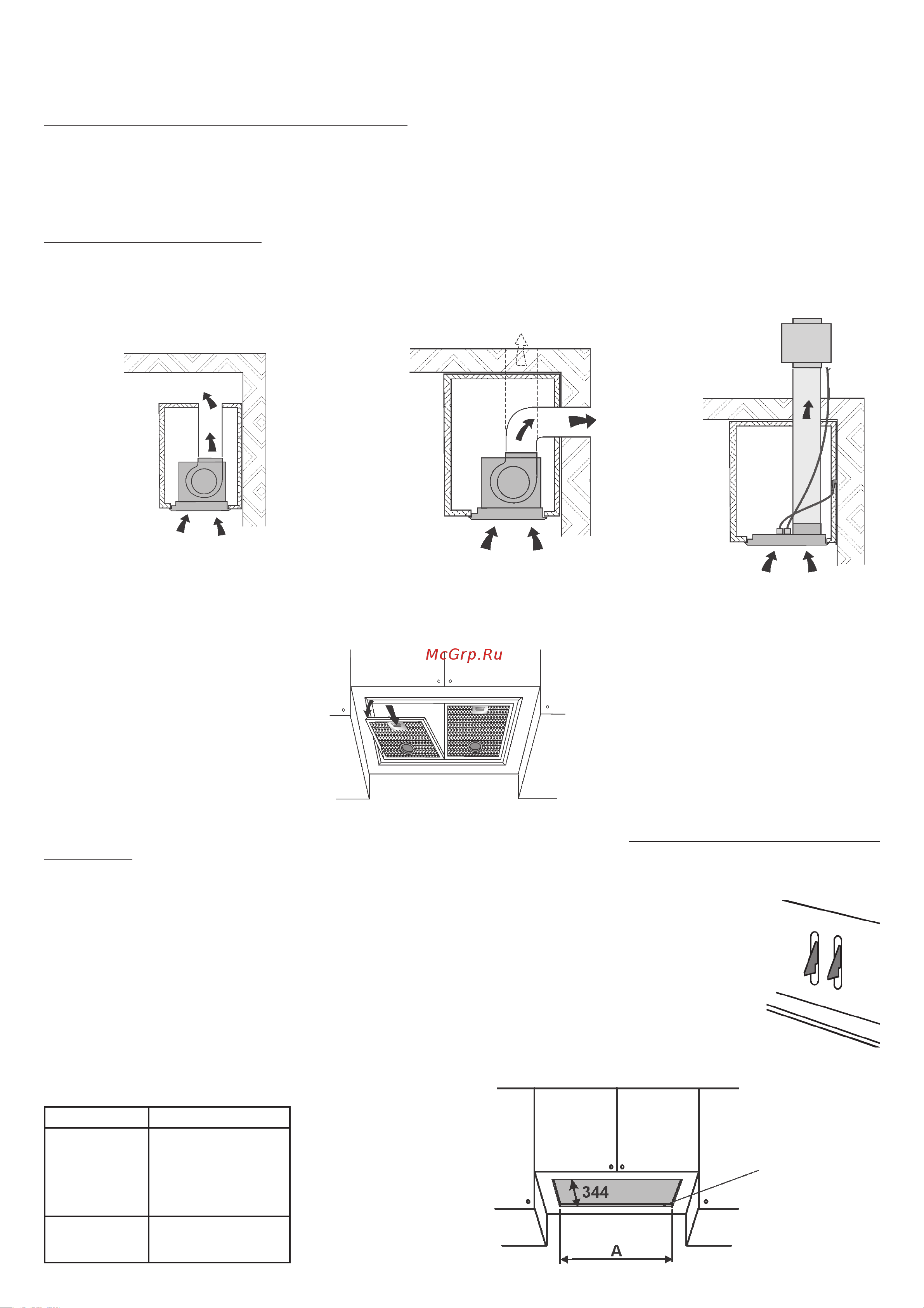

![De Dietrich DHG577XP1 [10/48] Description of the appliance](/views2/2005540/page10/bga.png)
10
Fig. 5
DESCRIPTION OF THE APPLIANCE
The description and characteristics shown in this document are for information only and not obligatory. Indeed, we reserve the
right to carry out any modification or improvement of the quality of certain of our products without prior notice.
Depending on the model purchased, the hoods may be installed in the filtering, ducting or external motor version.
Models: DHG556XP-DHG576XP-DHG577XP-DHG589: These models can be installed both in filtering or ducting versions, in
accordance with your requirements.
In the Filtering version (Fig. 1), the air and vapours conveyed by the appliance are depurated by charcoal filter and recirculated
around the room. ATTENTION: Using the hood as a filtering one it is necessary to use the charcoal filter that purifies the air
sent back into the room.
In the Ducting version (Fig. 2), cooking vapours and odours are conveyed straight outside by a disposal duct which passes
through the wall/ceiling. Use of charcoal filter is therefore unnecessary.
Models DHG560XP-DHG570XP: these models may only be installed in the External motor version (Fig. 3); more particularly
the apparatus must be connected to a ducted control unit that operates remotely, utilising the apparatus as a collection base
for the expelled air.
This apparatus conforms to the 16.08.89 regulation relating to the limitation of radio-electric disturbances (EC Directive n./
6.889 modified by the EC Directive 8/.308.).
INSTALLATION
It is advisable to entrust the installation operations to specialised personnel.
Read carefully the indications in the paragraph “IMPORTANT” at page 9 of the instruction booklet.
To facilitate installation, before starting remove the grease filters: press inward on the clamp at the handle and pull the filter
downward (Fig. 4).
Cut a hole in the bottom of the pensile cupboard in order to settle the appliance (Fig. 5).
The pensile cupboard bottom must be
16 mm thick.
Check that the fixing tabs (Fig. 6) to the wall unit are positioned at a height suited to the thickness of the bottom of the wall
unit. If this distance is less than the thickness, increase it by unscrewing the 2 corresponding screws inside the hood.
INSTALLATION IN FILTERING VERSION
Install the wiring system. Insert the appliance in the hole (Fig. 5). Make the air
evacuation hole on the top of the pensile cupboard (Fig.1). Tighten the 2 screws
inside the appliance (Fig. 7) until it fits snug on the bottom of the wall unit.
Do not tighten the two screws strongly to maintain the two metallic clamps
in the right position. Connect the tube with the device air outlet, to such a height
to reach the top of the pensile cupboard ( the tube is not included).Install again the
grease filters. Make the electrical connection of the hood by means of the power supply cable.
THICKNESS 16mm
Fig. 1
Fig. 2
Fig. 4
MODELS A
DHG556XP
DHG576XP
DHG589XP
DHG560XP
DHG577XP
DHG570XP
690mm
490mm
Fig. 6
Fig. 3
