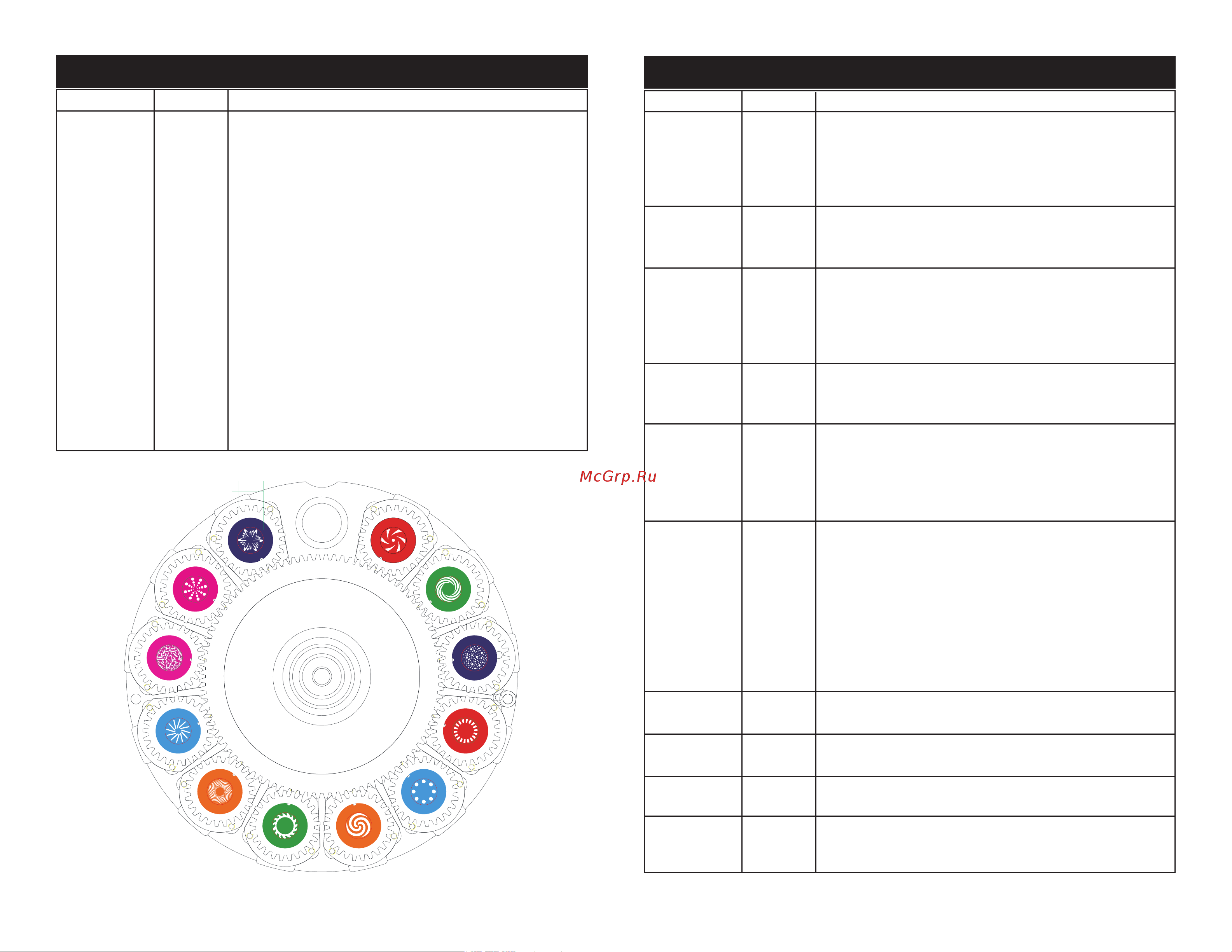

ADJ Products, LLC - www.adj.com - Vizi Hybrid 16RX Instruction Manual Page 19ADJ Products, LLC - www.adj.com - Vizi Hybrid 16RX Instruction Manual Page 18
Vizi Hybrid 16RX DMX Mode Values & Traits
Channel Value Function
8 GOBO WHEEL 2 GOBO ROTATION
0 - 127 INDEXING
128 - 189 CLOCKWISE ROTATION FAST - SLOW
190 - 193 NO ROTATION
194 - 255 COUNTER-CLOCKWISE ROTATION SLOW - FAST
9 PRISM 1 (8 FACET)
0 - 7 NO PRISM EFFECT
8 - 255 PRISM ACTIVE
10 PRISM 1 ROTATION
0 - 127 INDEXING
128 - 189 COUNTER-CLOCKWISE ROTATION FAST - SLOW
190 - 193 NO ROTATION
194 - 255 CLOCKWISE ROTATION SLOW - FAST
11 PRISM 2 (6 FACET)
0 - 7 NO PRISM EFFECT
8 - 255 PRISM ACTIVE
12 PRISM 2 ROTATION
0 - 127 INDEXING
128 - 189 COUNTER-CLOCKWISE ROTATION FAST - SLOW
190 - 193 NO ROTATION
194 - 255 CLOCKWISE ROTATION SLOW - FAST
13 SHUTTER & STROBE
0 - 7 SHUTTER CLOSED
8 - 15 SHUTTER OPEN
16 - 131 STROBING SLOW - FAST
132 - 167 SLOW OPEN - FAST CLOSE
168 - 203 FAST OPEN - SLOW CLOSE
204 - 239 SLOW OPEN - SLOW CLOSE
240 - 247 RANDOM STROBE
248 - 255 OPEN
14 MASTER DIMMER
0 - 255 0% - 100%
15 FOCUS
0 - 255 NEAR - FAR
16 ZOOM
0 - 255 3° - 32°
17 FROST
0 - 7 NO FUNCTION
8 - 255 0% - 100%
Vizi Hybrid 16RX DMX Mode Values & Traits
Channel Value Function
7 GOBO WHEEL 2 (GLASS GOBO’S)
0 - 5 OPEN
6 - 10 GOBO 1
11 - 15 GOBO 2
16 - 20 GOBO 3
21 - 25 GOBO 4
26 - 30 GOBO 5
31 - 36 GOBO 6
37 - 41 GOBO 7
42 - 46 GOBO 8
47 - 51 GOBO 9
52 - 56 GOBO 10
57 - 61 GOBO 11
62 - 67 GOBO 12
68 - 127 GOBO SHAKE GOBOS 1-12
128 - 189 COUNTER-CLOCKWISE ROTATION FAST - SLOW
190 - 193 NO ROTATION
194 - 255 CLOCKWISE ROTATION SLOW - FAST
12 mm
7 mm
