ADJ Products, LLC - www.adj.com - Vizi Hybrid 16RX Instruction Manual Page 32 ADJ Products, LLC - www.adj.com - Vizi Hybrid 16RX Instruction Manual Page 33

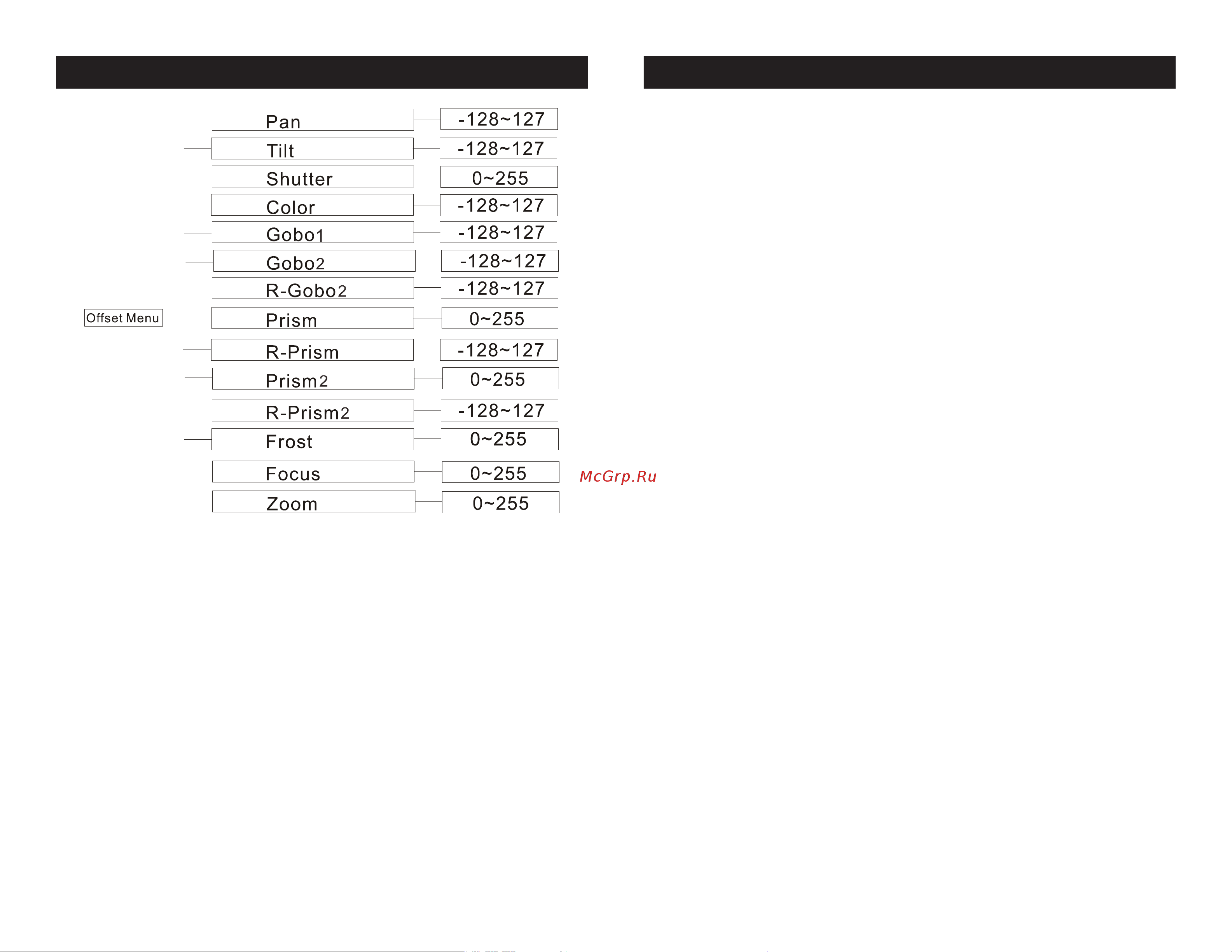

To enter the Oset Menu, press the ENTER button for at least 3 sec-

onds. In this submenu you are able to adjust the home position of the

pan, tilt, shutter, color wheel, both gobo wheel’s, RGobo (Rotating)

wheel, prism, R (Rotating) Prism, and focus position.

Pan - Adjustment of the pan home position.

1. Press the ENTER button for at least 3 seconds, then press the UP

or DOWN buttons so that “Pan” is displayed, press ENTER.

2. Use the UP and DOWN buttons to make your adjustments, and

2. Use the UP and DOWN buttons to make your adjustments, and

then press ENTER to conrm. Press the MENU button for one second

to exit.

Shutter - Setting adjustment for the Shutter.

1. Press the ENTER button for at least 3 seconds, then press the UP

or DOWN buttons so that “Shutter” is displayed, press ENTER.

2. Use the UP and DOWN buttons to make your adjustments, and

then press ENTER to conrm. Press the MENU button for one second

to exit.

Color - Setting adjustment for the color wheel.

1. Press the ENTER button for at least 3 seconds, then press the UP

or DOWN buttons so that “Gobo1” is displayed, press ENTER.

2. Use the UP and DOWN buttons to make your adjustments, and

then press ENTER to conrm. Press the MENU button for one second

to exit.

Gobo2 - Setting adjustment for the 2nd gobo wheel

(glass gobo wheel).

1. Press the ENTER button for at least 3 seconds, then press the UP

or DOWN buttons so that “Gobo2” is displayed, press ENTER.

2. Use the UP and DOWN buttons to make your adjustments, and
