ADJ Products, LLC - www.adj.com - Vizi Hybrid 16RX Instruction Manual Page 7
ADJ Products, LLC - www.adj.com - Vizi Hybrid 16RX Instruction Manual Page 6

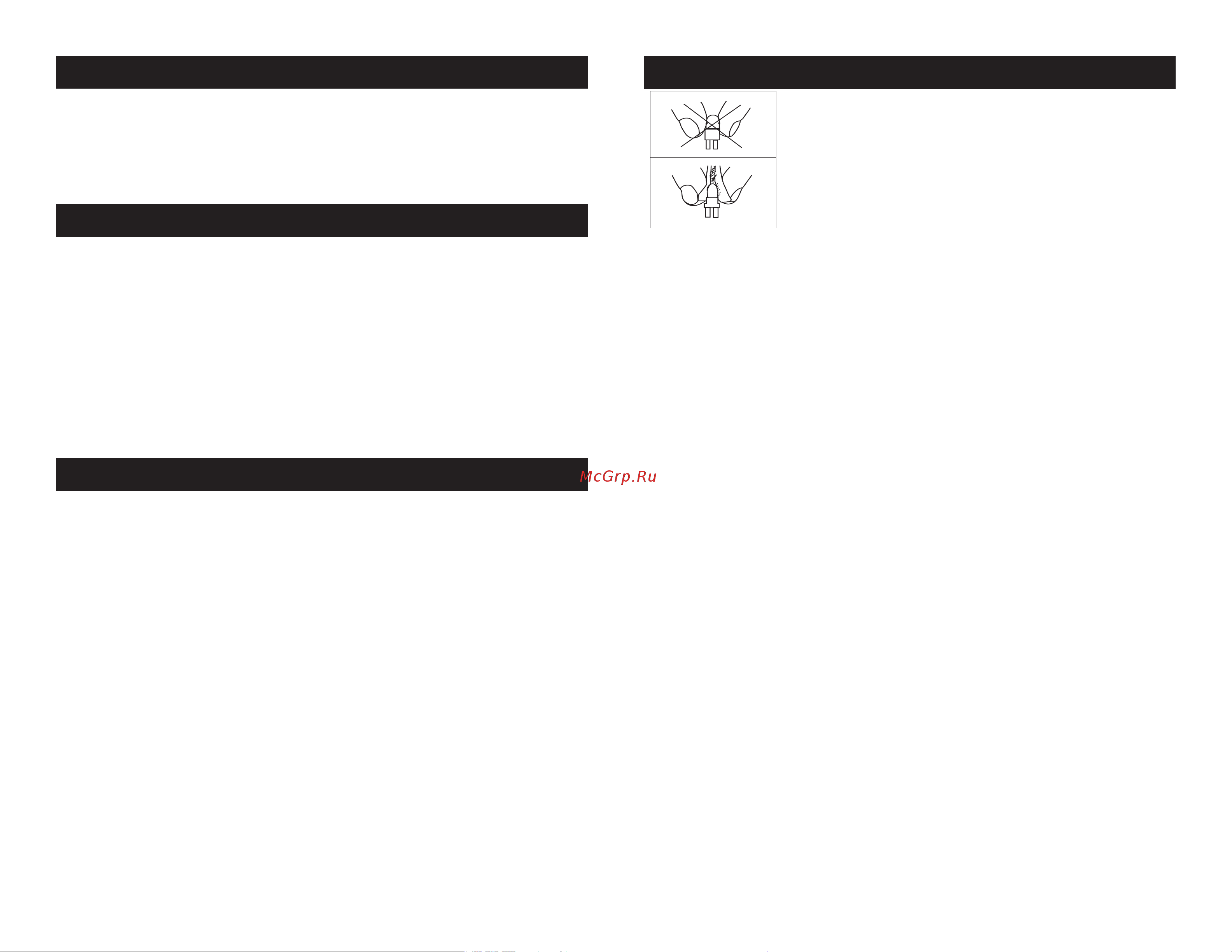

Vizi Hybrid 16RX Important Discharge Lamp Warnings
This fixture is fitted with a discharge lamp which is
highly susceptible to damage if improperly handled.
Never touch the lamp with your bare fingers as the
oil from your hands will shorten lamp life. Also, never
move the fixture until the lamps have had ample time
to cool. Remember, lamps are not covered under war-
ranty conditions.
This unit emits intense UV radiation which is harmful to the eyes and skin.
The intense luminance of the lamp can cause severe damage to the retina.
Never operate this unit without it’s covers, these covers have been specially
designed to shield against UV radiation.
Epileptic Warning: Those suering from epilepsy should avoid looking directly
into the lamp at all times.
Avoid switching the xture on and o repeatedly in short intervals as this will
reduce lamp life and intensity.
To achieve the intensity associated with discharge lamps, these lamps use
gas sealed in a high pressure environment to emit a brilliant output. Due to
the high pressure involved with the construction of the lamp, the lamp may
explode during prolonged extensive use. This risk is increased with age,
added care is encouraged when dealing with older lamps. Extreme caution
should be used when operating this or any xture tted with a gas discharge
lamp. Never open this unit while in use.
VERY IMPORTANT: This is for your safety and the life length of the unit.
The Philips® Platinum 16R Discharge lamp has lifetime of 1500 hours.
ADJ recommends periodically checking the lamp running time (see page 29
“Lamp Use Hour”). When the lamp reaches the 1500 hour mark, or close to it,
we strongly suggest you switch the lamp out.
Replace the lamp following the instructions on pages 38-39. After replaceing
the lamp you must clear the LAMP RUNNING TIME (see page 29 “Lamp Use
Hour”).
Warning: DO NOT use this lamp more then 1500 hours. Using the lamp
any longer then the set life could seriously damage your unit.
WARNING! CAUTION! FIRE HAZARD! DUE TO THE EXTREME
HEAT CAUSED BY THIS LAMP, THE MINIMUM DISTANCE TO
LIGHTED OBJECTS IS 12 METERS (40FT).
The Vizi Hybrid 16RX carries a one year limited warranty. Please fill
out the enclosed warranty card to validate your purchase. All returned
service items whether under warranty or not, must be freight pre-
paid and accompany a return authorization (R.A.) number. The R.A.
number must be clearly written on the outside of the return package.
A brief description of the problem as well as the R.A. number must
also be written down on a piece of paper and included in the shipping
carton. If the unit is under warranty, you must provide a copy of your
proof of purchase invoice. You may obtain a R.A. number by con-
tacting our customer support team on our toll free customer support
number. All packages returned to the service department not display-
ing a R.A. number on the outside of the package will be returned to
the shipper at the shippers cost.
Vizi Hybrid 16RX Product
Registration
To optimize the performance of this product, please read these operating
instructions carefully to familiarize yourself with the basic operations of
this unit. These instructions contain important safety information regard-
ing the use and maintenance of this unit. Please keep this manual with
the unit, for future reference.
Vizi Hybrid 16RX General Instructions
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures
warranty. In the unlikely event your unit may require service please
contact ADJ®.
During operation the housing may become extremely hot. Avoid touch-
ing the unit with bare hands while in use.
ADJ
® will not accept any liability for any resulting damages caused by
the non-observance of this manual or any unauthorized modication
to this unit.
Vizi Hybrid 16RX Handling Precautions
