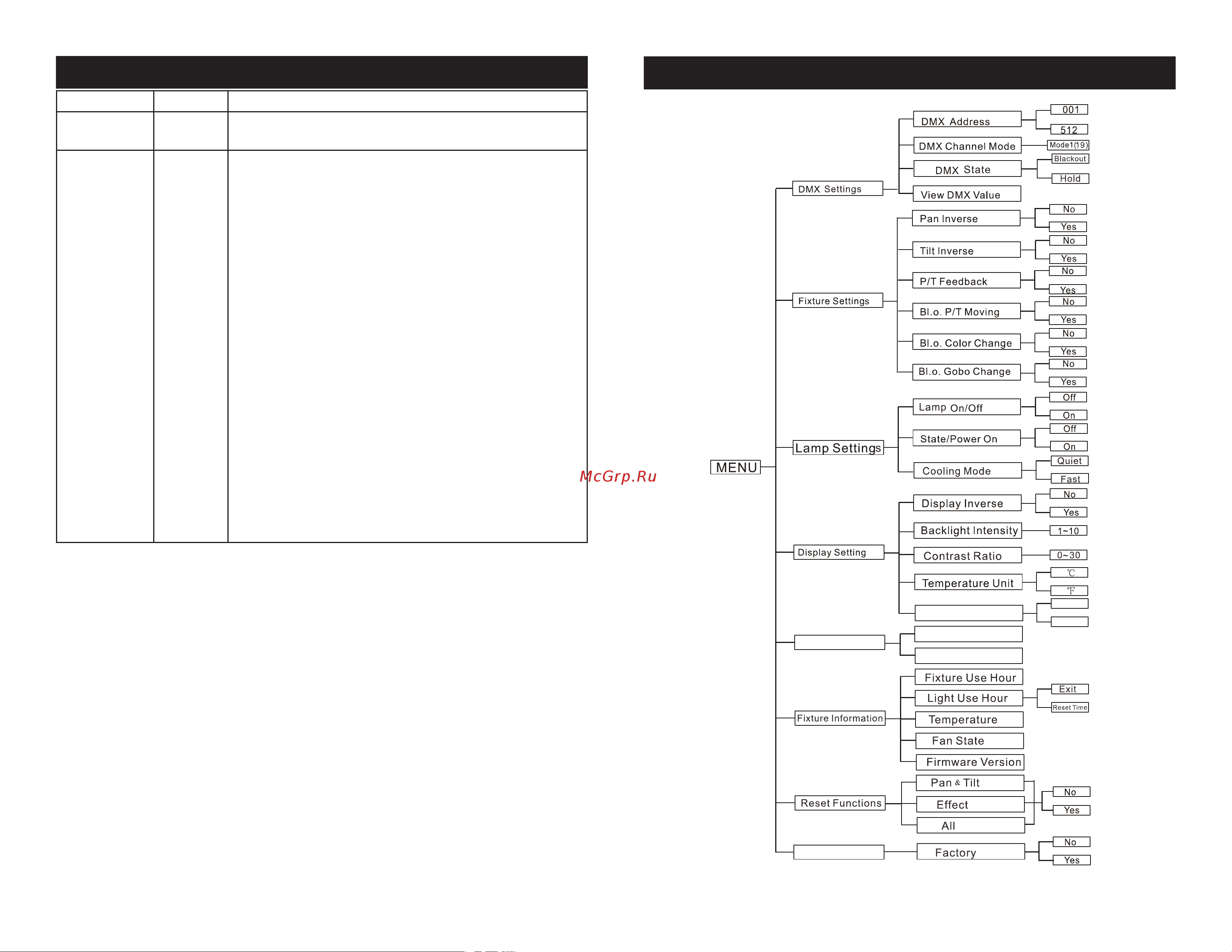

ADJ Products, LLC - www.adj.com - Vizi Hybrid 16RX Instruction Manual Page 21ADJ Products, LLC - www.adj.com - Vizi Hybrid 16RX Instruction Manual Page 20
Vizi Hybrid 16RX DMX Mode Values & Traits
Channel Value Function
18 PAN/TILT SPEED
0 - 255 FAST - SLOW
19 SPECIAL FUNCTIONS
0 - 49 NO FUNCTION
50 - 59 ENABLE FROST WITH COLOR CHANGE
60 - 69 DISABLE FROST WITH COLOR CHANGE
70 - 79 ENABLE BLACKOUT WITH PAN/TILT MOVEMENT
80 - 89 DISABLE BLACKOUT WITH PAN/TILT MOVEMENT
90 - 99 ENABLE BLACKOUT WITH COLOR CHANGE
100 - 109 DISABLE BLACKOUT WITH COLOR CHANGE
110 - 119 ENABLE BLACKOUT WITH GOBO CHANGE
120 - 129 DISABLE BLACKOUT WITH GOBO CHANGE
130 - 139 LAMP ON
140 - 149 PAN/TILT RESET
150 - 159 EFFECT RESET
160 - 169 FAN SPEED QUIET
170 - 179 FAN SPEED FAST
180 - 189 LAMP FULL POWER
190 - 199 LAMP HALF POWER
200 - 209 RESET ALL
210 - 229 NO FUNCTION
230 - 239 LAMP OFF
240 - 255 NO FUNCTION
Vizi Hybrid 16RX System Menu
Language
English
Chinese
Fixture Test
Auto Test
Manual Test
Special Functions
