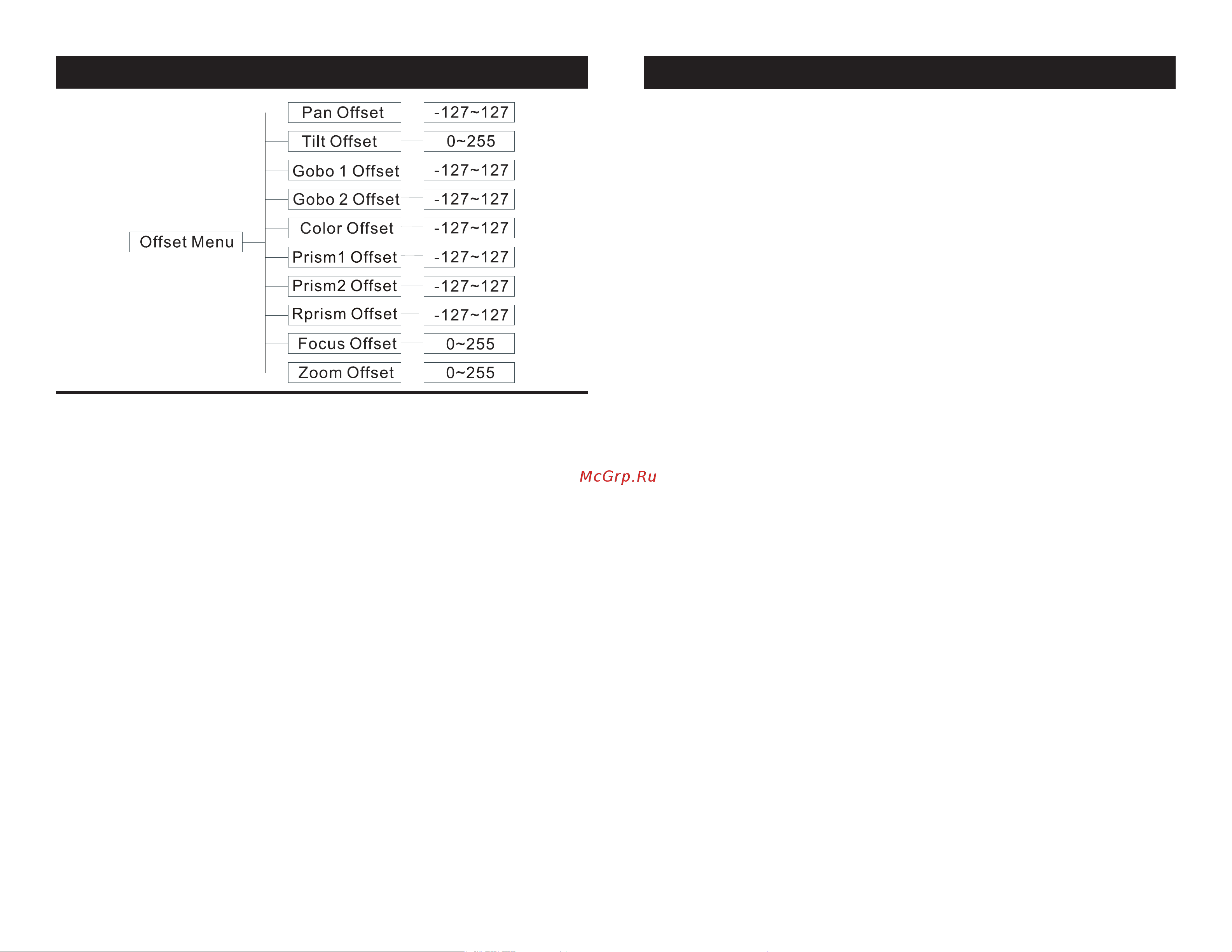

Focus Spot Three Z Home Adjustment Menu
To enter the Oset Menu, press the MENU button to unlock the
display, then press the ENTER button for at least 5 seconds. In this
submenu you are able to adjust the home position of the pan, tilt,
gobo wheels, color wheel, prisms, focus, and zoom .
Pan Oset - Adjustment of the pan home position.
1. Press the ENTER button for at least 5 seconds, then press the UP
or DOWN buttons so that “Pan Offset” is displayed, press ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and
then press ENTER to conrm. Press the MENU button for one second
to exit.
Tilt Oset - Adjustment of the tilt home position.
1. Press the ENTER button for at least 5 seconds, then press the UP
or DOWN buttons so that “Tilt Offset” is displayed, press ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and
then press ENTER to conrm. Press the MENU button for one second
to exit.
Gobo 1 Oset - Setting adjustment for the 1st gobo
wheel.
1. Press the ENTER button for at least 5 seconds, then press the
UP or DOWN buttons so that “Gobo 1 Offset” is displayed, press
ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and
then press ENTER to conrm. Press the MENU button for one second
to exit.
Gobo 2 Oset - Setting adjustment for the 2nd gobo
wheel.
1. Press the ENTER button for at least 5 seconds, then press the
UP or DOWN buttons so that “Gobo 2 Offset” is displayed, press
ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and
then press ENTER to conrm. Press the MENU button for one second
to exit.
Color Oset - Setting adjustment for the color wheel.
1. Press the ENTER button for at least 5 seconds, then press the UP
or DOWN buttons so that “Color” is displayed, press ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and
then press ENTER to conrm. Press the MENU button for one second
to exit.
Prism 1 Oset - Setting adjustment for the 1st prism.
1. Press the ENTER button for at least 5 seconds, then press the
UP or DOWN buttons so that “Prism 1 Offset” is displayed, press
ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and
then press ENTER to conrm. Press the MENU button for one second
to exit.
