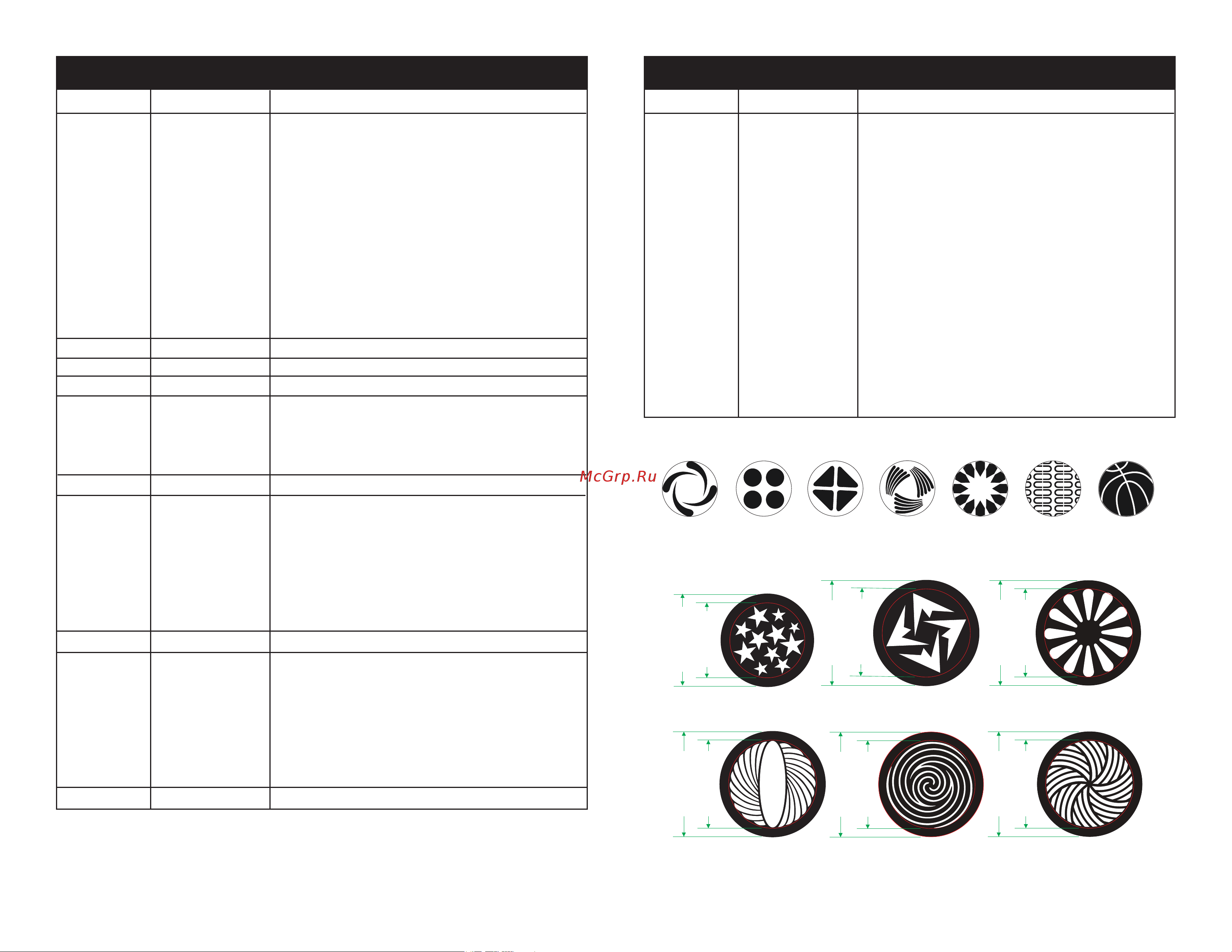

Focus Spot Three Z 18 Channel Mode
Channel Value Function
9 STROBE/SHUTTER
0 - 7 OFF
8 - 15 OPEN
16 - 131 STROBING SLOW - FAST
132 - 139 OPEN
140 - 181 SLOW OPEN - FAST CLOSE
182 - 189 OPEN
190 - 231 FAST OPEN - SLOW CLOSE
232 - 239 OPEN
240 - 247 RANDOM STROBE SLOW - FAST
248 - 255 OPEN
10 0 - 255 MASTER DIMMER 0% - 100%
11 0 - 255 FOCUS 0% - 100%
12 AUTO FOCUS
0 - 7 NOTHING
8 - 63 5M FOR AUTO FOCUS
64 - 127 10M FOR AUTO FOCUS
128 - 255 15M FOR AUTO FOCUS
13 0 - 255 ZOOM 18° - 12°
14 SHOWS
0 OFF
1 - 21 SHOW 1
22 - 41 SHOW 2
42 - 61 SHOW 3
62 - 81 SHOW 4
82 - 255 RANDOM SHOW WITH SOUND ACTIVITY
15 0 - 255 SHOW SPEED FAST - SLOW
16 DIMMER MODES
0 - 20 STANDARD
21 - 40 STAGE
41 - 60 TV
61 - 80 ARCHITECTURAL
81 - 100 THEATRE
101 - 255 DEFAULT TO UNIT
17 0 - 255 PAN/TILT SPEED FAST - SLOW
Focus Spot Three Z 18 Channel Mode
Channel Value Function
18 FUNCTION
0 - 69 NOTHING
70 - 79 ENABLE BLACKOUT WITH PAN/TILT
80 - 89 DISABLE BLACKOUT WITH PAN/TILT
90 - 99 ENABLE BLACKOUT W/ COLOR CHANGE
100 - 109 DISABLE BLACKOUT W/ COLOR CHANGE
110 - 119 ENABLE BLACKOUT W/ GOBO CHANGE
120 - 129 DISABLE BLACKOUT W/ GOBO CHANGE
130 - 139 PAN/TILT MOTOR RESET
140 - 149 COLOR WHEEL MOTOR RESET
150 - 159 GOBO WHEEL MOTOR RESET
160 - 169 EFFECTS RESET (PRISM/FOCUS/ZOOM)
170 - 199 NOTHING
200 - 209 RESET ALL
210 - 255 NOTHING
Gobo 1 Gobo 7Gobo 6Gobo 5Gobo 4Gobo 3Gobo 2
23.80 mm
20.00 mm
20.00 mm
23.80 mm
20.00 mm
23.80 mm
23.80 mm
20.00 mm
20.90 mm
17.00 mm
Gobo 1
Gobo 5Gobo 4
Gobo 3Gobo 2
23.80 mm
20.00 mm
Gobo 6
Gobo Wheel 1
Gobo Wheel 2
