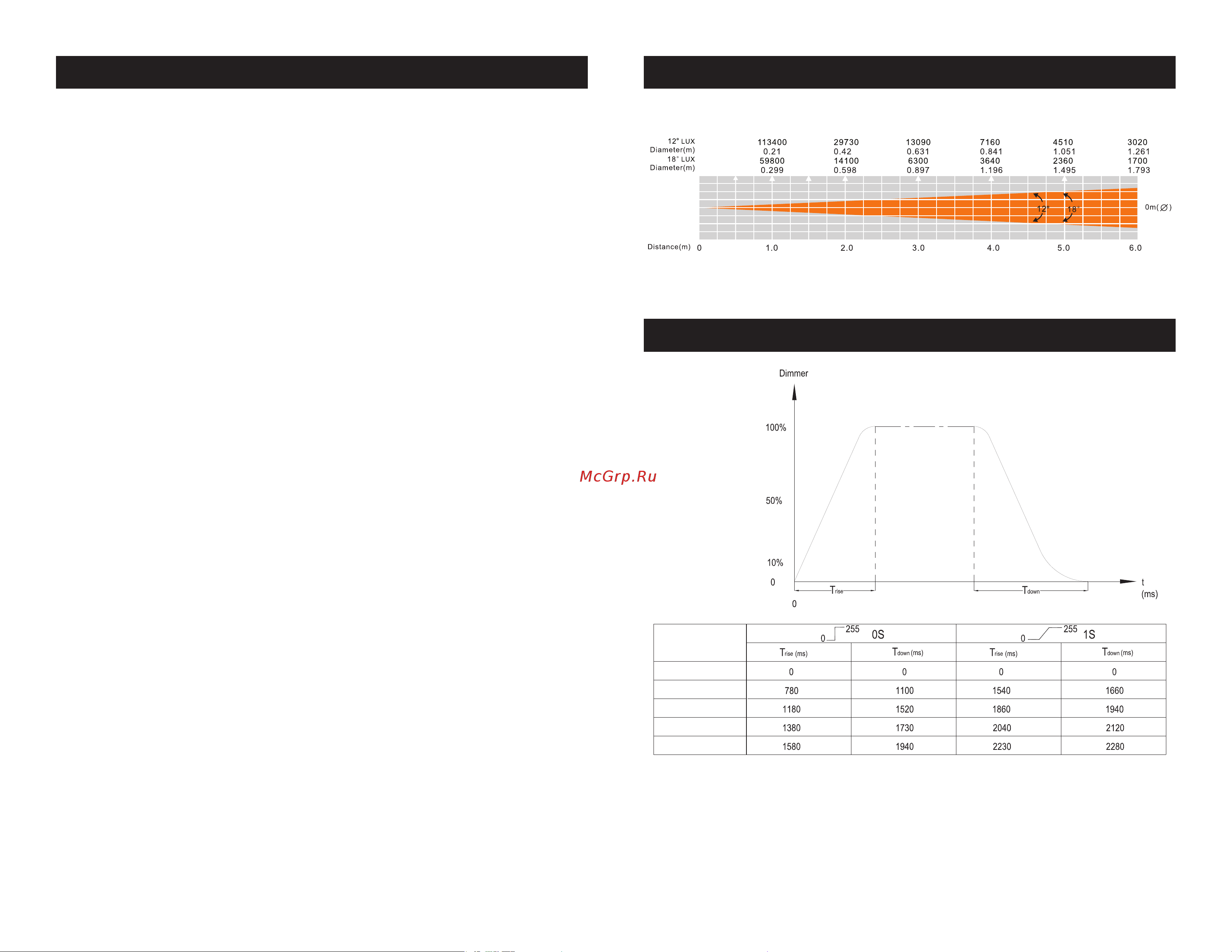

Focus Spot Three Z Dimmer Curve Chart
(Fade Time) (Fade Time)
Ramp Effect
Standard
Stage
TV
Architectural
Theatre
Focus Spot Three Z Photometric Chart
The gobo’s in the second gobo wheel are the only gobo’s that
are interchangable in this unit. Please be very careful when
replacing the gobo.
Caution! Never open the unit when in use. Always disconnect
the main power before attempting to change the gobos.
1. To change a gobo, look inside the unit from the front lens and
notice the prisms. Rotate the moving head so that prisms
are facing down. The top shell facing you is the shell you
need to remove.
2. Uscrew the 4 screws that secure the shell to the unit. Gently
lift the shell o of the unit.
3. When you remove the shell you will be able to access the
gobo wheel. Turn the wheel with your hand until you come
across the gobo you would like to change.
4. Gently and carefully remove the fixture ring. You will notice
that small dab of high temperature silicon holds the fixture
ring. After the fixture ring is removed, carefully remove the
gobo.
5. Change the gobo and replace the fixture ring.
6. Reassemble the unit.
Focus Spot Three Z Changing the Gobo
