ADJ Products, LLC - www.adj.com - Inno Pocket Spot LZR Instruction Manual Page 18 ADJ Products, LLC - www.adj.com - Inno Pocket Spot LZR Instruction Manual Page 19
VER - Use this function to display the Software version of
the unit.
1. Press the either the MENU button until “VER” is displayed, press
ENTER.
2. The display will show the software version.
RSET - Use this function to reset the unit.
1. Press the MENU button until “RSET” is displayed, press ENTER.
2. The xture will now reset.
Inno Pocket Spot LZR System Menu

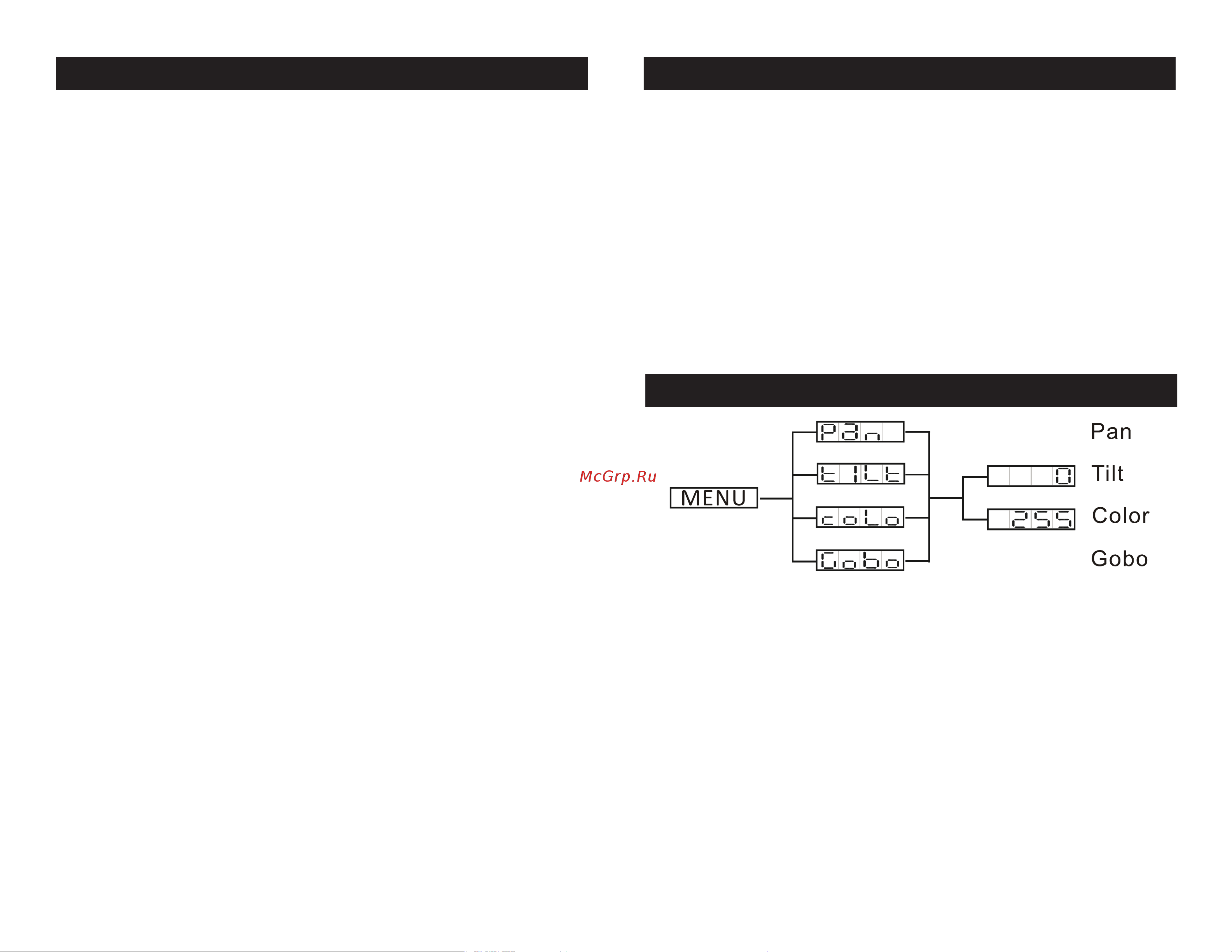

Inno Pocket Spot L Home Adjustment Menu
To enter the home position adjustment menu, press the ENTER
button for at least 5 seconds. In this submenu you are able to adjust
the original position of the pan position, tilt position, color wheel posi-
tion, and gobo wheel position.
PAN - Adjustment of the pan position.
1. Press the ENTER button for at least 5 seconds, then press the UP
or DOWN buttons so that “PAN” is displayed, press ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and
then press ENTER to conrm. Press the MENU button for one second
to exit.
LED - With this function you can have the LED display
turn off after 10 seconds.
1. Press the MENU button until “LED” is displayed, press ENTER.
2. The display will show either “ON” or “OFF”. Press the UP or
DOWN buttons to select “ON” to keep the LED display on at all
times, or “OFF” to switch to have the LED display switch o after 10
seconds.
3. Press ENTER to conrm. To make you LED display reappear again
press any button.
DISP - This function will reverse the display 180º.
1. Press the MENU button until “DISP” is displayed, press ENTER.
2. Press ENTER to “ip” the display. Press ENTER to “ip” it again.
Press ENTER when you have made your desired setup.
TEST - This function will run a self test program.
1. Press the MENU button until “TEST” is displayed, press ENTER.
2. The xture will now run a self test.
TEMP - This function will show you current running tem-
perature.
1. Press the MENU button until “TEST” is displayed, press ENTER.
2. The xture will now run a self test.
FHRS - With this function you can display the running
time of the unit.
1. Press the MENU button until “FHRS” is displayed, press ENTER.
2. The running time of the xture will now be displayed. Press MENU
to exit.
