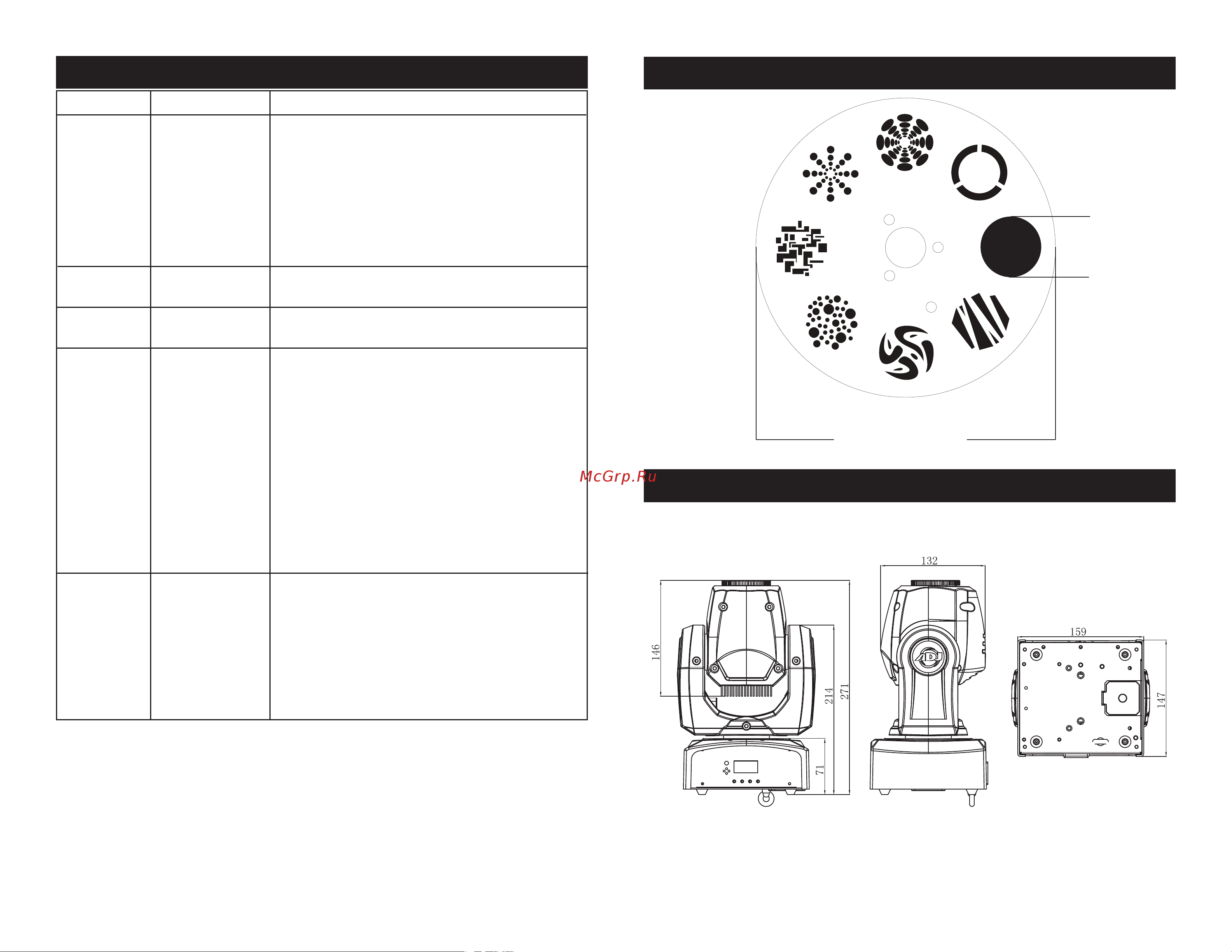

![AMERICAN DJ Inno Pocket Spot LZR [17/20] Channel value function](/views2/2008200/page17/bg11.png)
ADJ Products, LLC - www.adj.com - Inno Pocket Spot LZR Instruction Manual Page 32 ADJ Products, LLC - www.adj.com - Inno Pocket Spot LZR Instruction Manual Page 33
Inno Pocket Spot LZR 16 Channel Mode
Channel Value Function
12 PAN/TILT MACRO
136 - 155 MACRO 7
156 - 175 MACRO 8
176 - 195 MACRO 9
196 - 215 MACRO 10
216 - 235 MACRO 11
236 - 255 MACRO 12
13 PAN/TILT MACRO SPEED
0 - 255 SLOW - FAST
14 PAN/TILT SPEED
0 - 255 FAST - SLOW
15 BLACKOUT/RESET FUNCTIONS
0 - 69 NOTHING
70 - 79 BLACKOUT WITH PAN/TILT MOVE
80 - 89 NOTHING
90 - 99 BLACKOUT WITH COLOR CHANGE
100 - 109 NOTHING
110 - 119 BLACKOUT WITH GOBO CHANGE
120 - 199 NOTHING
200 - 209 RESET ALL
210 - 249 NOTHING
250 - 255 SOUND ACTIVE MODE
16 DIMMER MODE
0 - 20 STANDARD
21 - 40 STAGE
41 - 60 TV
61 - 80 ARCHITECTURAL
81 - 100 THEATRE
101 - 255 DEFAULT DIMMER SETTING
Inno Pocket Spot LZR Gobo Wheel
Inno Pocket Spot LZR Dimensions
74mm
15mm
