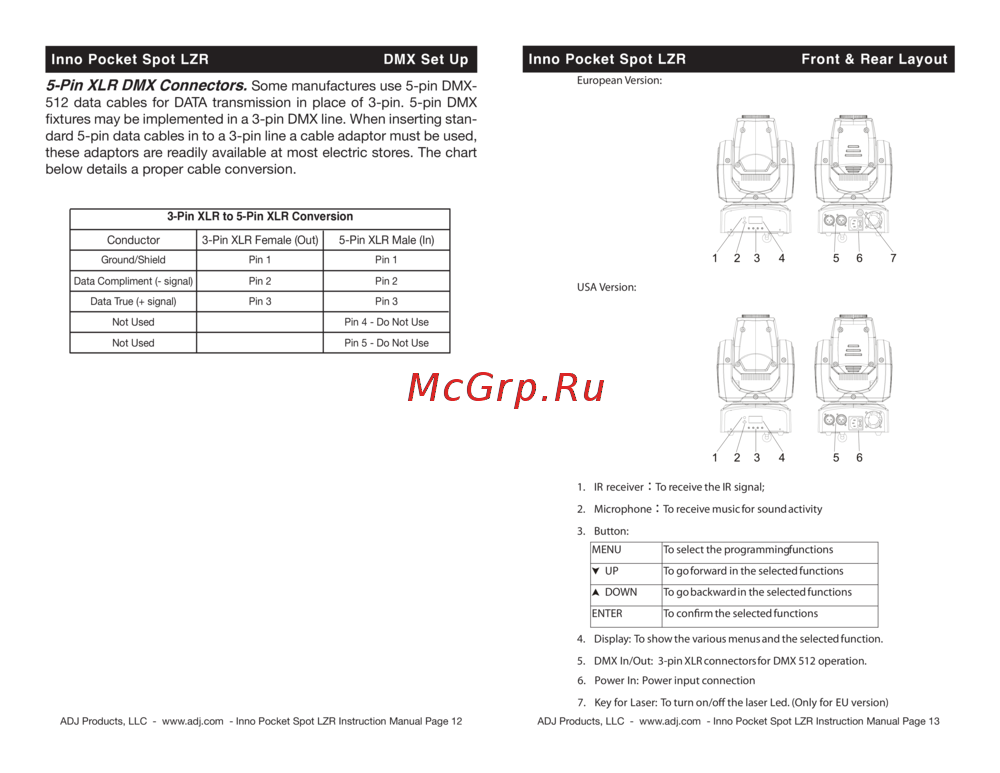

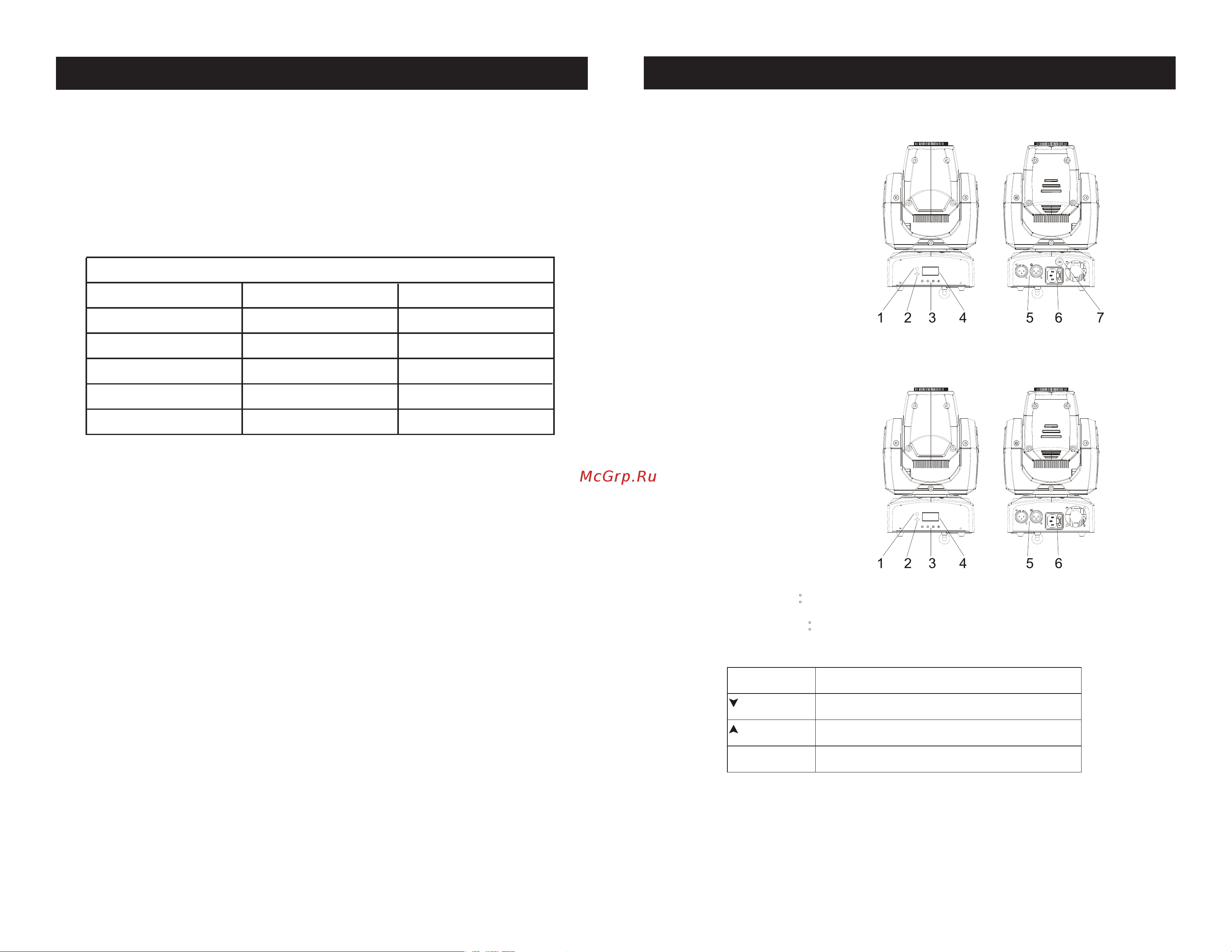

ADJ Products, LLC - www.adj.com - Inno Pocket Spot LZR Instruction Manual Page 12 ADJ Products, LLC - www.adj.com - Inno Pocket Spot LZR Instruction Manual Page 13
5-Pin XLR DMX Connectors.
Some manufactures use 5-pin DMX-
512 data cables for DATA transmission in place of 3-pin. 5-pin DMX
xtures may be implemented in a 3-pin DMX line. When inserting stan-
dard 5-pin data cables in to a 3-pin line a cable adaptor must be used,
these adaptors are readily available at most electric stores. The chart
below details a proper cable conversion.
Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)
Pin 1
Pin 5 - Do Not Use
Pin 4 - Do Not Use
Pin 3
Pin 2
Pin 1
Pin 3
Pin 2
Not Used
Not Used
Data True (+ signal)
Data Compliment (- signal)
Ground/Shield
3-Pin XLR to 5-Pin XLR Conversion
Inno Pocket Spot LZR DMX Set Up
Inno Pocket Spot LZR Front & Rear Layout
EuropeanVersion:
USAVersion:
1. IRreceiver：ToreceivetheIRsignal;
2. Microphone：
Toreceivemusicforsoundactivity
3. Button:
MENU Toselecttheprogrammingfunctions
UP Togoforwardintheselectedfunctions
DOWN Togobackwardintheselectedfunctions
ENTER Toconrmtheselected functions
4. Display:Toshowthevariousmenusandtheselectedfunction.
5. DMXIn/Out: 3‐pinXLRconnectorsforDMX512operation.
6. PowerIn: connectionPower input
7. KeyforLaser:Toturnon/othelaserLed.(OnlyforEUversion)
