ADJ Products, LLC - www.adj.com - Inno Pocket Spot LZR Instruction Manual Page 15ADJ Products, LLC - www.adj.com - Inno Pocket Spot LZR Instruction Manual Page 14

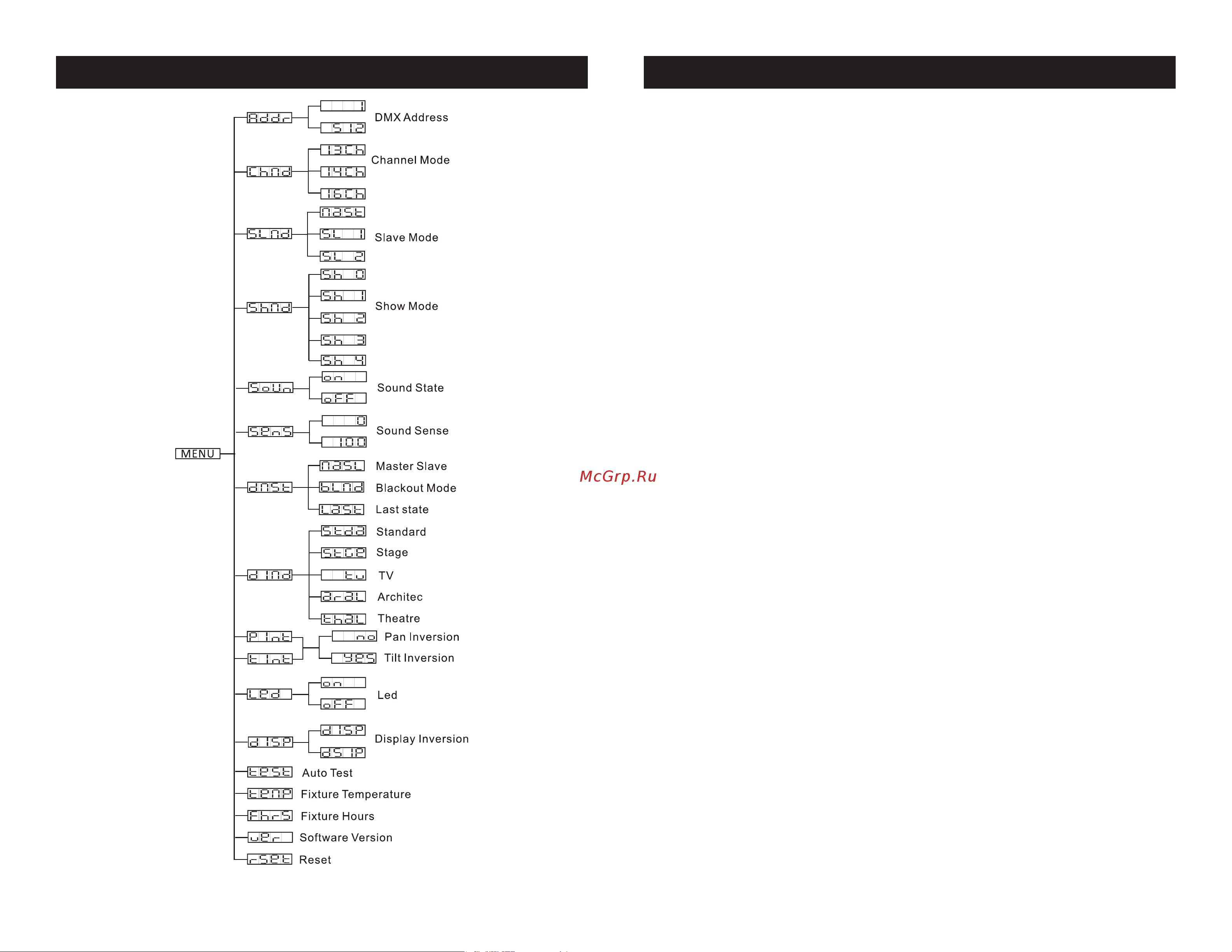

Inno Pocket Spot LZR System Menu
System Menu: When making adjustments press ENTER to
conrm your setup then press and hold the MENU button
for at least 3 seconds. To exit without making any adjust-
ments press the MENU button. The display will lock after 30
seconds, press the MENU button for 3 seconds to unlock.
ADDR - DMX Address Setting.
1. Press the either the MENU, UP, or DOWN buttons until “ADDR” is
displayed, press ENTER.
2. The current address will now be displayed and ashing. Press the
UP or DOWN buttons to nd your desired address. Press ENTER to
set your desired DMX address.
CHND - This will let select your desired DMX channel
mode.
1. Press the either the MENU button until “CHND” is displayed, press
ENTER. The current channel mode will now be displayed.
2. Press the UP or DOWN buttons to nd your desired DMX channel
mode and press ENTER to conm and exit.
SLND - This will let you set unit as a master or slave in a
master/slave conguration.
1. Press the MENU button until “SLND” is displayed, press ENTER.
Either “MAST”, “SL 1”, or “SL 2” will be displayed.
2. Press the UP or DOWN buttons until your desired setting is dis-
played, press ENTER to conm.
NOTE: In a Master/Slave conguration you can set one xture to
Master and then set the next xture to “SL 2”, the xtures will now
have contrast movement to each other.
SHND - Show modes 0-4 (Factory programs). Show
mode can run with or without sound active mode active.
1. Press the MENU button until “SHND” is displayed, press ENTER.
Inno Pocket Spot LZR System Menu
