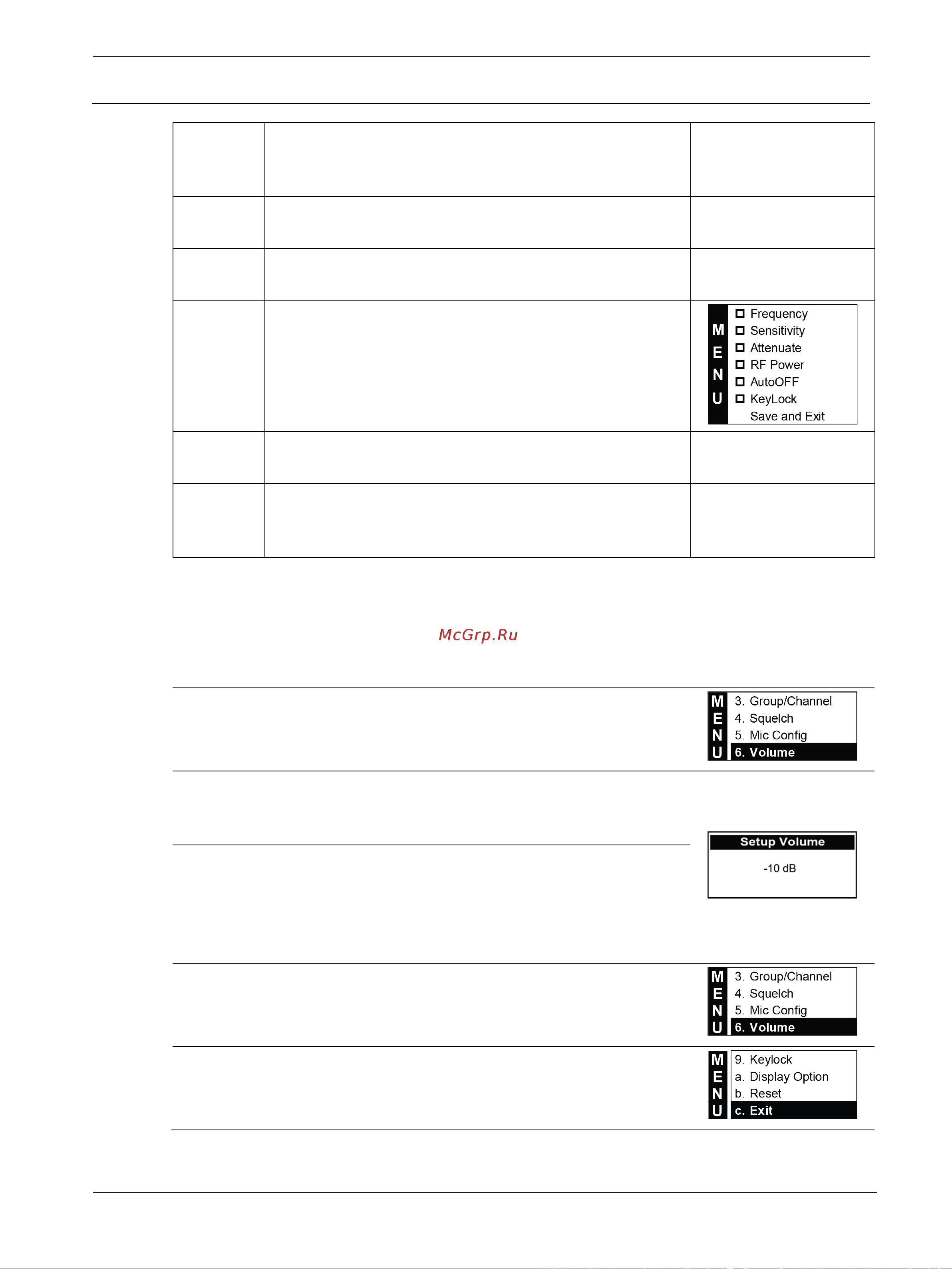

![ELECTRO VOICE RE3-BPHW-8M [31/72] Adjusting receiver volume](/views2/2008230/page31/bg1f.png)
RE3
UHF Wireless RE3-RX receiver | en 31
Electro
-Voice Installation manual 2018-12 | 01 |
F.01U.362.808
AutoOFF
Assigns a time period for the transmitter to automatically
turn off once mute is engaged to conserve battery life.
Off, 1 minute, 10
minutes, and 30
minutes
KeyLock
Prevents unwanted tampering with, or changes to
transmitter parameter settings.
Off or On
Mic
Display
Selects the tuning information displayed on the transmitter
home screen.
Freq. or GP/CH
SYNC
Config
Allows selection of MicConfig items synced to the
transmitter during SYNC operation. Scroll with the ▼ and
▲ buttons. Select or deselect using SET.
Save
Settings
Saves setting changes and exits to main menu.
Exit
Without
Save
Exits to the main menu without saving changes.
7.3.11 Adjusting receiver volume
Setting the receiver output gain through menu item 6, Volume sets the gain leaving the receiver
and arriving at the destination circuit; either a microphone preamp, or a line in preamp.
1
Press the ▼ button to scroll down to Volume from the main menu.
Select by pressing SET to enter the Volume screen.
2
The display shows the current volume setting in dB of attenuation
where 0 dB is the highest output volume, and -50 is the lowest
output volume before mute.
3
Use the ▲ and ▼ buttons to adjust to the desired volume.
Pressing ▲ increases the volume by 1 dB (press and hold the ▲
button quickly increases the value) and pressing ▼decreases the
volume by 1 dB (press and hold ▼ button quickly decreases the
value).
4 Press SET to save changes and return to main menu.
5
Either scroll ▼down to Exit and press SET, or briefly press SYNC
on the receiver front panel to return to the home screen.
