38
en |
RE3-HHT handheld transmitter
RE3 UHF
Wireless
2018
-12 | 01 | F.01U.362.808 Installation manual Electro-
Voice
14
▲ up button
This menu navigation button adjusts the value of an editable
parameter. Pressing the ▲ button will increase the displayed value of
the current parameter, or the next state condition value above the
displayed state value.
15
Display and control
section - Rear
The side opposite of the LCD display and the sliding navigation button
cover
16 Sync signal port
When syncing the transmitter to the receiver, aim the transmitter’s
unobstructed sync port directly toward the receiver’s sync emitter. A
direct line of sight is required. Maintain a distance between two inches
and twelve inches (or between 5cm and 30cm) for best sync
performance. The LED indicator (#10) flashes blue during the sync
operation and glows solid blue for three seconds when sync operation
is successful. The LED return to green after syncing.

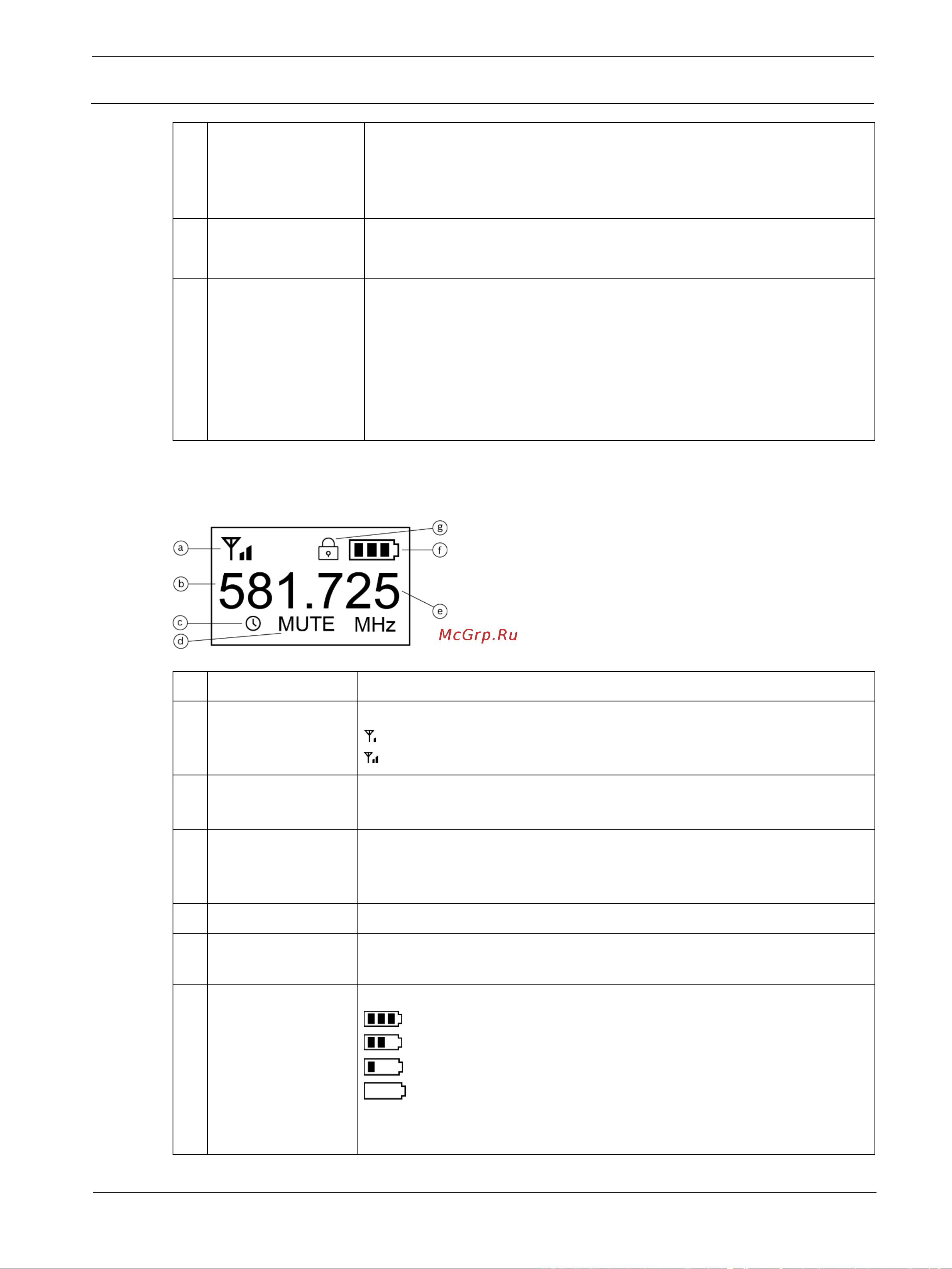

8.2 LCD display
ID
Item
Description, usage and notes
a RF power icon
The RF power indicator is always visible.
indicates RF power is set to low.
indicates RF power is set to high (band specific).
b Frequency in MHz
The portion of the tuned frequency to the left of the decimal in millions
when the transmitter home screen is set to Freq.
c AutoOff icon
The display shows this icon when auto off is engaged. It begins
flashing when the transmitter is muted indicating the countdown to
shutoff has begun.
d
Mute
The display shows MUTE only when the transmitter is muted.
e Frequency in kHz
The portion of the tuned frequency to the right of the decimal in
thousands when the transmitter home screen is set to Freq.
f Battery status icon
Indicates battery life.
= between 40% and 100% charge remains.
= between 20% and 39% charge remains.
= between 10% and 19% charge remains.
= below 10% charge remains.
BATTLo appears on the display and the empty cell icon begins flashing
when batteries are nearing empty.
