RE3
UHF Wireless RE3-BPT bodypack transmitter | en 45
Electro
-Voice Installation manual 2018-12 | 01 |
F.01U.362.808
Gently press the sliding magnetic battery door latch (item 6 shown above) downward to
unlock, while at the same time rotating the hinged battery door (item 8 shown above)
downward to fully open the battery compartment.
Install two fresh, high quality AA alkaline batteries (or fully charged AA size NiMH
rechargeable cells) paying close attention to match the polarity markings (+ and -) on each
battery to the polarity markings (+ and -) on the battery contacts.
Rotate the hinged battery door upward until the compartment door latches shut. The
magnetic latch will lock the compartment door.

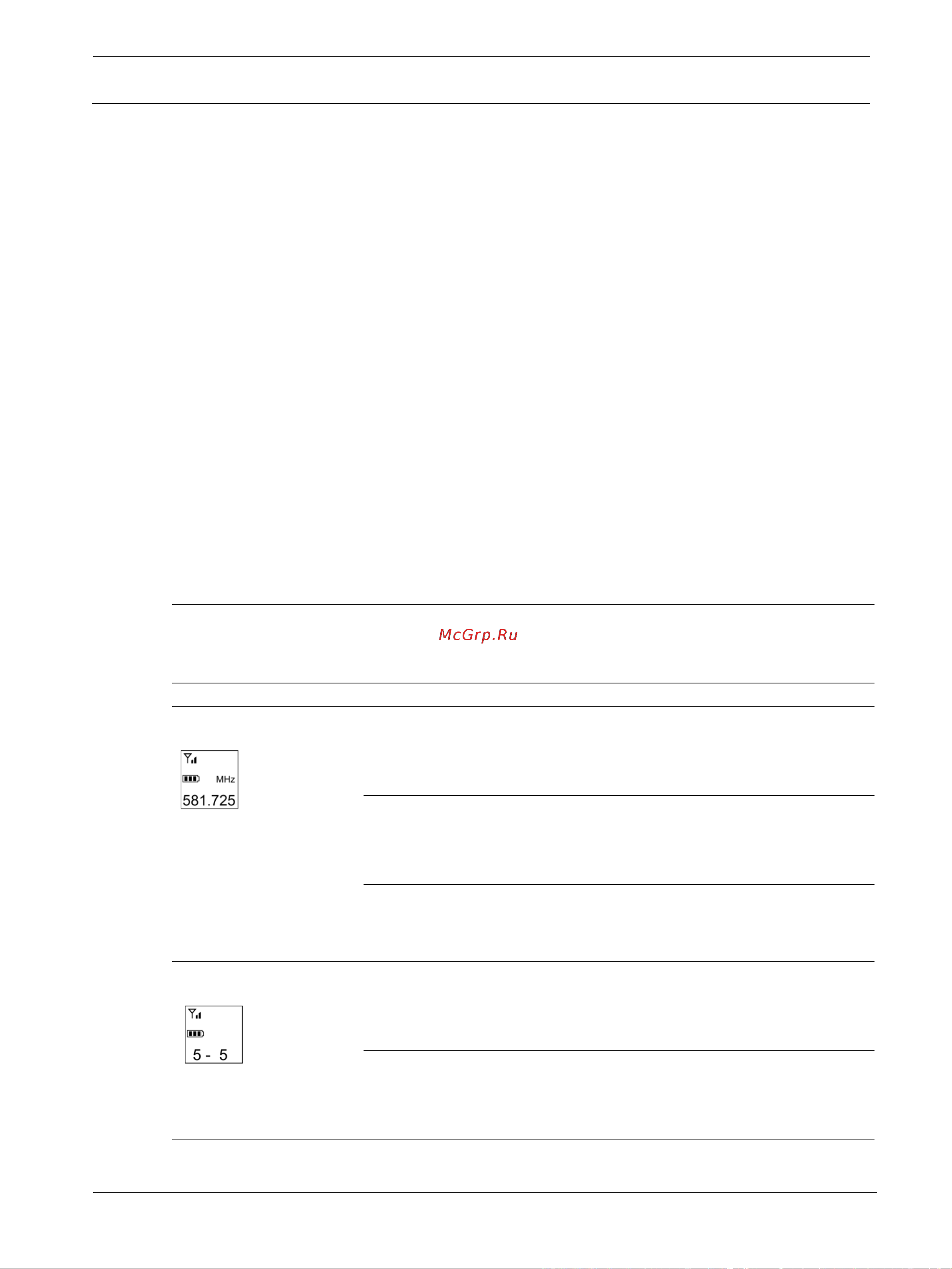

9.4 RE3-BPT Setup Menu
Editing any of the following parameters locally on the transmitter is possible. These edits will
override the settings synced from the mated receiver. Additionally, any parameter value changes
made locally on the transmitter may be overwritten the next time the transmitter is synced to the
mated receiver if those parameters are selected in the receiver’s sync configuration.
NOTE: No local edits will be possible if the transmitter is in Keylock mode (lock icon displayed).
See unlocking instructions below.
NOTE: Press and hold SET for three seconds to enter parameter edit mode. The frequency in
millions will begin flashing. Once in parameter edit mode, pressing SET multiple times will advance
through the adjustable parameters one parameter per press. The press and hold of SET to enter
parameter edit mode counts as the first SET button press.
Function
# of SET
button
presses
Result
Frequency setup
The three digits to the
left of the decimal are in
millions (MHz).
The three digits to the
right of the decimal are
in thousands (kHz).
1 Millions
▲ increases frequency in increments
of 1 MHz per press.
▼decreases frequency in increments
of 1 MHz per press.
2 Thousands
▲ increases frequency in increments
of 25 kHz per press.
▼decreases frequency in increments
of 25 kHz per press.
To save changes:
Press SET while thousands is flashing.
StorE is displayed / returns to home screen.
Group / Channel setup
The digit to the left of
the (-) is the group
number
3 G: #
▲ increases the group number (1-8) in
single digit increments.
▼decreases the group number (1-8) in
single digit increments.
4 CH: #
▲ increases the channel number (up
to 22) in single digit increments.
▼decreases the channel number (up
to 22) in increments of one.
