LINE 6 POD X3 [19/100] Pick a stomp model and tweak it
![LINE 6 POD X3 [19/100] Pick a stomp model and tweak it](/views2/2009069/page19/bg13.png)
Tutorials
2•3

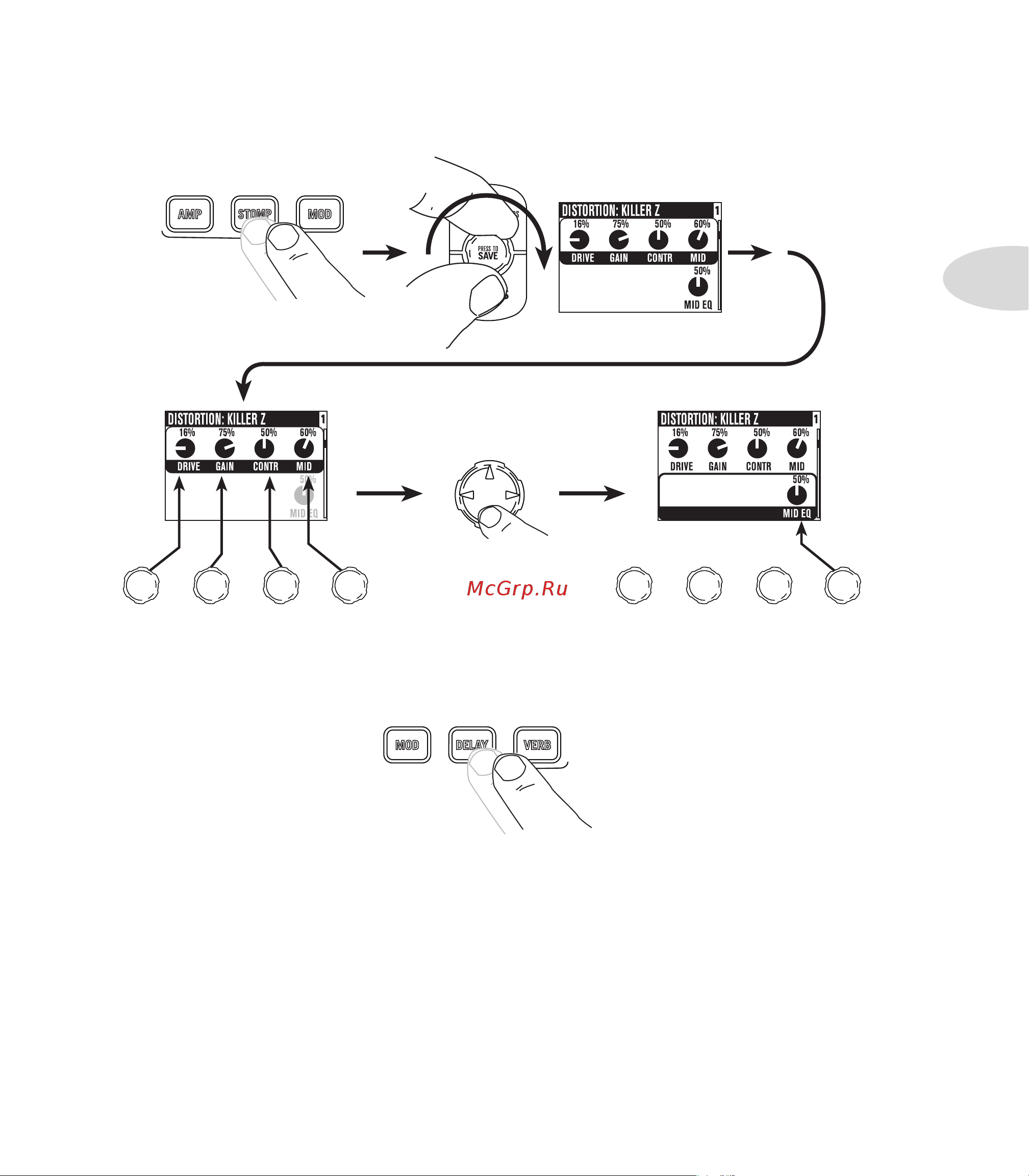

7. Pick a Stomp Model and tweak it.
Double-press
Turn to select DISTORTION: KILLER Z
Turn to tweak upper row settings. Turn to tweak lower row settings.
Press down to select
lower row.
8. Show the Delay settings.
Double-press
DOUBLE-PRESS TO ADJUST
