LINE 6 POD X3 [20/100] Select the eq

Tutorials

2•4

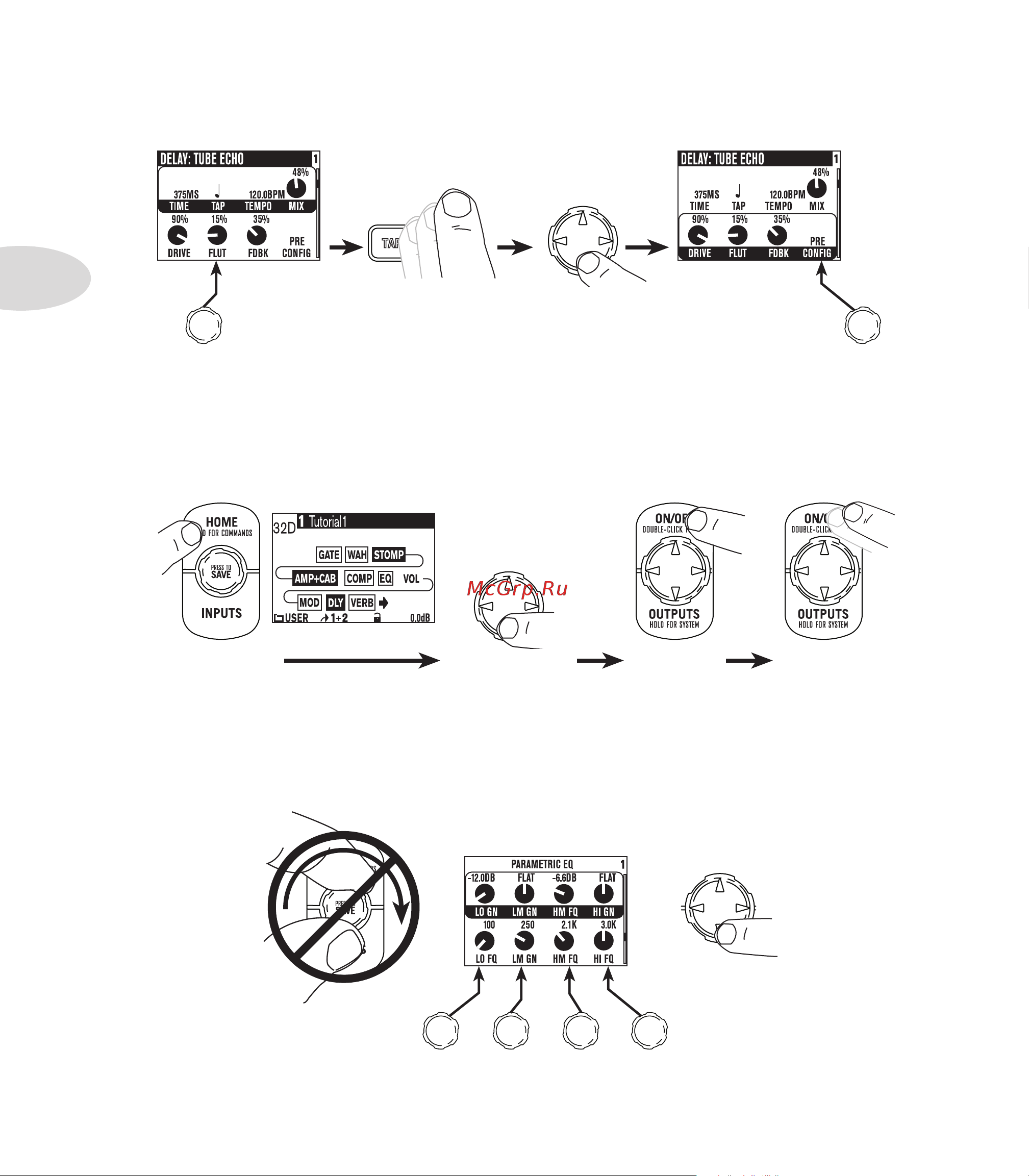

9. Set the Delay tempo, and set it to run post (after the Amp Model).

Ta p is set to

quarter note.

Set CONFIG

to post.

Tap delay tempo

Press down

to select

lower row.

10. Select the EQ.

Press to show

the Home Page.

Press up/down/left/

right to select EQ.

Press to turn

EQ on/off.

Double-press

to show EQ

settings.

11. Tweak the EQ.

There is no model

select for EQ.

Press up/down to

select upper/lower

row.
