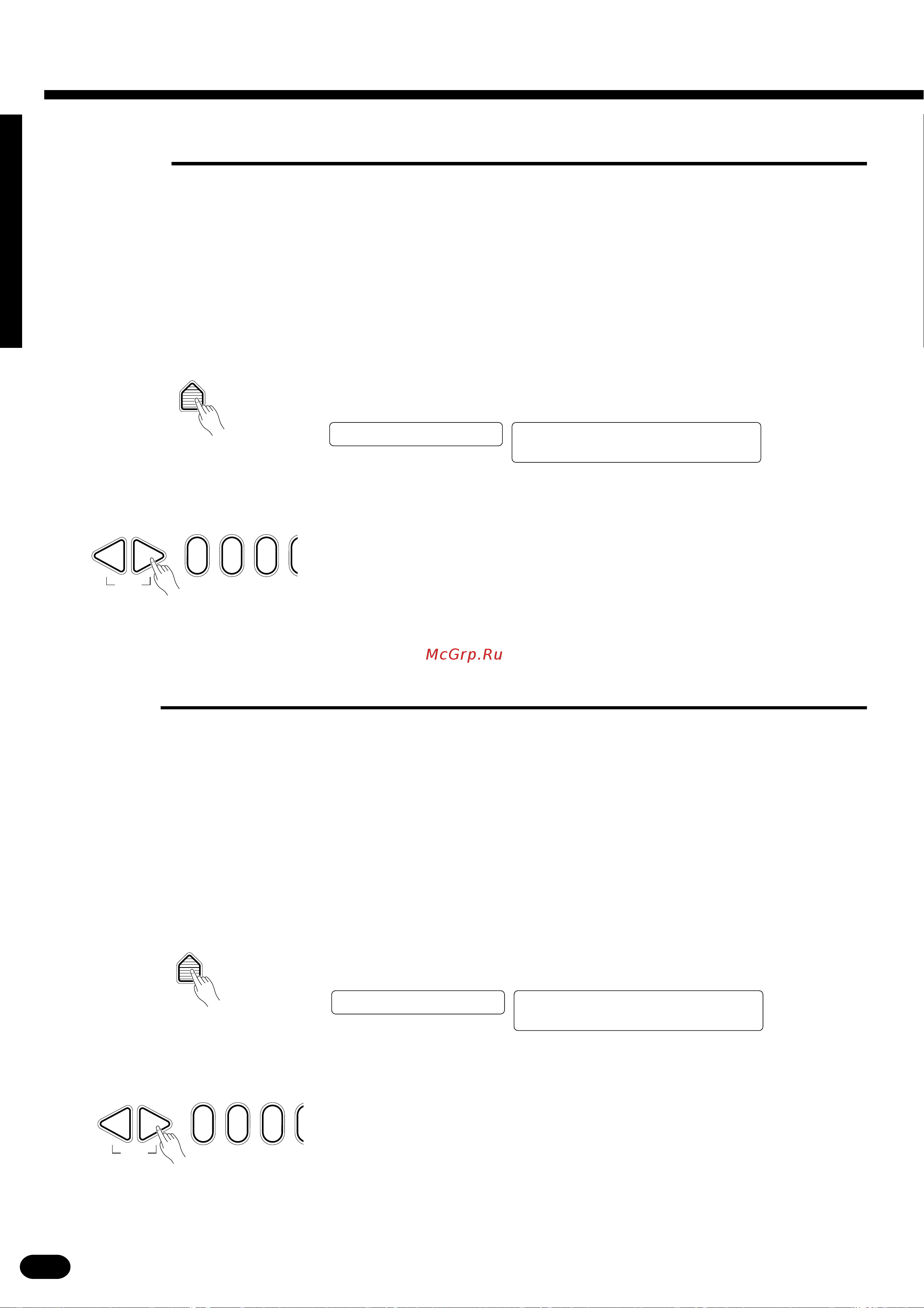

Selecting & Playing the Voices
■Volume
You can individually set the volume of each orchestration part to set up the ideal balance between parts.
ZSelect the Part You Want to Edit...........................................................................................................
Use the ORCHESTRATION [EDIT] button to select the part you want
to edit.
■Octave
You can individually shift the octave of each orchestration part up or down by up to two octaves. This makes
it easy, for example, to lower the pitch of a bass voice to an appropriate octave without affecting the other parts
in your orchestration.
ZSelect the Part You Want to Edit...........................................................................................................
Use the ORCHESTRATION [EDIT] button to select the part you want
to edit.
CSet the Octave ........................................................................................................................................
Use the [+] and [–] buttons, the number buttons, the data dial, or the
[OCTAVE] button itself to set the desired octave. The octave range is from
–2 (down two octaves) to +2 (up two octaves). The normal octave value for
the selected voice can be recalled instantly by pressing both the [+] and [–]
buttons at the same time.
XPress the [VOL] Button ..........................................................................................................................
Press the VOICE control section [VOL] button. The current volume
value of the selected part will appear on the LCD display panel.
VOL
PSR-2700PSR-1700
CSet the Volume .......................................................................................................................................
021
–+
RESET
Use the [+] and [–] buttons, the number buttons, the data dial, or the
[VOL] button itself to set the desired volume. The volume range is from 00
(no sound) to 24 (maximum volume). The default volume value (21) can be
recalled instantly by pressing both the [+] and [–] buttons at the same time.
XPress the [OCTAVE] Button ..................................................................................................................
OCTAVE
Press the VOICE control section [OCTAVE] button. The current octave
value of the selected part will appear on the LCD display panel.
PSR-2700PSR-1700
021
–+
RESET
08:Showtune 001:GrandPno
AccOff Volume=2–1
Volume=2–1
08:Showtune 001:GrandPno
AccOff Octave= 0–
Octave= 0–
