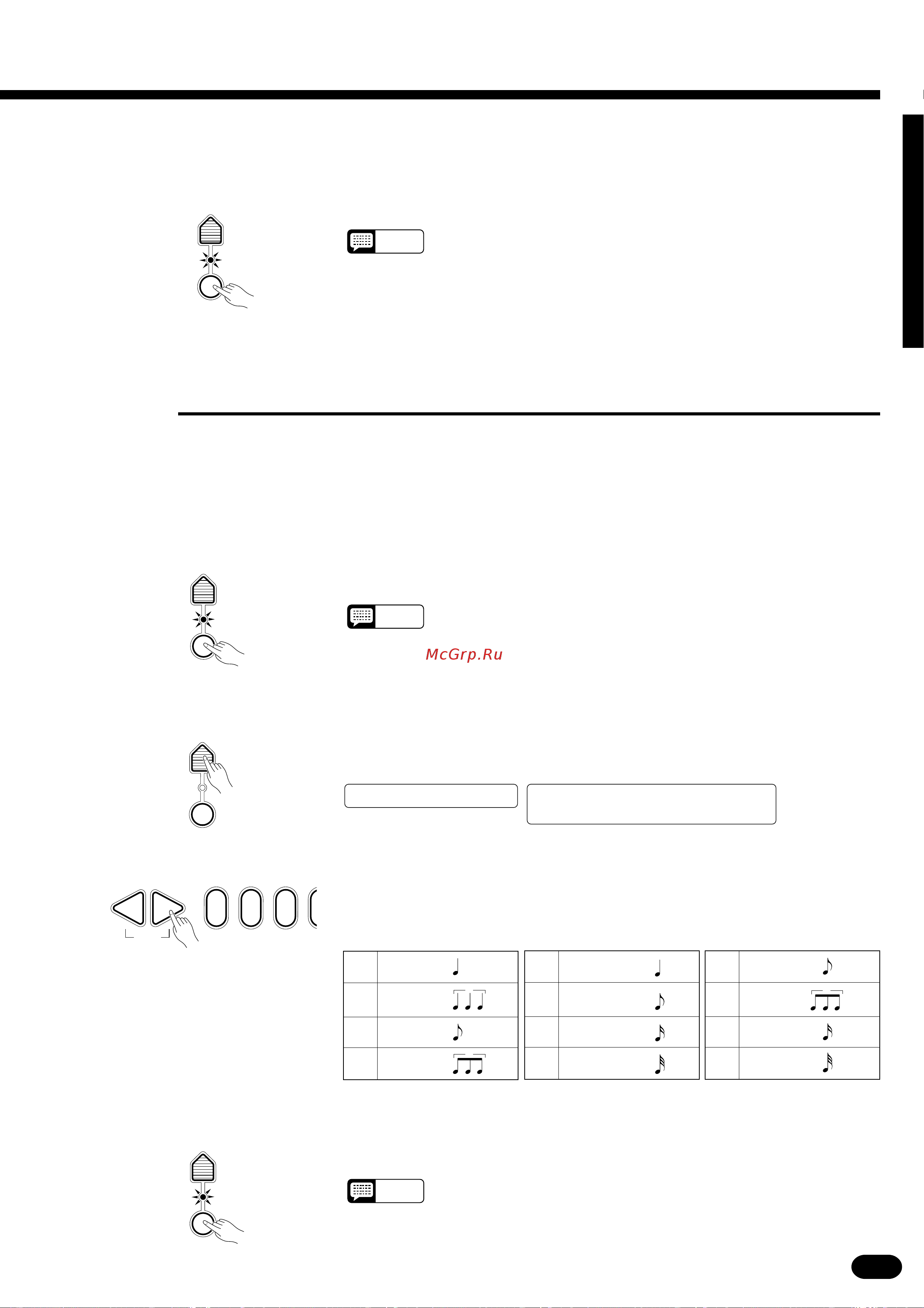

Yamaha PSR-2700 [19/94] Effects
![Yamaha PSR-2700 [19/94] Effects](/views2/2009430/page19/bg13.png)
17
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
VTurn Auto Harmony ON or OFF as Required .......................................................................................
■Effects
The PSR-1700 and PSR-2700 have a range of 12 delay-based effects — in addition to the DSP effects (pages
15 and 22) — that can be selected and applied to the right-hand orchestration parts (the left-hand orchestration
parts are not affected).
ZTurn the Effect ON..................................................................................................................................
Use the [HARMONY] button to turn Auto Harmony ON or OFF. Auto
Harmony is ON when the [HARMONY] button indicator is lit.
NOTES
• Only a single note can be played at a time on the keyboard (or the
right-hand section of the keyboard) when the Auto Harmony feature is
used.
• If you play more than one note at the same time while Auto Harmony
is ON, only the highest note will sound.
• Auto Harmony will only function when the Auto Accompaniment func-
tion is being used (page 24).
XPress the [EFFECT TYPE] Button .........................................................................................................
Press the VOICE control section [EFFECT TYPE] button. The number
of the currently selected effect will appear on the LCD display panel.
CSelect an Effect.......................................................................................................................................
Use the [+] and [–] buttons, the number buttons, the data dial, or the
[EFFECT TYPE] button itself to select the desired effect.
HARMONY
TYPE
HARMONY
EFFECT
TYPE
EFFECT
EFFECT
TYPE
EFFECT
PSR-2700PSR-1700
021
–+
RESET
Press the [EFFECT] button so that its indicator lights. This turns ON
the effect.
NOTES
• The EFFECT can’t be engaged when Keyboard Percussion is ON.
Eff.=0–4:Echo4
08:Showtune 001:GrandPno
AccOff Eff.=0–4:Echo4
01 Echo 1
02 Echo 2
03 Echo 3
04 Echo 4
3
3
05 Tremolo 1
06 Tremolo 2
07 Tremolo 3
08 Tremolo 4
09 Trill 1
10 Trill 2
11 Trill 3
12 Trill 4
The Effects
VTurn the Effect ON or OFF as Required ...............................................................................................
Use the [EFFECT] button to turn the effect ON or OFF. The selected
effect is ON when the [EFFECT] button indicator is lit.
NOTES
• You can change the effect type whether the effect is ON or OFF.
EFFECT
TYPE
EFFECT
3
