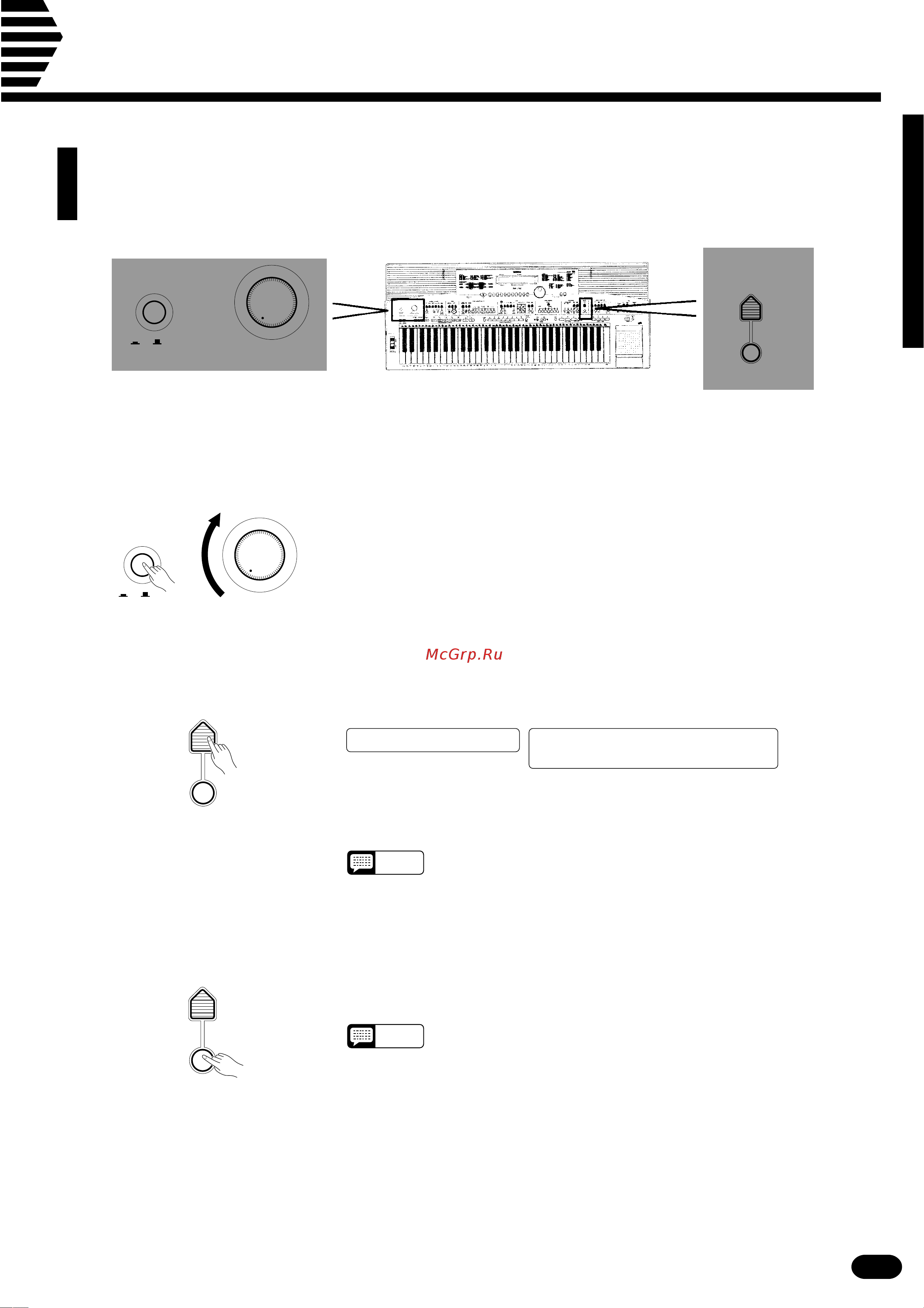

Once you’ve set up your PSR-1700/PSR-2700, try listening to the pre-programmed demonstra-
tion songs — they’ll give you a good idea of what the PSR-1700/PSR-2700 can do!
ZTurn the Power ON & Set the Volume ..................................................................................................
VPress DEMO [START/STOP] to Stop ....................................................................................................
Press the DEMO [START/STOP] button again to stop demo playback.
Before playing the demo turn the power ON by pressing the POWER
switch (the panel indicators and LCD display panel will light), and turn the
MASTER VOLUME control up (clockwise) about a quarter-turn from its
minimum position.
Listen to the Demo!
POWER
ON/ OFF
MASTER VOLUME
MIN MAX
DEMO
SONG #
START/STOP
XSelect a Song ..........................................................................................................................................
DEMO
SONG #
START/STOP
POWER
ON/ OFF
MASTER VOLUME
MIN MAX
CPress DEMO [START/STOP] to Start ....................................................................................................
Press the DEMO [START/STOP] button to start playback, and use the
MASTER VOLUME control to set the ideal listening level. The selected
demonstration will play repeatedly.
NOTES
• During demo playback you can select different voices and play along
on the keyboard — see the “Selecting & Playing the Voices” section
beginning on page 11.
Press the DEMO [SONG #] button a few times until the number of the
desired demo song appears on the LCD display.
0 (ChainPlay): Repeat playback of all demo songs in sequence.
1-8: Repeat playback of the selected demo song number.
NOTES
• “0:ChainPlay” is automatically selected whenever the power switch is
turned on.
PSR-2700PSR-1700
DEMO
SONG #
START/STOP
Demo=0–:ChainPlay
08:Showtune 001:GrandPno
AccOff Demo=0–:ChainPlay
