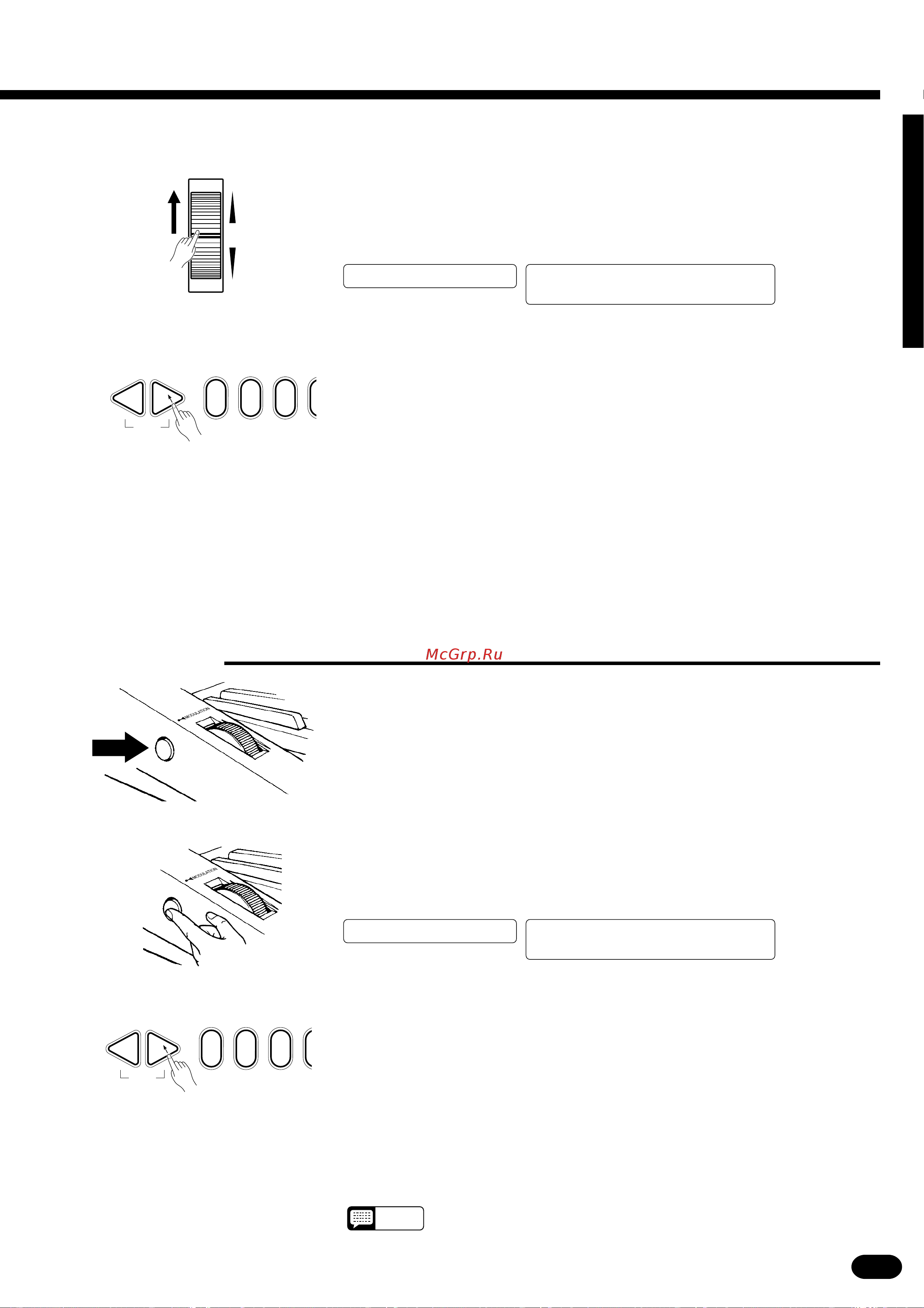

19
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
To set the pitch bend range, roll the PITCH BEND wheel all the way in
either direction so that the current range value appears on the LCD display
panel.
ZCall the Pitch Bend Range Parameter ..................................................................................................
PSR-2700PSR-1700
PITCH BEND
+
–
XSet the Pitch Bend Range......................................................................................................................
While holding the PITCH BEND wheel at its maximum position, use
the [+] and [–] buttons, the number buttons, or the data dial to select the
desired pitch bend range. Use the [+/–] button to enter negative values. The
pitch bend range value is displayed in semitones (–12 through 12). If a mi-
nus setting is selected pitch bend wheel operation is reversed — i.e. roll the
wheel away from you to lower pitch. The default pitch bend range (02) can
be instantly recalled by pressing [+] and [–] buttons simultaneously.
CRelease the PITCH BEND Wheel ...........................................................................................................
Release the PITCH BEND wheel when you’ve set the required pitch
bend range.
021
–+
RESET
P.B.Range=+–02
08:Showtune 001:GrandPno
AccOff P.B.Range=+–02
■Modulation
The MODULATION button on the side panel of the instrument, next to
the PITCH BEND wheel, can be used to apply pitch modulation (vibrato) to
most voices. The modulation speed is preset for each voice, but the depth
can be set as required.
ZCall the Modulation Depth Parameter ..................................................................................................
To set the modulation depth, press and hold the MODULATION button
so that the current depth value appears on the LCD display panel.
PSR-2700PSR-1700
Mod.Depth=2– 08:Showtune 001:GrandPno
AccOff Mod.Depth=2–
XSet the Modulation Depth ......................................................................................................................
While holding the MODULATION button, use the [+] and [–] buttons,
the number buttons, or the data dial to select the desired modulation depth.
The available modulation depth range is from 1 (minimum depth) to 3
(maximum depth).
021
–+
RESET
CRelease the MODULATION Button .......................................................................................................
Release the MODULATION button when you’ve set the required
modulation depth.
NOTES
• The same modulation depth setting may produce slightly different
effects with different voices.
