15
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |

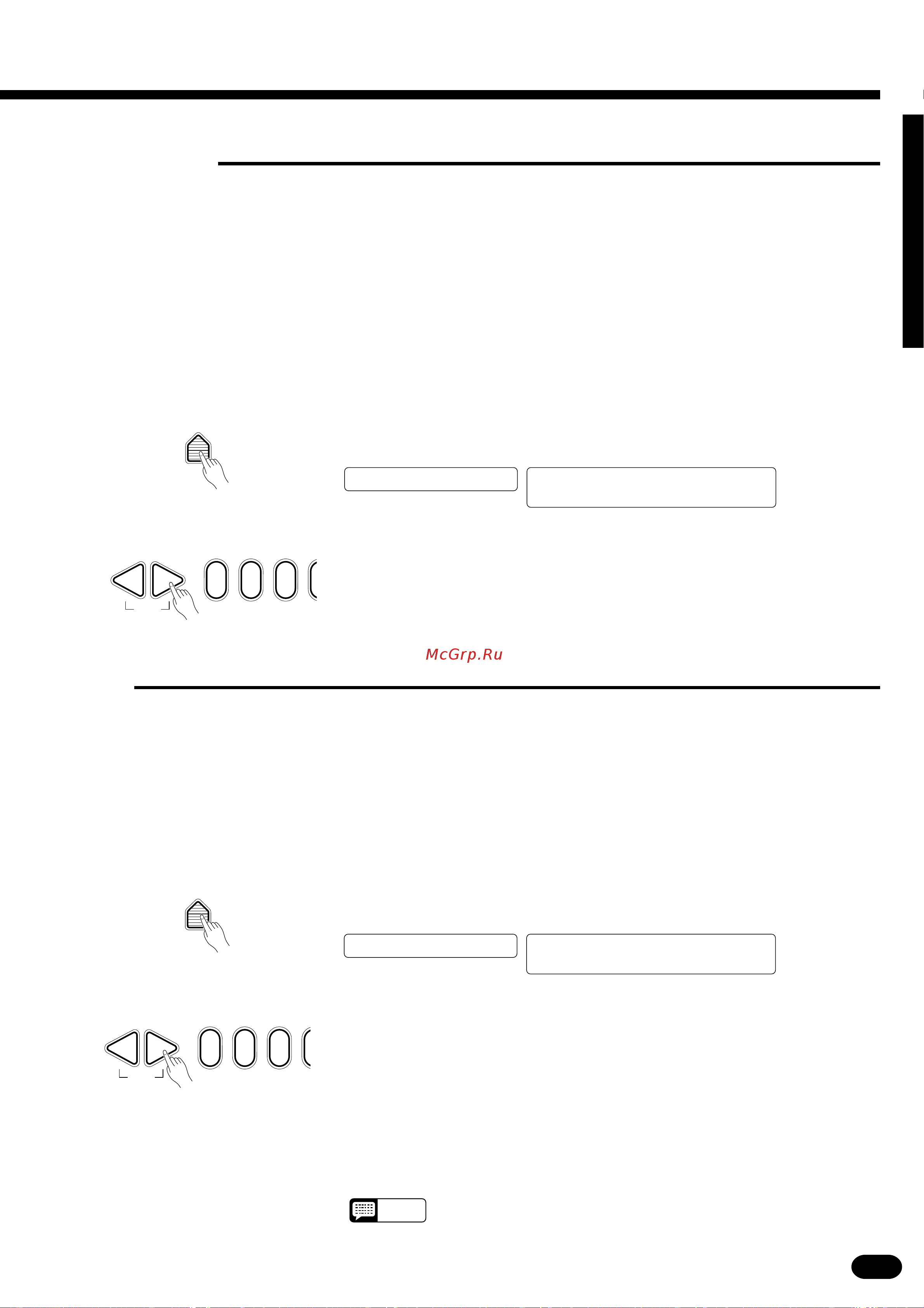

■DSP Depth
The PSR-1700 and PSR-2700 features a built-in digital signal processor (DSP) that can be used to apply a
range of reverb and delay effects to the voices. The [DSP TYPE] button in the OVERALL CONTROL section
(page 22) determines the type of effect to be applied, while the VOICE section [DSP DEPTH] button lets you
individually set the amount of effect applied to each orchestration part.
ZSelect the Part You Want to Edit...........................................................................................................
CSet the DSP Depth ..................................................................................................................................
021
–+
RESET
XPress the [DSP DEPTH] Button.............................................................................................................
DSP
DEPTH
PSR-2700PSR-1700
■Pan
The PSR-1700 and PSR-2700 delivers true stereo sound, and you can use this parameter to individually set
the stereo (pan) position of each orchestration part to create a broad stereo image of your sound.
ZSelect the Part You Want to Edit...........................................................................................................
Use the ORCHESTRATION [EDIT] button to select the part you want
to edit.
XPress the [PAN] Button..........................................................................................................................
PAN
Press the VOICE control section [PAN] button. The current pan value of
the selected part will appear on the LCD display panel.
CSet the Pan Position...............................................................................................................................
021
–+
RESET
Use the [+] and [–] buttons, the number buttons, the data dial, or the
[PAN] button itself to set the desired pan value. The pan range is from –7
(full left) to +7 (full right). A setting of “0” places the sound of the selected
part in the center of the stereo sound field. Other settings produce in-be-
tween positions. “–4”, for example, would place the sound between center
and full left.
The center pan position (0) can be recalled instantly by pressing both the
[+] and [–] buttons at the same time.
NOTES
• The new pan value will apply from the next note played — i.e. you
can’t pan the sound of a note while it is playing.
Use the [+] and [–] buttons, the number buttons, the data dial, or the
[DSP DEPTH] button itself to set the desired DSP depth. The depth range
is from 00 (OFF: no effect, direct sound only) to 15 (maximum effect).
The default DSP depth value (06) can be recalled instantly by pressing
both the [+] and [–] buttons at the same time.
Press the VOICE control section [DSP DEPTH] button. The current
DSP depth value of the selected part will appear on the LCD display panel.
Use the ORCHESTRATION [EDIT] button to select the part you want
to edit.
DSP Depth=0–6
08:Showtune 001:GrandPno
AccOff DSP Depth=0–6
PSR-2700PSR-1700
Panpot= 0–:Center
08:Showtune 001:GrandPno
AccOff Panpot= 0–:Center
