If the MAIN A section is playing, for example, the
[A] indicator will flash while FILL IN 1 or the
BREAK plays, and the [B] indicator will flash while
FILL IN 2 plays. You can change the section that will
begin playing after the selected fill-in or break by
pressing the desired section button while the indicator
is still flashing.
VARIATION
A B
FILL IN 1 FILL IN 2 BREAK
NOTES
• If you hold the [FILL IN 1], [FILL IN 2] or [BREAK] button, the fill-in or
second measure of the break pattern will repeat until the button is
released, then the MAIN A or B section will play from the beginning of
the next measure.
• If the [FILL IN 1], [FILL IN 2] or [BREAK] button is pressed after the
last beat of a measure, the fill-in or break will begin from the first beat
of the next measure. If pressed at any other time the fill-in or break will
begin immediately.
• It is also possible to start the accompaniment with a fill-in or break by
pressing the desired fill-in or break button prior to pressing the
[START/STOP] button. The destination MAIN [A] or [B] section can be
selected in the normal way.
● Stopping the Accompaniment...............................................................................................................
An accompaniment in progress can be stopped immediately by pressing
the [START/STOP] button or the [SYNC-START/STOP] button. In the
latter case the synchro start mode will be engaged when the accompaniment
stops. The accompaniment can also be stopped with an appropriate ending
by pressing the [ENDING] button. The endings for the MAIN [A] and [B]
sections are different. The A ending has no chord progression while the B
ending has its own chord progression. The actual format of the ending,
however, depends on the selected style.
NOTES
• The ending will begin from the first beat of the next measure.
• If the [FILL IN 1], [FILL IN 2], or [BREAK] button is pressed while the
ending pattern is playing, a fill-in or break will be played, followed by a
return to the MAIN A or B pattern.
START/STOP ENDINGSYNC-START/STOP

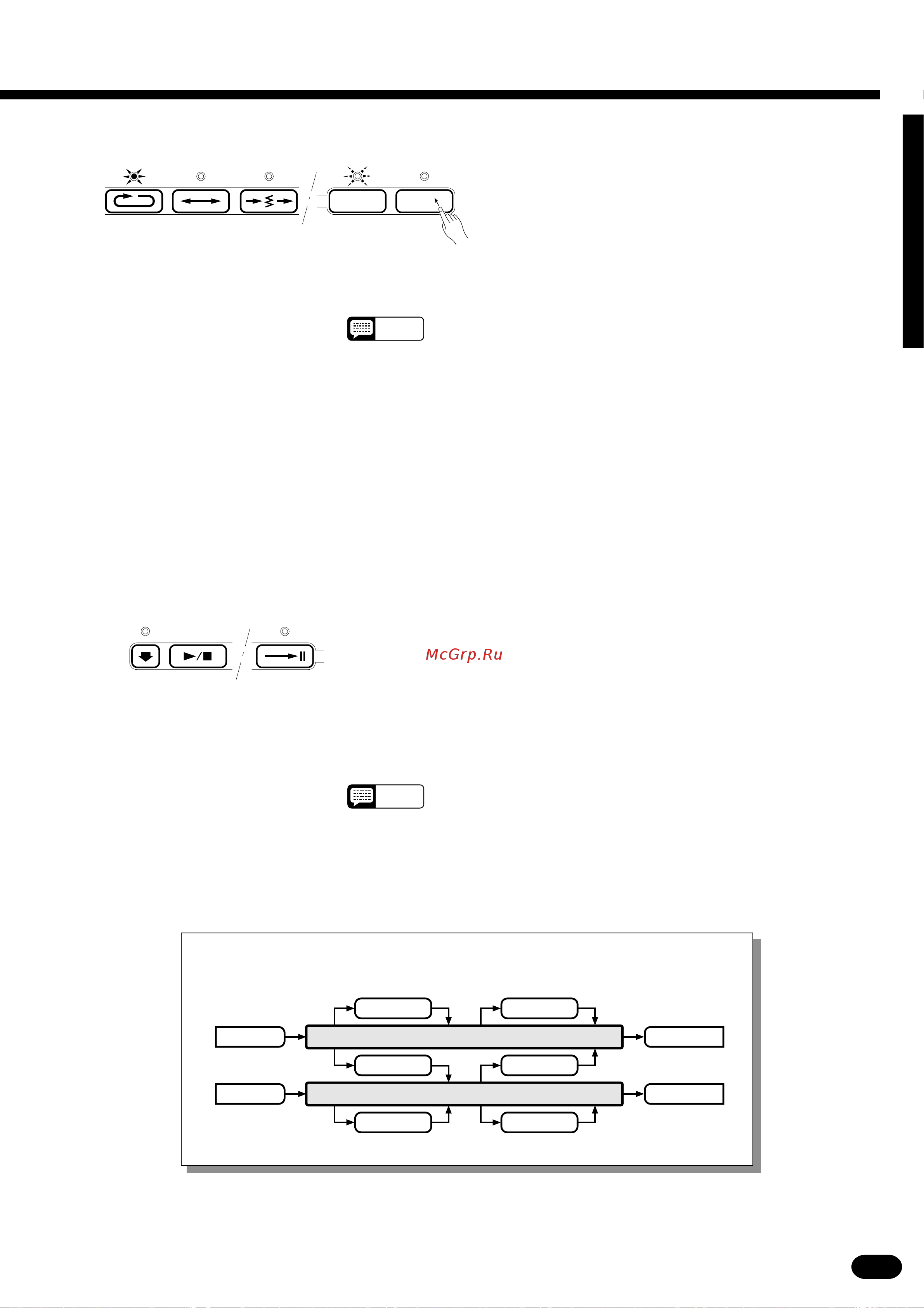

Accompaniment Structure Diagram
ENDING A
ENDING B
INTRO A
INTRO B
FILL 1 A
FILL 2 A
FILL 1 B
BREAK A
FILL 2 B
BREAK B
MAIN B
MAIN A
