DMX Personalities

The Intimidator Spot 110 has two DMX personalities, a 12-channel personality, and a 6-channel

personality.

To select a DMX personality, follow the instructions below.

1. Press <MENU> repeatedly until ChMd shows on the display.

2. Press <ENTER>.

3. Use <UP> or <DOWN> to select the DMX personality, from 6Ch or 12Ch.

4. Press <ENTER>.

DMX Channel Assignments and Values

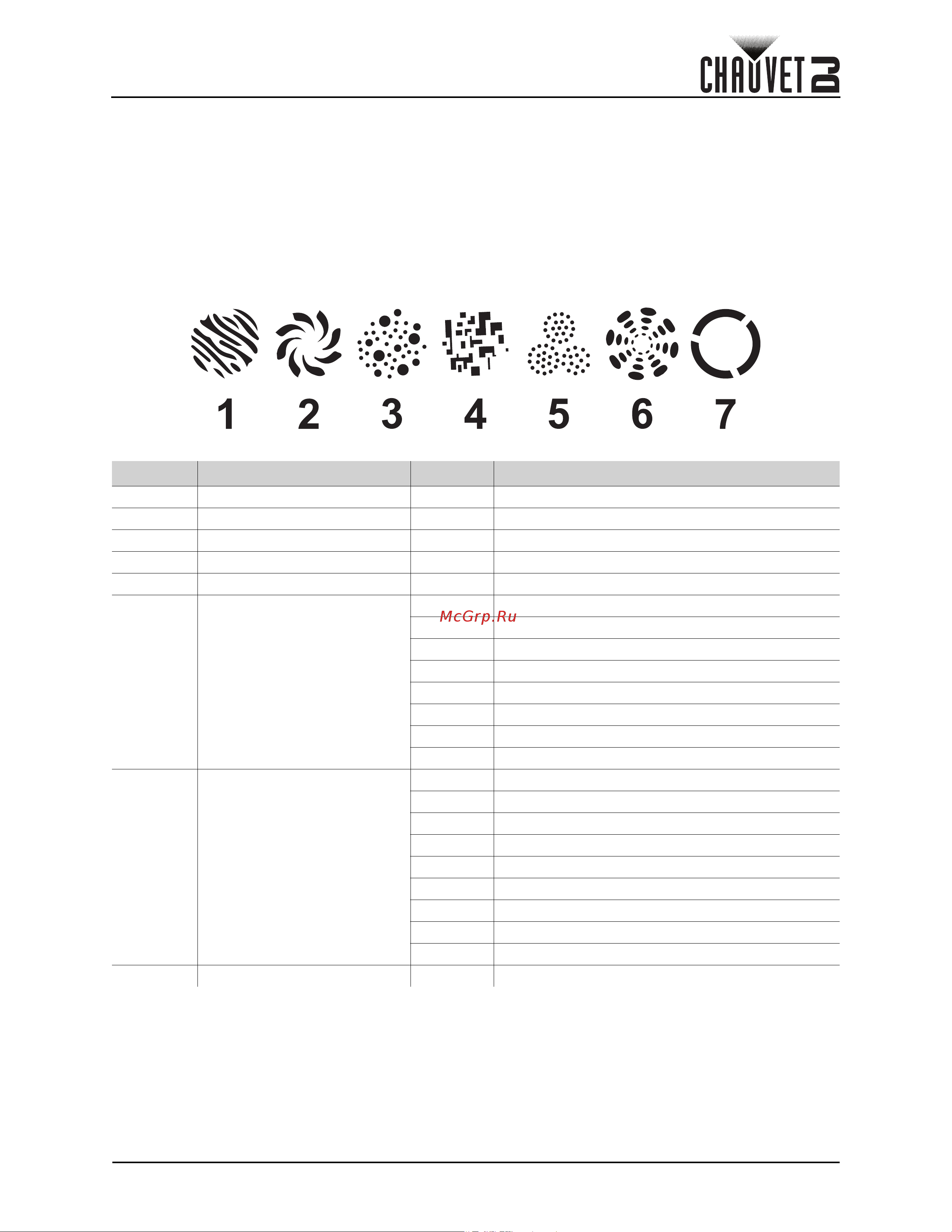

Gobos

12Ch

Channel Function Value Percent/Setting

1 Pan 000  255 0–540°

2 Fine Pan 000  255 Fine control of panning

3Tilt 000  255 0–270°

4 Fine Tilt 000  255 Fine control of tilting

5 Pan/Tilt Speed 000  255 Pan/Tilt speed, fast to slow

6 Color Wheel

000  031 Open

032  063 Color 1

064  095 Color 2

096  127 Color 3

128  159 Color 4

160  191 Color 5

192  223 Color 6

224  255 Color 7

7 Strobe

000  015 On

016  131 Strobe, slow to fast

132  139 On

140  181 0–100%, slow to fast

182  189 On

190  231 100–0%, slow to fast

232  239 On

240  247 Random strobe

248  255 On

8 Dimmer 000  255 0–100%
