Gaggenau CG 492 [21/48] Installing the cooker

• Before installation, remove all styrofoam

packaging from the control knobs and peel off

the protective film.

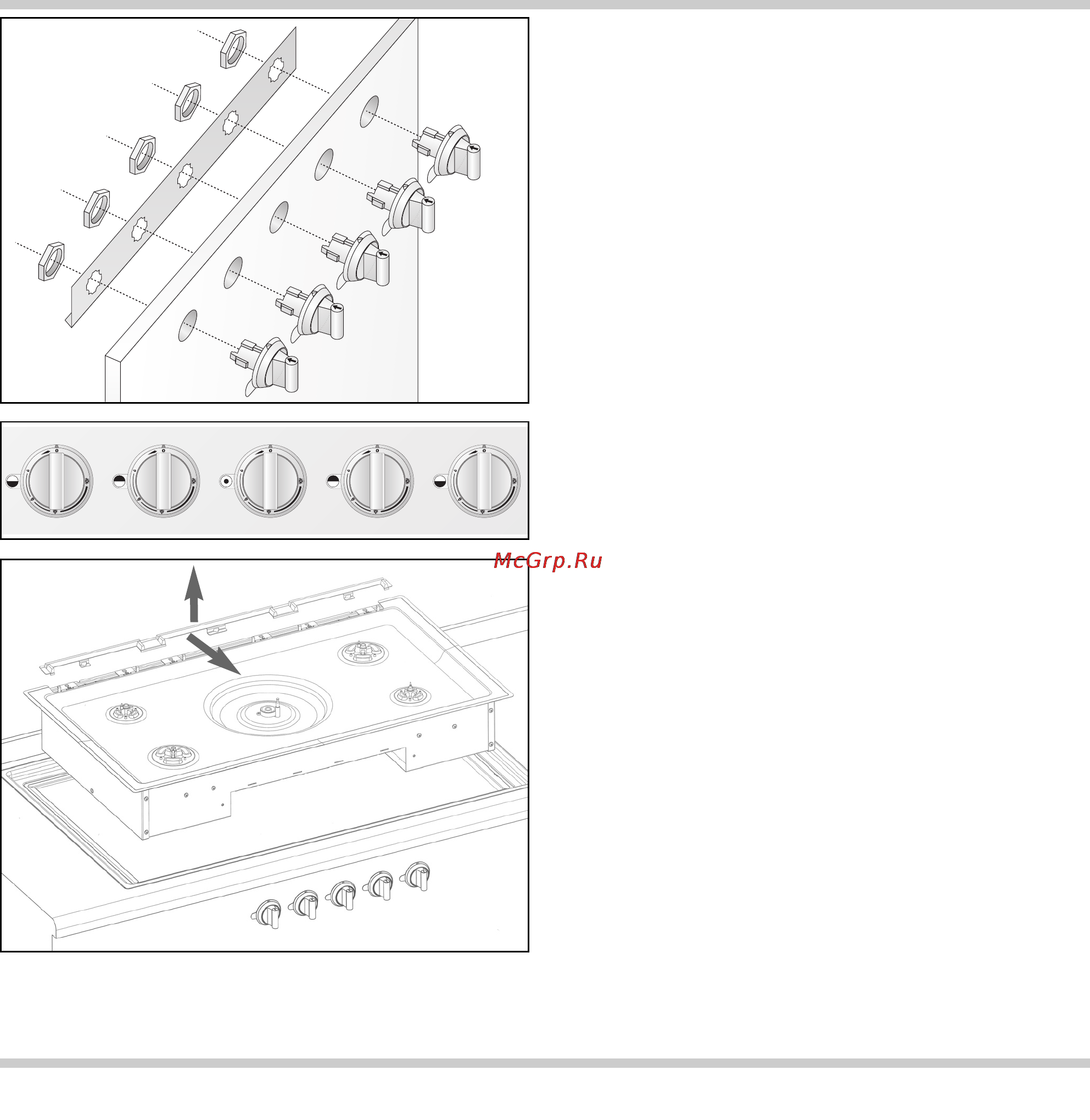

• Hold the support plate from the rear against the

cabinet front (make sure the angled edge of the

support plate is on the bottom), insert control

knobs into the holes, secure from the rear with the

nuts. Take care to install control knobs in the

correct order.

Please note: if you want to convert the appliance

to a different type of gas, change the nozzles

before installing the appliance (see user manual).

• Insert the supporting frame into the cut-out and

align it centrally. Secure the appliance with the

clamping screws included.

• Place the decorative frame onto the supporting

frame. Be careful to align the decorative frame

level with the worktop. If necessary, adjust the

clamping screws.

For alignment you can take off the decorative

frame and use the metal adjusting piece included

(thickness 1 mm). Slide the adjusting piece along

the frame and make sure the adjusting piece is

level with the worktop.

• Stick the sealing tape along the marker points

onto the rear part of the decorative frame.

• Detach the sealing strip at the back of the

appliance: loosen 3 screws and take off the

sealing strip forward

 and then up  .

• Undo trough securing nuts and carefully detach

the trough.

• Horizontally insert the trough into the supporting

frame and align. Screw the trough onto the

supporting frame at the 4 marked points.

Installing the Cooker




