FUEL SYSTEM (DFI) 3-83

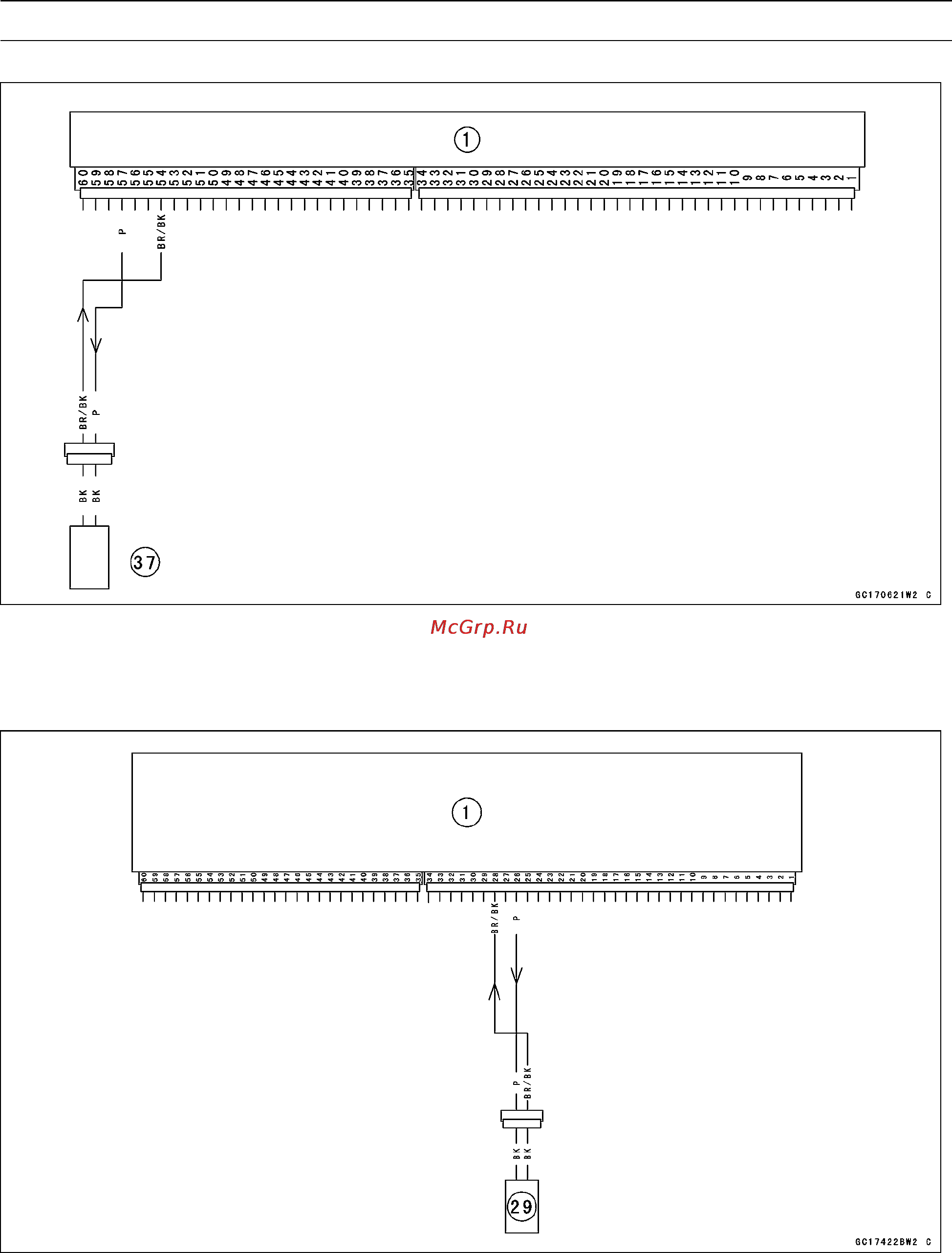

Inlet Air Temperature Sensor (Service Code 13)
ZX1200-B1/B2
→: Signal ECU [1] Inlet Air Temperature Sensor [37]
ZX1200-B3
→: Signal ECU [1] Inlet Air Temperature Sensor [29]
