16-38 ELECTRICAL SYSTEM
Ignition System
2nd Check
Raise the rear wheel off the ground w ith a stand.
•
Inspect the engine for its secure stop after the following
operations are completed.
•
Run the engine to the following conditions.
Condition
Transmission Gear → 1st Position
Clutch Lever → Pull in
Side Stand → Up or Down
•
Gradually release the clutch lever, then the engine w ill
stop.
•
Run the engine to the following conditions.
Condition
Transmission Gear → 1st Position
Clutch Lever → Release
Side Stand → Up
•
Set the side stand on the ground, then the engine will
stop.
If whichever may not be stopped, inspect the gear posi-
tion switch, starter lockout switch, side stand switch and
junction box.
If their parts are normality, replace the ECU.
IC Igniter Inspection
○

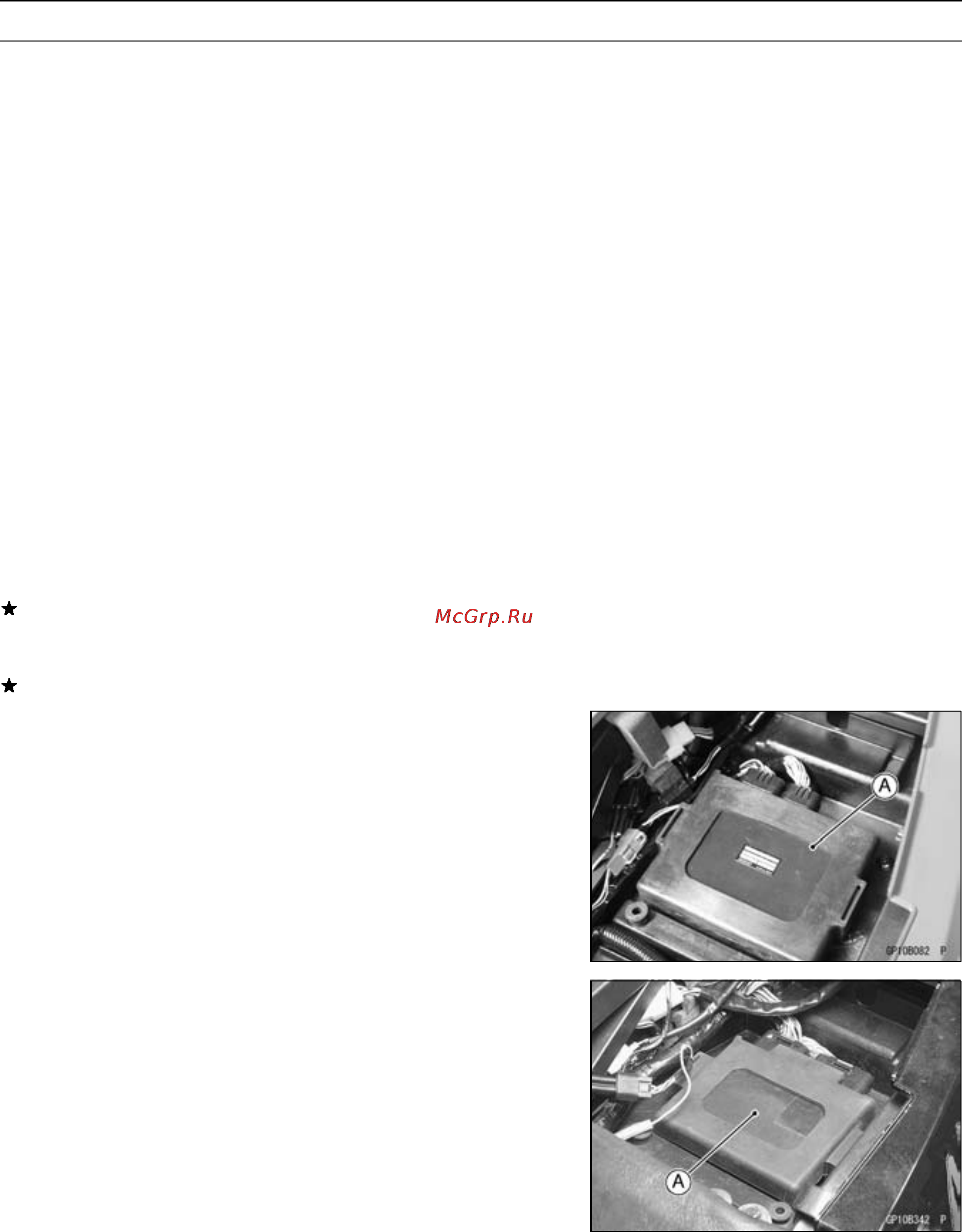

The IC igniter is built in the ECU [A].
•
Refer to the Interlock Operation Inspection, Ignition Sys-
tem Troubleshooting chart and Fuel System (DFI) chapter
for ECU Inspection.
