14-2 STEERING

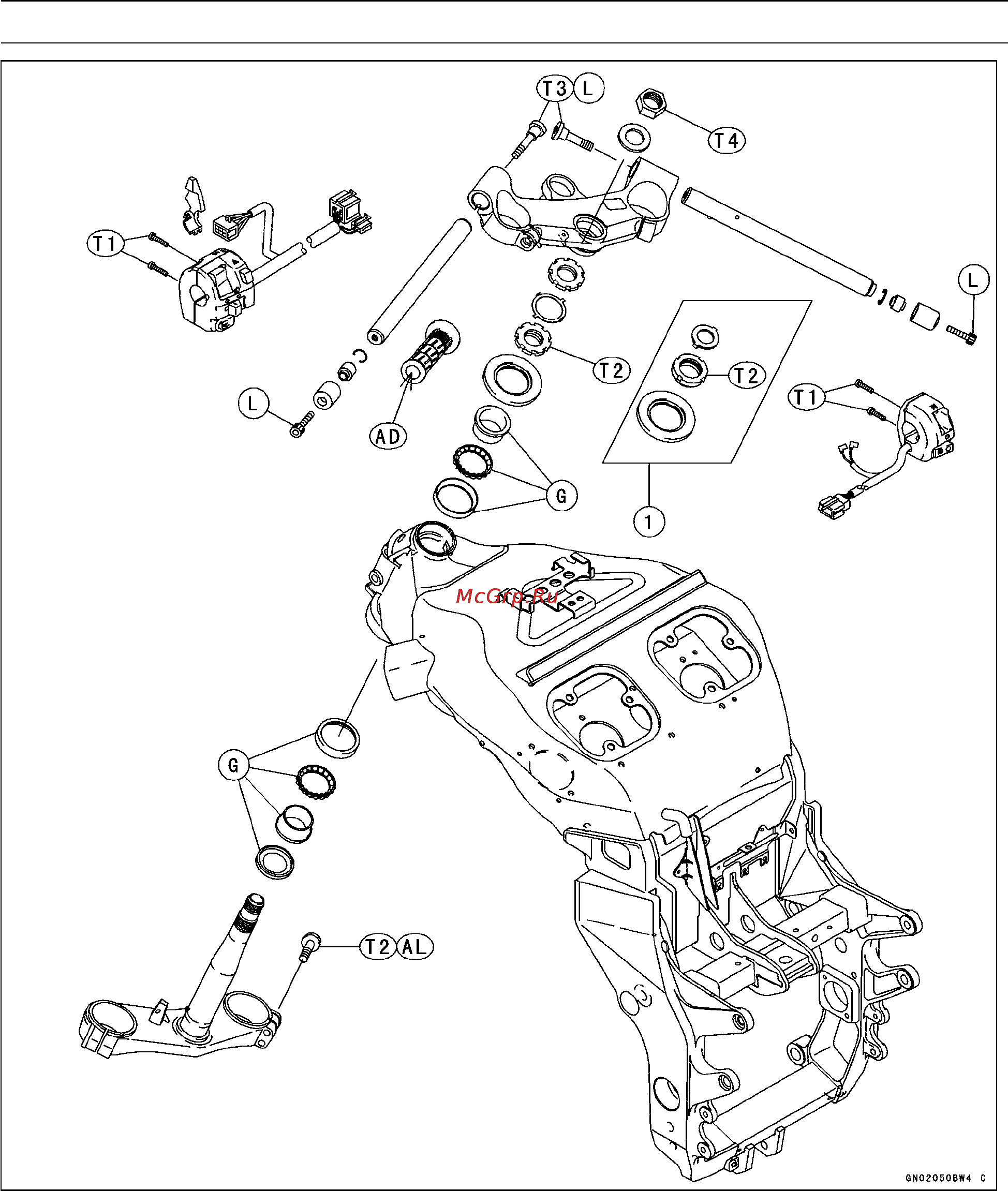

Exploded View
1. ZX1200-B1/B2
T1: 3.5 N·m (0.36 kgf·m, 31 in·lb)
T2: 20 N·m (2.0 kgf·m, 15 ft·lb)
T3: 34 N·m (3.5 kgf·m, 25 ft·lb)
T4: 54 N·m (5.5 kgf·m, 40 ft·lb) (ZX1200-B1/B2)
78 N·m (8.0 kgf·m, 57 ft·lb) (ZX1200-B3)
AD: Apply adhesive.
AL: Tighten the two clamp bolts alternately two times to ensure even tightening torque.
G: Apply grease.
L: Apply a non-permanent locking agent.
