16-48 ELECTRICAL SYSTEM

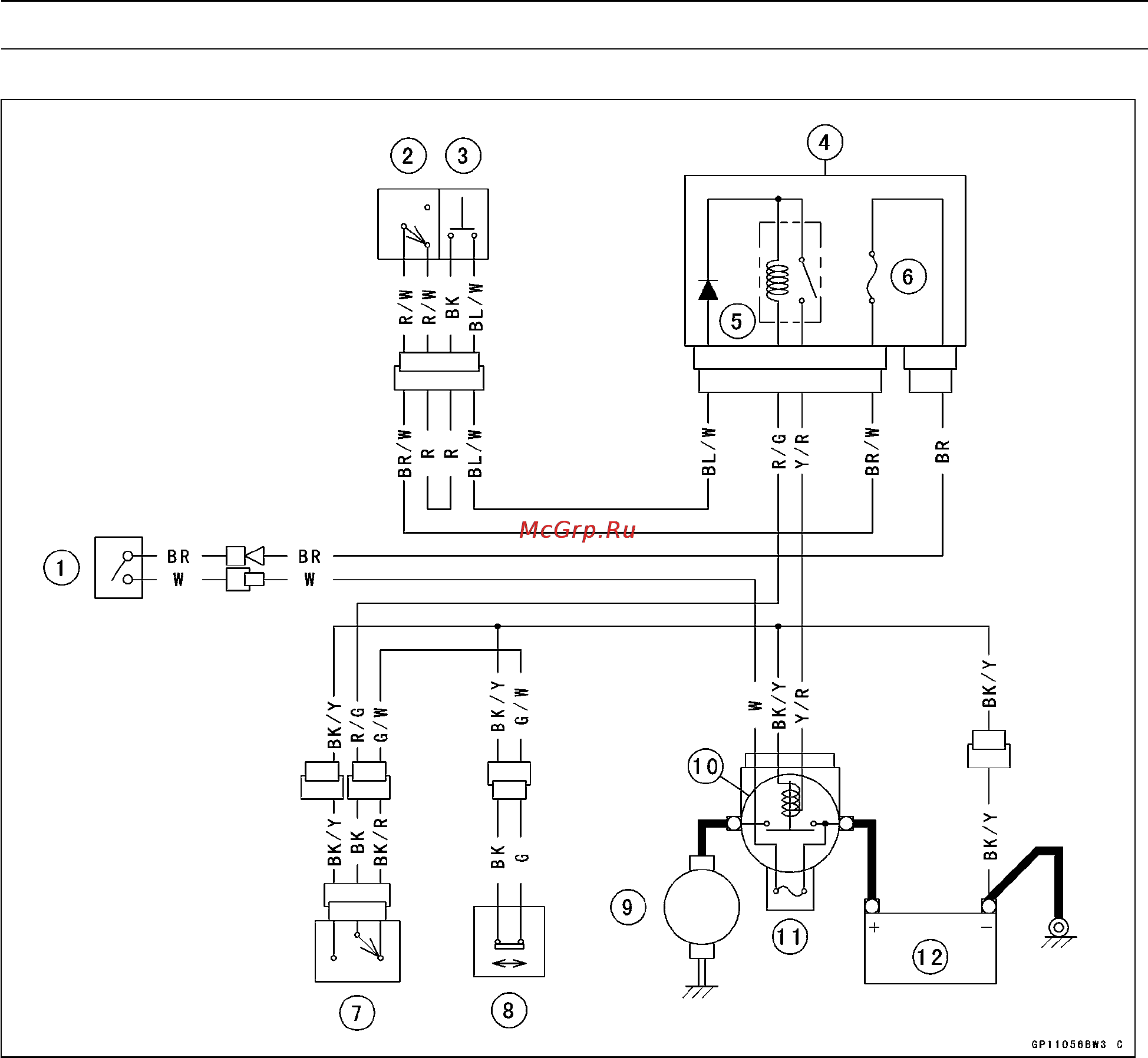

Electric Starter System
ZX1200-B3
1. Ignition Switch
2. Engine Stop Switch
3. Starter Button
4. Junction Box
5. Starter Circuit Relay
6. Ignition Fuse 10 A
7. Starter Lockout Switch
8. Side Stand Switch
9. Starter Motor
10. Starter Relay
11. Main Fuse 30 A
12. Battery
